Crankshaft, Connecting Rods And Pistons

Maserati 4200 Spyder (2005-2007) CC

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - CRANKSHAFT, CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
193169 CRANKSHAFT $2,542.66 To Order
Photo Part No Description Price (each) Stock
193000 UPPER HALF-BEARING $16.34 To Order
193001 UPPER HALF-BEARING $20.64 To Order
193002 UPPER HALF-BEARING $20.64 IN STOCK
Photo Part No Description Price (each) Stock
193003 LOWER HALF-BEARING $14.62 To Order
193004 LOWER HALF-BEARING $16.05 To Order
193005 LOWER HALF-BEARING $16.05 IN STOCK
Photo Part No Description Price (each) Stock
COMPLETESETONLY OIL SCRAPER RING Enquire To Order
179540 UPPER SHIM WASHER $57.14 To Order
179541 UPPER SHIM WASHER $57.14 To Order
Photo Part No Description Price (each) Stock
179538 LOWER SHIM WASHER $33.56 To Order
179537 LOWER SHIM WASHER $57.14 To Order
179536 LOWER SHIM WASHER $57.14 To Order
Photo Part No Description Price (each) Stock
187469 TORSION DAMPER $2,140.84 To Order
Photo Part No Description Price (each) Stock
263683 DAMPER FASTENING WASHER $16.79 To Order
Photo Part No Description Price (each) Stock
196216 Screw For Damper Fixing $84.61 ARRIVING SOON
Photo Part No Description Price (each) Stock
235062 Bearing $36.95 To Order
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $46.04 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $3.19 IN STOCK
Photo Part No Description Price (each) Stock
192402 CONNECTING ROD SHAFT AND CAP ASSEMBLY $324.62 To Order
Photo Part No Description Price (each) Stock
198412 LH SIDE ENGINE PISTON WITH RINGS $280.75 To Order
198410 RH SIDE ENGINE PISTON WITH RINGS $280.75 To Order
Photo Part No Description Price (each) Stock
236497 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
226260 SEAL RING $66.59 To Order
Photo Part No Description Price (each) Stock
COMPLETESETONLY OIL SCRAPER RING Enquire To Order
Photo Part No Description Price (each) Stock
178890 LOCK RING $9.45 To Order
Photo Part No Description Price (each) Stock
175367 PIN $72.87 To Order
Photo Part No Description Price (each) Stock
184909 BUSHING $43.70 To Order
Photo Part No Description Price (each) Stock
177159 CONNECTING ROD TIGHTENING SCREW $52.91 To Order
Photo Part No Description Price (each) Stock
190265 CONNECTING ROD HALF-BEARING $13.33 To Order
188520 CONNECTING ROD HALF-BEARING $6.20 To Order
188521 CONNECTING ROD HALF-BEARING $17.71 To Order
View All

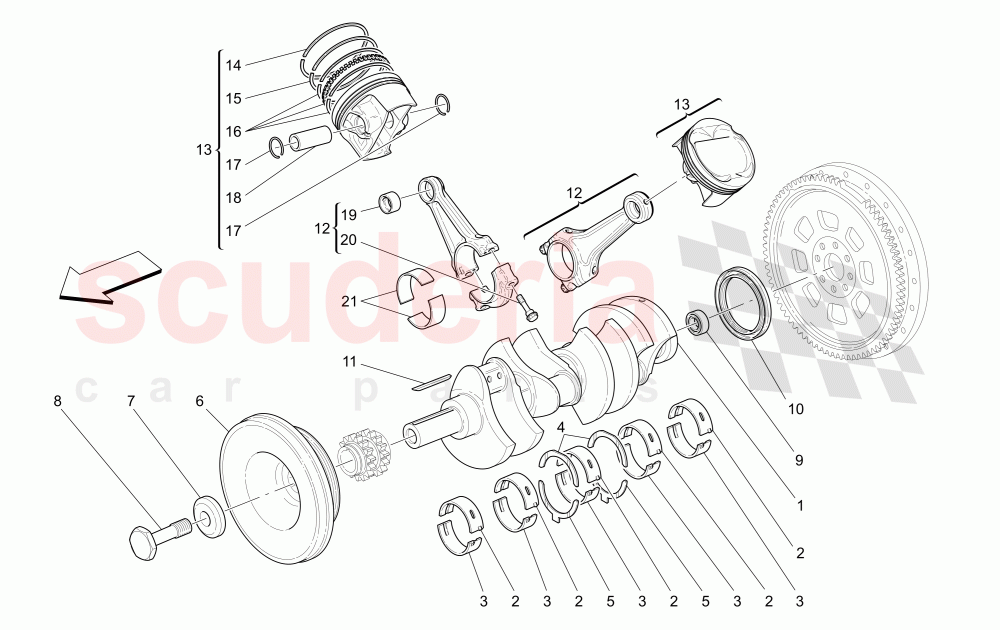

CRANKSHAFT, CONNECTING RODS AND PISTONS of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 193169
CRANKSHAFT 		$2,542.66 (9.6% off) 1
2 193000
UPPER HALF-BEARING
Blue 		$16.34 5
2 193001
UPPER HALF-BEARING
Yellow 		$20.64 5
2 193002
UPPER HALF-BEARING
Green- -Standard
IN STOCK 		$20.64 (12.4% off) 5
3 193003
LOWER HALF-BEARING
Blue 		$14.62 5
3 193004
LOWER HALF-BEARING
Yellow 		$16.05 5
3 193005
LOWER HALF-BEARING
Green- -Standard
IN STOCK 		$16.05 (10.6% off) 5
4 COMPLETESETONLY
OIL SCRAPER RING
Standard 		- 2 Enquire
4 179540
UPPER SHIM WASHER
1st Oversize 		$57.14 (21.6% off) 2
4 179541
UPPER SHIM WASHER
2nd Oversize 		$57.14 (21.6% off) 2
5 179538
LOWER SHIM WASHER
Standard 		$33.56 (13.7% off) 2
5 179537
LOWER SHIM WASHER
1st Oversize 		$57.14 (21.6% off) 2
5 179536
LOWER SHIM WASHER
2nd Oversize 		$57.14 (21.6% off) 2
6 187469
TORSION DAMPER 		$2,140.84 (27.6% off) 1
7 263683
DAMPER FASTENING WASHER 		$16.79 1
8 196216
Screw For Damper Fixing
ARRIVING SOON 		$84.61 1
9 235062
Bearing 		$36.95 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
Supplied also in the crankcase gasket revision kit (cod. 980020004)
IN STOCK 		$46.04 1
11 186201
TAB
IN STOCK 		$3.19 1
12 192402
CONNECTING ROD SHAFT AND CAP ASSEMBLY 		$324.62 (25.1% off) 8
13 198412
LH SIDE ENGINE PISTON WITH RINGS 		$280.75 (13.9% off) 4
13 198410
RH SIDE ENGINE PISTON WITH RINGS 		$280.75 (13.9% off) 4
14 236497
SEAL RING
1st groove 		- 8 Enquire
15 226260
SEAL RING
2nd groove 		$66.59 8
16 COMPLETESETONLY
OIL SCRAPER RING
3nd groove 		- 8 Enquire
17 178890
LOCK RING 		$9.45 16
18 175367
PIN 		$72.87 8
19 184909
BUSHING 		$43.70 8
20 177159
CONNECTING ROD TIGHTENING SCREW 		$52.91 16
21 190265
CONNECTING ROD HALF-BEARING
Yellow 		$13.33 (72% off) 16
21 188520
CONNECTING ROD HALF-BEARING
Brown 		$6.20 (18.6% off) 16
21 188521
CONNECTING ROD HALF-BEARING
Green- -Standard 		$17.71 16
