Maserati 4200 Spyder (2005-2007) CC - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
186356 Water/Oil Exchanger $1,864.33 To Order
Photo Part No Description Price (each) Stock
322664 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
211465 COMPLETE OIL TANK $1,103.91 To Order
Photo Part No Description Price (each) Stock
189116 PLUG $93.40 To Order
Photo Part No Description Price (each) Stock
192510 DIPSTICK $14.97 To Order
Photo Part No Description Price (each) Stock
151684 OIL SUCTION FAN $172.84 To Order
Photo Part No Description Price (each) Stock
111352 THREADED INSERT $16.49 To Order
Photo Part No Description Price (each) Stock
100332 OIL DUCTING FILTER $52.91 To Order
Photo Part No Description Price (each) Stock
125521 O-RING D78.97-8X100 $14.32 IN STOCK
Photo Part No Description Price (each) Stock
11500524 STUD Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
14039614 NUT $1.34 IN STOCK
Photo Part No Description Price (each) Stock
675000691 GASKET $2.10 IN STOCK
675000691 GASKET $2.10 IN STOCK
Photo Part No Description Price (each) Stock
293107 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
186746 THREADED UNION $61.21 To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.59 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $1.81 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
107980 SPACER $2.52 To Order
Photo Part No Description Price (each) Stock
184519 PAD $2.44 IN STOCK
Photo Part No Description Price (each) Stock
107979 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
16104411 NUT $1.56 To Order
Photo Part No Description Price (each) Stock
194456 PIPE FROM TANK TO OIL PUMP $796.46 To Order
194457 PIPE FROM TANK TO OIL PUMP $497.42 To Order
Photo Part No Description Price (each) Stock
109649 GASKET $1.60 IN STOCK
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.59 IN STOCK
186196 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14304824 SCREW $2.15 To Order
14303834 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
186060 PIPE FROM HEAT EXCHANGER TO OIL TANK $237.28 IN STOCK
Photo Part No Description Price (each) Stock
170157 UNION $39.78 To Order
Photo Part No Description Price (each) Stock
184821 BRACKET $13.28 To Order
Photo Part No Description Price (each) Stock
10441890 BRACKET WITH SHEATH $1.17 To Order
Photo Part No Description Price (each) Stock
187713 RETAINING CLIP $5.22 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.09 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
191396 Bracket $11.84 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $2.90 To Order
Photo Part No Description Price (each) Stock
177576 INTERMEDIATE RING $5.86 To Order
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
192326 COMPLETE VENT PIPE $494.45 To Order
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH $1.88 To Order
Photo Part No Description Price (each) Stock
14305024 SCREW $1.56 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
192327 Union $20.98 To Order
Photo Part No Description Price (each) Stock
10284460 GASKET $1.18 IN STOCK
Photo Part No Description Price (each) Stock
231621 Allen Screw M6 x 30 $1.16 To Order
Photo Part No Description Price (each) Stock
186196 SCREW Enquire To Order
231619 SCREW M6 X 22MM $2.59 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREWM6X35 $1.17 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
247146 GASKET Enquire To Order
View All

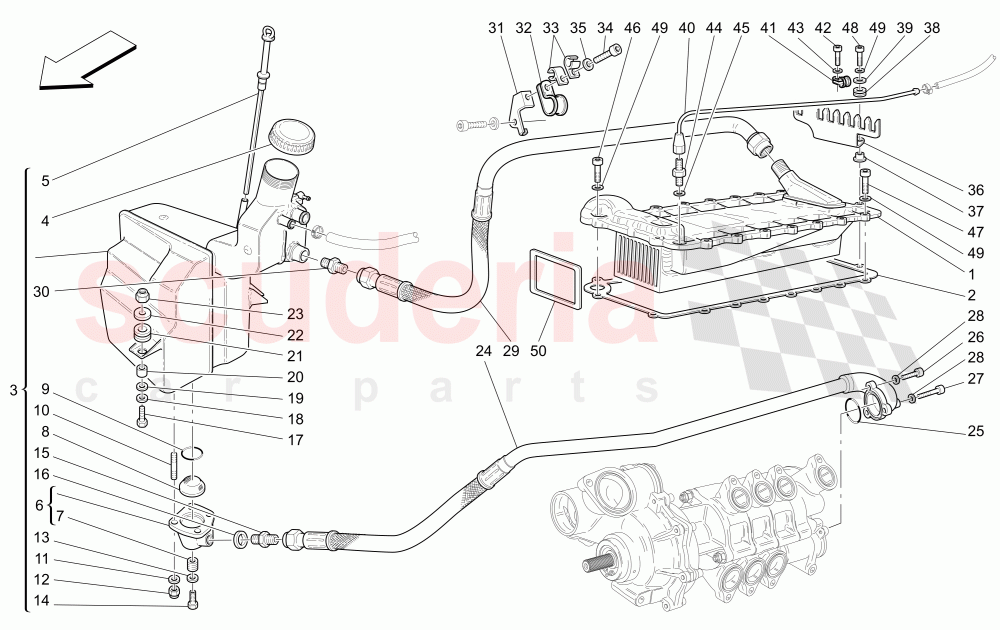

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 186356
Water/Oil Exchanger 		$1,864.33 (14% off) 1
2 322664
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004) 		- 1 Enquire
3 211465
COMPLETE OIL TANK 		$1,103.91 (19.7% off) 1
4 189116
PLUG 		$93.40 (7% off) 1
5 192510
DIPSTICK 		$14.97 (18.6% off) 1
6 151684
OIL SUCTION FAN 		$172.84 1
7 111352
THREADED INSERT 		$16.49 (90.2% off) 1
8 100332
OIL DUCTING FILTER 		$52.91 1
9 125521
O-RING D78.97-8X100
IN STOCK 		$14.32 1
10 11500524
STUD 		- 4 Enquire
11 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5
IN STOCK 		$2.35 4
12 14039614
NUT
IN STOCK 		$1.34 4
13 675000691
GASKET
IN STOCK 		$2.10 1
13 675000691
GASKET
IN STOCK 		$2.10 1
14 293107
THREADED PLUG 		- 1 Enquire
15 186746
THREADED UNION 		$61.21 (10.8% off) 1
16 898271
GASKET 		- 1 Enquire
17 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
IN STOCK 		$2.59 3
18 14496524
WASHER D.8.4 X 17 X 1.6
D. 8.40-17 X1.6
IN STOCK 		$1.81 3
19 127496
WASHER 		$1.09 3
20 107980
SPACER 		$2.52 (62.3% off) 3
21 184519
PAD
IN STOCK 		$2.44 3
22 107979
WASHER 		$1.56 (87.3% off) 3
23 16104411
NUT 		$1.56 2
24 194456
PIPE FROM TANK TO OIL PUMP
Valid for USA and CDN 		$796.46 (12.5% off) 1
24 194457
PIPE FROM TANK TO OIL PUMP
Not for USA and CDN 		$497.42 1
25 109649
GASKET
IN STOCK 		$1.60 1
26 231617
SCREW M6 X 18
Valid for USA and CDN
IN STOCK 		$2.59 2
26 186196
SCREW
Not for USA and CDN 		- 2 Enquire
27 14304824
SCREW
Valid for USA and CDN 		$2.15 1
27 14303834
SCREW
Not for USA and CDN 		- 1 Enquire
28 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4
IN STOCK 		$2.35 3
29 186060
PIPE FROM HEAT EXCHANGER TO OIL TANK
IN STOCK 		$237.28 (43.6% off) 1
30 170157
UNION 		$39.78 (18% off) 1
31 184821
BRACKET 		$13.28 (13% off) 1
32 10441890
BRACKET WITH SHEATH 		$1.17 1
33 187713
RETAINING CLIP
IN STOCK 		$5.22 2
34 248334
SCREW M6 X 14MM
IN STOCK 		$3.09 1
35 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4
IN STOCK 		$2.35 1
36 191396
Bracket
IN STOCK 		$11.84 (13.7% off) 1
37 149707
SPACER 		$2.90 2
38 177576
INTERMEDIATE RING 		$5.86 2
39 12643724
Washer 6.15-18x1.5
D 6,15-18X 1,5
IN STOCK 		$1.42 2
40 192326
COMPLETE VENT PIPE 		$494.45 1
41 10440890
BRACKET WITH SHEATH 		$1.88 1
42 14305024
SCREW 		$1.56 1
43 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4
IN STOCK 		$2.35 1
44 192327
Union 		$20.98 1
45 10284460
GASKET
IN STOCK 		$1.18 1
46 231621
Allen Screw M6 x 30
M 6X30 		$1.16 2
47 186196
SCREW
M 6X25 		- 2 Enquire
47 231619
SCREW M6 X 22MM
M 6X22
IN STOCK 		$2.59 13
48 231622
SCREWM6X35
M 6X35 		$1.17 2
49 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4
IN STOCK 		$2.35 19
50 247146
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004) 		- 1 Enquire
