Name: TRANSMISSION SHAFT
Rating: 4.2 (1 reviews)

View All

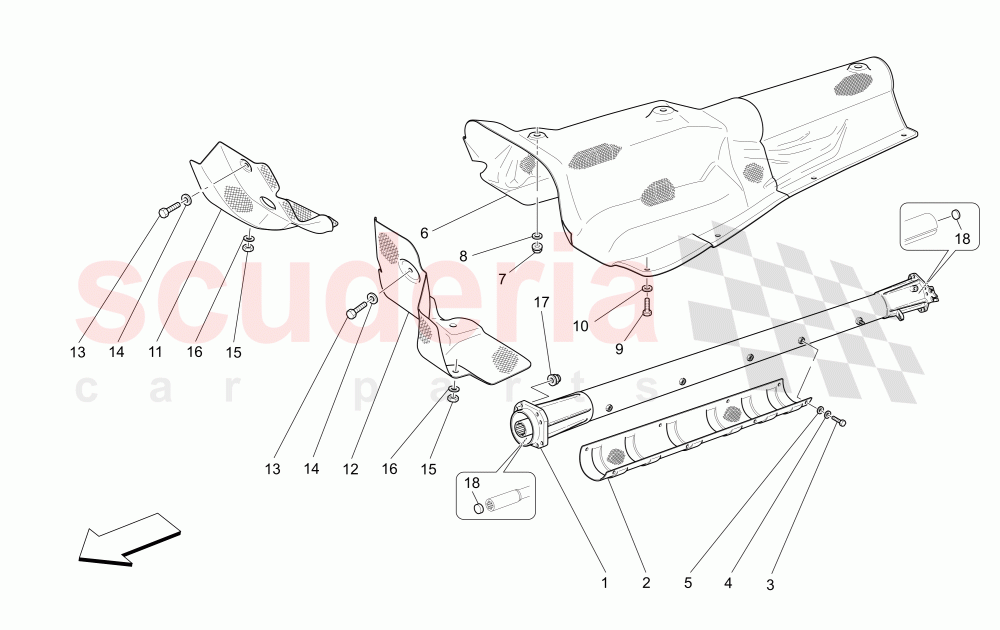

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207086	ENGINE-GEARBOX CONNECTING TUBE	$4,950.06	To Order

Photo	Part No	Description	Price (each)	Stock
	185559	ANTI-HEAT SHIELD	$49.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11635724	SCREW	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER 6.15-15 X 1	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66065500	HEAT SHIELD FOR TUNNEL	$212.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12624124	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12624124	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	66584200	R.H. SHIELD	$43.55	To Order

Photo	Part No	Description	Price (each)	Stock
	66582900	L.H. SHIELD	$43.55	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12624124	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	13831811	NUT	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12624124	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	191902	SPACER	$35.34	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	207086	ENGINE-GEARBOX CONNECTING TUBE	207086 ENGINE-GEARBOX CONNECTING TUBE	$4,950.06	1
2	185559	ANTI-HEAT SHIELD	185559 ANTI-HEAT SHIELD	$49.68 MSRP: ~~63.15~~ (21.3% off)	1
3	11635724	SCREW	11635724 SCREW	$1.39	8
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5 IN STOCK	$2.37	8
5	12644424	WASHER 6.15-15 X 1 IN STOCK	12644424 WASHER 6.15-15 X 1 IN STOCK	$1.46	8
6	66065500	HEAT SHIELD FOR TUNNEL	66065500 HEAT SHIELD FOR TUNNEL	$212.31 MSRP: ~~302.03~~ (29.7% off)	1
7	14039614	NUT IN STOCK	14039614 NUT IN STOCK	$1.34	3
8	12624124	WASHER	12624124 WASHER	$1.57	3
9	10977824	SCREW IN STOCK	10977824 SCREW IN STOCK	$1.39 MSRP: ~~2.19~~ (36.5% off)	8
10	12624124	WASHER	12624124 WASHER	$1.57	8
11	66584200	R.H. SHIELD	66584200 R.H. SHIELD	$43.55 MSRP: ~~55.23~~ (21.1% off)	1
12	66582900	L.H. SHIELD	66582900 L.H. SHIELD	$43.55 MSRP: ~~55.23~~ (21.1% off)	1
13	10977824	SCREW IN STOCK	10977824 SCREW IN STOCK	$1.39 MSRP: ~~2.19~~ (36.5% off)	4
14	12624124	WASHER	12624124 WASHER	$1.57	4
15	13831811	NUT	13831811 NUT	$1.76	2
16	12624124	WASHER	12624124 WASHER	$1.57	2
17	14059421	NUT	14059421 NUT	$1.64	8
18	191902	SPACER	191902 SPACER	$35.34	2

Transmission Shaft

Maserati GranSport Coupe (2005-2007)
