Name: GEARBOX HOUSINGS (Includes gearbox oil radiator Available with: "GranSport MC Victory" Version)
Rating: 4.6 (1 reviews)

GEARBOX HOUSINGS (Includes gearbox oil radiator Available with: "GranSport MC Victory" Version) of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - GEARBOX HOUSINGS (Includes gearbox oil radiator Available with: "GranSport MC Victory" Version)

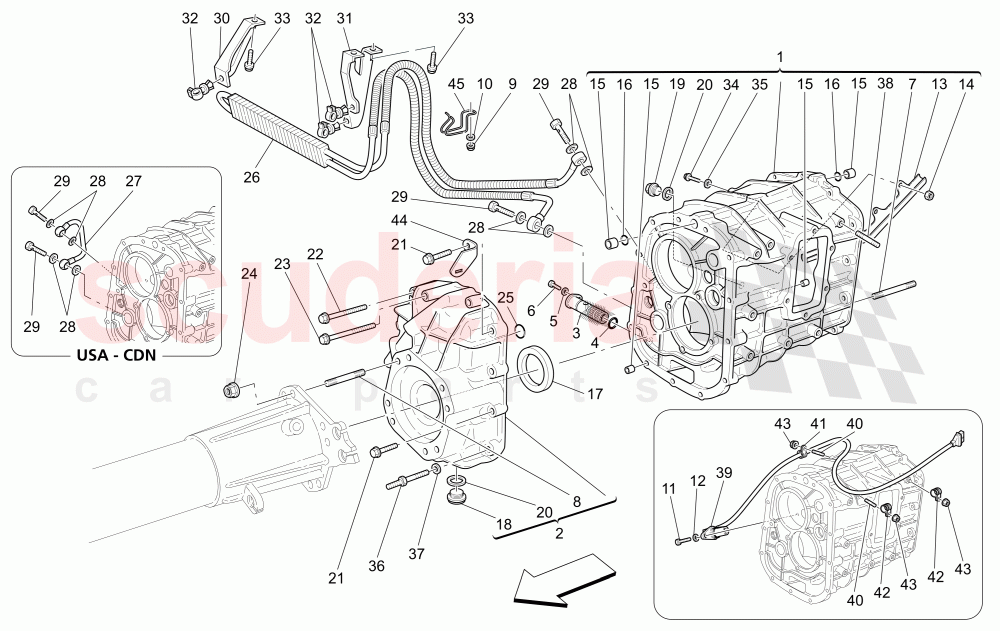

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	192736	COMPLETE GEARBOX	$743.55	To Order

Photo	Part No	Description	Price (each)	Stock
	192734	FRONT COVER ASSEMBLY	$420.53	To Order

Photo	Part No	Description	Price (each)	Stock
	182416	GEARBOX OIL FILTER	$105.63	To Order

Photo	Part No	Description	Price (each)	Stock
	182119	GEARBOX OIL FILTER O-RING	$5.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11199277	WASHER	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD	$4.32	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14058311	NUT	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	12638178	Washer	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185714	OIL TILE	$16.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	150957	CENTERING DOWEL	$15.76	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	O.R. GASKET	$1.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185719	OIL SEAL	$43.49	To Order

Photo	Part No	Description	Price (each)	Stock
	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	$25.76	To Order

Photo	Part No	Description	Price (each)	Stock
	10305111	THREADED PLUG	$18.60	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$1.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287734	SCREW	$10.87	To Order

Photo	Part No	Description	Price (each)	Stock
	16288121	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14453581	O.R. GASKET	$3.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	214366	OIL RADIATOR COMPLETE WITH PIPES	$447.18	To Order

Photo	Part No	Description	Price (each)	Stock
	211710	UNION FOR OIL RECYCLING	$28.52	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	277407	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187890	COIL SUPPORTING R.H. BRACKET	$10.41	To Order

Photo	Part No	Description	Price (each)	Stock
	187891	COIL SUPPORTING L.H. BRACKET	$11.17	To Order

Photo	Part No	Description	Price (each)	Stock
	181756	ELEMENT FOR FIXING QUICK	$4.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW M6 X 20	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	188077	STUD	$7.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$1.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500024	STUD	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	168729	ELECTRO	$222.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	STUD	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	188004	CONNECTOR SUPPORT BRACKET	$17.26	To Order

Photo	Part No	Description	Price (each)	Stock
	189350	CLIP	$4.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	210144	GEARBOX ASSEMBLY	210144 GEARBOX ASSEMBLY	$13,212.75	1
1	192736	COMPLETE GEARBOX	192736 COMPLETE GEARBOX	$743.55 MSRP: ~~1,123.47~~ (33.8% off)	1
2	192734	FRONT COVER ASSEMBLY	192734 FRONT COVER ASSEMBLY	$420.53 MSRP: ~~568.51~~ (26% off)	1
3	182416	GEARBOX OIL FILTER	182416 GEARBOX OIL FILTER	$105.63	1
4	182119	GEARBOX OIL FILTER O-RING IN STOCK	182119 GEARBOX OIL FILTER O-RING IN STOCK	$5.42	1
5	11199277	WASHER	11199277 WASHER	$3.02	1
6	10977624	SCREW	10977624 SCREW	$1.85	1
7	13543624	STUD	13543624 STUD	$4.32	2
8	13546334	STUD	13546334 STUD	$2.52	8
9	14058311	NUT	14058311 NUT Not for USA and CDN	$1.56	1
10	12638178	Washer IN STOCK	12638178 Washer D. 5,15 -11X 1 Not for USA and CDN IN STOCK	$1.89	1
11	10902224	SCREW M6 X 16	10902224 SCREW M6 X 16	$1.56	1
12	11194379	WASHER	11194379 WASHER	-	1	Enquire
13	185714	OIL TILE	185714 OIL TILE	$16.23	1
14	14039614	NUT IN STOCK	14039614 NUT IN STOCK	$1.34	2
15	150957	CENTERING DOWEL	150957 CENTERING DOWEL	$15.76	4
16	14456981	O.R. GASKET IN STOCK	14456981 O.R. GASKET IN STOCK	$1.83	2
17	185719	OIL SEAL	185719 OIL SEAL	$43.49 MSRP: ~~51.07~~ (14.8% off)	1
18	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	183962 OIL DRAIN PLUG MAGNETIC 22X1.5	$25.76	1
19	10305111	THREADED PLUG	10305111 THREADED PLUG	$18.60	1
20	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$1.83	2
21	16287524	SCREW	16287524 SCREW	-	5	Enquire
22	16287734	SCREW	16287734 SCREW	$10.87	3
23	16288121	SCREW	16288121 SCREW	$4.03 MSRP: ~~5.35~~ (24.7% off)	1
24	14059421	NUT	14059421 NUT	$1.63	8
25	14453581	O.R. GASKET IN STOCK	14453581 O.R. GASKET IN STOCK	$3.76 MSRP: ~~3.88~~ (3.1% off)	1
26	214366	OIL RADIATOR COMPLETE WITH PIPES	214366 OIL RADIATOR COMPLETE WITH PIPES Not for USA and CDN	$447.18	1
27	211710	UNION FOR OIL RECYCLING	211710 UNION FOR OIL RECYCLING Valid for USA and CDN	$28.52	1
28	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$1.18	4
29	277407	UNION	277407 UNION	-	2	Enquire
30	187890	COIL SUPPORTING R.H. BRACKET	187890 COIL SUPPORTING R.H. BRACKET Not for USA and CDN	$10.41 MSRP: ~~12.16~~ (14.4% off)	1
31	187891	COIL SUPPORTING L.H. BRACKET	187891 COIL SUPPORTING L.H. BRACKET Not for USA and CDN	$11.17 MSRP: ~~12.94~~ (13.7% off)	1
32	181756	ELEMENT FOR FIXING QUICK	181756 ELEMENT FOR FIXING QUICK Not for USA and CDN	$4.14 MSRP: ~~4.57~~ (9.4% off)	3
33	11730624	SCREW	11730624 SCREW Not for USA and CDN	$2.52	3
34	16286121	SCREW M6 X 20	16286121 SCREW M6 X 20	$2.52	2
35	10297760	GASKET	10297760 GASKET	$1.17	2
36	188077	STUD	188077 STUD	$7.41 MSRP: ~~8.37~~ (11.5% off)	4
37	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 D. 8,40-15X 0,8 IN STOCK	$1.42	4
38	11500024	STUD	11500024 STUD	$2.52	1
39	168729	ELECTRO	168729 ELECTRO	$222.39 MSRP: ~~241.36~~ (7.9% off)	1
40	11500024	STUD	11500024 STUD	$2.52	2
41	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$8.08	1
42	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$8.08	2
43	14039614	NUT IN STOCK	14039614 NUT M6 IN STOCK	$1.34	3
44	188004	CONNECTOR SUPPORT BRACKET	188004 CONNECTOR SUPPORT BRACKET	$17.26 MSRP: ~~17.60~~ (1.9% off)	1
45	189350	CLIP	189350 CLIP Not for USA and CDN	$4.70 MSRP: ~~5.35~~ (12.1% off)	1

Gearbox Housings (Includes Gearbox Oil Radiator Available With: "gransport Mc Victory" Version)

Maserati GranSport Coupe (2005-2007)

Maserati GranSport Coupe (2005-2007) - GEARBOX HOUSINGS (Includes gearbox oil radiator Available with: "GranSport MC Victory" Version)

Add to Shopping Cart
