FRICTION DISCS AND HOUSING FOR F1 GEARBOX of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - FRICTION DISCS AND HOUSING FOR F1 GEARBOX

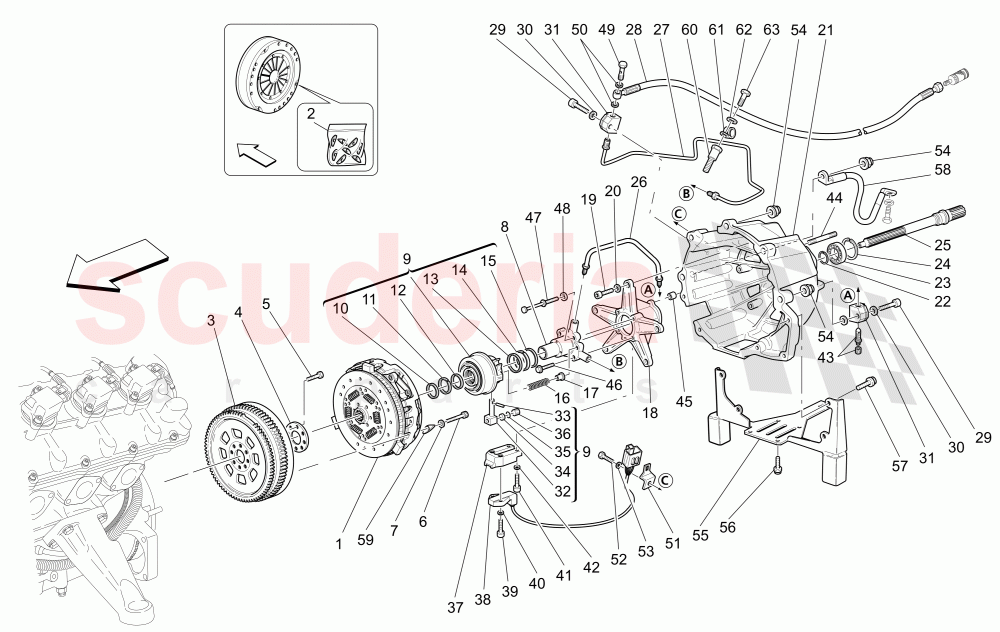

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196335	Clutch With Double Tab	$1,531.43	To Order

Photo	Part No	Description	Price (each)	Stock
	980001166	CLUTCH BALANCING KIT	$2,673.66	To Order

Photo	Part No	Description	Price (each)	Stock
	230426	Engine Flywheel Assembly	$846.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	215963	FLYWHEEL FASTENING WASHER	$6.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	201755	Bolt Hex Head M10 x 1.25	$3.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185206	Screw M6 x 60	$4.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182952	Bearing Support Flange	$598.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	234943	COMPLETE THRUST BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181837	Oil Seal Rings D.33	$31.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170416	Ring	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	181838	Seal Ring	$30.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181828	SEALING RING D.44	$37.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154507	THROW OUT BEARING SEAL D.44	$6.82	IN STOCK
	154507	THROW OUT BEARING SEAL D.44	$6.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181836	Oil Seal Rings D.44	$35.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155207	PRELOAD SPRING	$19.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155206	SPACER FOR SPRING	$26.28	To Order

Photo	Part No	Description	Price (each)	Stock
	184970	CLUTCH CONTROL FLANGE SUPPORT	$712.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	$5.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	184763	CLUTCH HOUSING CAP	$2,458.16	To Order

Photo	Part No	Description	Price (each)	Stock
	144511	LOCK RING	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	174470	GROOVED BALL BEARING D.35-72	$57.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182963	LOCK RING	$7.55	To Order

Photo	Part No	Description	Price (each)	Stock
	182587	CLUTCH SHAFT	$304.20	To Order

Photo	Part No	Description	Price (each)	Stock
	182584	CLUTCH OIL BLEED PIPE	$15.50	To Order

Photo	Part No	Description	Price (each)	Stock
	182583	CLUTCH OIL DELIVERY PIPE	$41.98	To Order

Photo	Part No	Description	Price (each)	Stock
	186355	CLUTCH OIL HOSE	$745.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14305434	SCREWM6X25	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240774	TWO-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166676	PIN	$67.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14604170	FLEXIBLE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201935	CLUTCH SENSOR KIT - F1 GEARBOX	$341.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	165658	O.R. GASKET	$15.62	To Order

Photo	Part No	Description	Price (each)	Stock
	167802	PLUG	$59.83	To Order

Photo	Part No	Description	Price (each)	Stock
	184900	F1 SENSOR SUPPORT	$350.56	To Order

Photo	Part No	Description	Price (each)	Stock
	201935	CLUTCH SENSOR KIT - F1 GEARBOX	$341.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303224	SCREW	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	$20.48	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	$4.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519378	SPRING WASHER 5MM	$1.75	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEEDER SCREW	$41.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREWM6X50	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	182955	END STROKE STUD	$27.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171454	FILLER NECK	$107.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	COPPER WASHER D.12- 16 X 1.5MM	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170925	BRACKET FOR CONNECTOR FIXING	$7.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10979414	SCREW	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	187799	EXHAUST FRONT SUPPORT	$183.86	To Order
	191399	EXHAUST FRONT SUPPORT	$180.64	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16288121	SCREW	$4.01	To Order
	16297721	SCREW	$2.67	To Order

Photo	Part No	Description	Price (each)	Stock
	182225	CABLE FOR ENGINE-FRAME EARTH	$42.31	To Order

Photo	Part No	Description	Price (each)	Stock
	191347	BALANCING MASS	$12.60	To Order
	191395	BALANCING MASS	$114.88	IN STOCK
	191343	BALANCING MASS	$13.19	IN STOCK

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	190876	STUD	$17.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	10979414	SCREW	$1.55	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196335	Clutch With Double Tab	196335 Clutch With Double Tab	$1,531.43 MSRP: ~~1,723.64~~ (11.2% off)	1
2	980001166	CLUTCH BALANCING KIT	980001166 CLUTCH BALANCING KIT	$2,673.66	1
3	230426	Engine Flywheel Assembly IN STOCK	230426 Engine Flywheel Assembly IN STOCK	$846.16 MSRP: ~~1,246.09~~ (32.1% off)	1
4	215963	FLYWHEEL FASTENING WASHER IN STOCK	215963 FLYWHEEL FASTENING WASHER IN STOCK	$6.87	1
5	201755	Bolt Hex Head M10 x 1.25 IN STOCK	201755 Bolt Hex Head M10 x 1.25 IN STOCK	$3.13	8
6	185206	Screw M6 x 60 IN STOCK	185206 Screw M6 x 60 IN STOCK	$4.71	9
7	11194379	WASHER	11194379 WASHER	-	9	Enquire
8	182952	Bearing Support Flange IN STOCK	182952 Bearing Support Flange IN STOCK	$598.74 MSRP: ~~1,044.05~~ (42.7% off)	1
9	234943	COMPLETE THRUST BEARING	234943 COMPLETE THRUST BEARING	-	1	Enquire
10	181837	Oil Seal Rings D.33 IN STOCK	181837 Oil Seal Rings D.33 IN STOCK	$31.53	1
11	170416	Ring	170416 Ring	$3.24	1
12	181838	Seal Ring IN STOCK	181838 Seal Ring IN STOCK	$30.63	1
13	181828	SEALING RING D.44 IN STOCK	181828 SEALING RING D.44 IN STOCK	$37.30	1
14	154507	THROW OUT BEARING SEAL D.44 IN STOCK	154507 THROW OUT BEARING SEAL D.44 IN STOCK	$6.82	1
14	154507	THROW OUT BEARING SEAL D.44 IN STOCK	154507 THROW OUT BEARING SEAL D.44 As an alternative IN STOCK	$6.82	1
15	181836	Oil Seal Rings D.44 IN STOCK	181836 Oil Seal Rings D.44 IN STOCK	$35.05	1
16	155207	PRELOAD SPRING IN STOCK	155207 PRELOAD SPRING IN STOCK	$19.11	2
17	155206	SPACER FOR SPRING	155206 SPACER FOR SPRING	$26.28	2
18	184970	CLUTCH CONTROL FLANGE SUPPORT	184970 CLUTCH CONTROL FLANGE SUPPORT	$712.77 MSRP: ~~1,009.66~~ (29.4% off)	1
19	14305334	SCREW	14305334 SCREW	$5.74	5
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	$2.34	5
21	184763	CLUTCH HOUSING CAP	184763 CLUTCH HOUSING CAP	$2,458.16 MSRP: ~~3,608.76~~ (31.9% off)	1
22	144511	LOCK RING	144511 LOCK RING	$2.54	1
23	174470	GROOVED BALL BEARING D.35-72 IN STOCK	174470 GROOVED BALL BEARING D.35-72 IN STOCK	$57.46	1
24	182963	LOCK RING	182963 LOCK RING	$7.55	1
25	182587	CLUTCH SHAFT	182587 CLUTCH SHAFT	$304.20 MSRP: ~~320.16~~ (5% off)	1
26	182584	CLUTCH OIL BLEED PIPE	182584 CLUTCH OIL BLEED PIPE	$15.50 MSRP: ~~18.82~~ (17.6% off)	1
27	182583	CLUTCH OIL DELIVERY PIPE	182583 CLUTCH OIL DELIVERY PIPE	$41.98 MSRP: ~~50.98~~ (17.7% off)	1
28	186355	CLUTCH OIL HOSE	186355 CLUTCH OIL HOSE	$745.33 MSRP: ~~1,039.39~~ (28.3% off)	1
29	14305434	SCREWM6X25	14305434 SCREWM6X25 M6X25	$1.37	2
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	$2.34	2
31	240774	TWO-WAY UNION	240774 TWO-WAY UNION	-	2	Enquire
32	166676	PIN IN STOCK	166676 PIN IN STOCK	$67.73	1
33	14604170	FLEXIBLE PIN	14604170 FLEXIBLE PIN	-	1	Enquire
34	201935	CLUTCH SENSOR KIT - F1 GEARBOX IN STOCK	201935 CLUTCH SENSOR KIT - F1 GEARBOX IN STOCK	$341.77 MSRP: ~~619.12~~ (44.8% off)	1
35	165658	O.R. GASKET	165658 O.R. GASKET	$15.62	1
36	167802	PLUG	167802 PLUG	$59.83	1
37	184900	F1 SENSOR SUPPORT	184900 F1 SENSOR SUPPORT	$350.56 MSRP: ~~512.47~~ (31.6% off)	1
38	201935	CLUTCH SENSOR KIT - F1 GEARBOX IN STOCK	201935 CLUTCH SENSOR KIT - F1 GEARBOX IN STOCK	$341.77 MSRP: ~~619.12~~ (44.8% off)	1
39	14303224	SCREW	14303224 SCREW	$0.90	2
40	10519224	WASHER	10519224 WASHER	$20.48	2
41	14304424	SCREW IN STOCK	14304424 SCREW IN STOCK	$4.01	2
42	10519378	SPRING WASHER 5MM	10519378 SPRING WASHER 5MM	$1.75	2
43	152954	BLEEDER SCREW IN STOCK	152954 BLEEDER SCREW IN STOCK	$41.18	1
44	13546334	STUD	13546334 STUD	$2.51	8
45	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.76	2
46	231625	SCREWM6X50	231625 SCREWM6X50	$2.51	2
47	182955	END STROKE STUD IN STOCK	182955 END STROKE STUD IN STOCK	$27.69	2
48	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5 IN STOCK	$2.34	2
49	171454	FILLER NECK	171454 FILLER NECK	$107.51	1
50	10261060	COPPER WASHER D.12- 16 X 1.5MM IN STOCK	10261060 COPPER WASHER D.12- 16 X 1.5MM IN STOCK	$1.22	2
51	170925	BRACKET FOR CONNECTOR FIXING	170925 BRACKET FOR CONNECTOR FIXING	$7.37	1
52	10979414	SCREW	10979414 SCREW	$1.55	1
53	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5 IN STOCK	$2.34	1
54	14059421	NUT	14059421 NUT	$1.62	7
55	187799	EXHAUST FRONT SUPPORT	187799 EXHAUST FRONT SUPPORT Not for USA, CDN, J, AUS and cars GB opt. japan version	$183.86 MSRP: ~~245.02~~ (25% off)	1
55	191399	EXHAUST FRONT SUPPORT	191399 EXHAUST FRONT SUPPORT Valid for USA, CDN, J, AUS and cars GB opt. japan version	$180.64 MSRP: ~~239.84~~ (24.7% off)	1
56	11730624	SCREW	11730624 SCREW	$2.51	4
57	16288121	SCREW	16288121 SCREW	$4.01 MSRP: ~~5.35~~ (25% off)	1
57	16297721	SCREW	16297721 SCREW	$2.67 MSRP: ~~4.57~~ (41.6% off)	2
58	182225	CABLE FOR ENGINE-FRAME EARTH	182225 CABLE FOR ENGINE-FRAME EARTH	$42.31	1
59	191347	BALANCING MASS	191347 BALANCING MASS Grams 19- -As necessary	$12.60 MSRP: ~~16.05~~ (21.5% off)	-
59	191395	BALANCING MASS IN STOCK	191395 BALANCING MASS Grams 20- -As necessary IN STOCK	$114.88 MSRP: ~~164.96~~ (30.4% off)	-
59	191343	BALANCING MASS IN STOCK	191343 BALANCING MASS Grams 15- -As necessary IN STOCK	$13.19 MSRP: ~~16.74~~ (21.2% off)	-
59	191344	BALANCING MASS	191344 BALANCING MASS Grams 16- -As necessary	$114.88 MSRP: ~~164.96~~ (30.4% off)	-
59	191345	BALANCING MASS	191345 BALANCING MASS Grams 17- -As necessary	$15.50 MSRP: ~~19.84~~ (21.9% off)	-
59	191346	BALANCING MASS	191346 BALANCING MASS Grams 18- -As necessary	$15.50 MSRP: ~~19.84~~ (21.9% off)	-
59	191340	BALANCING MASS	191340 BALANCING MASS Grams 12- -As necessary	$58.64 MSRP: ~~76.09~~ (22.9% off)	-
59	191341	BALANCING MASS	191341 BALANCING MASS Grams 13- -As necessary	$13.19 MSRP: ~~16.74~~ (21.2% off)	-
59	191342	BALANCING MASS	191342 BALANCING MASS Grams 14- -As necessary	$122.74 MSRP: ~~177.73~~ (30.9% off)	-
59	191337	BALANCING MASS	191337 BALANCING MASS Grams 9- -As necessary	$52.36 MSRP: ~~67.81~~ (22.8% off)	-
59	191338	BALANCING MASS IN STOCK	191338 BALANCING MASS Grams 10- -As necessary IN STOCK	$51.86 MSRP: ~~76.09~~ (31.8% off)	-
59	191339	BALANCING MASS	191339 BALANCING MASS Grams 11- -As necessary	$12.60 MSRP: ~~16.05~~ (21.5% off)	-
59	191334	BALANCING MASS	191334 BALANCING MASS Grams 6- -As necessary	$23.96 MSRP: ~~30.54~~ (21.5% off)	-
59	191335	BALANCING MASS	191335 BALANCING MASS Grams 7- -As necessary	$28.52 MSRP: ~~36.58~~ (22% off)	-
59	191336	BALANCING MASS	191336 BALANCING MASS Grams 8- -As necessary	$58.50 MSRP: ~~85.93~~ (31.9% off)	-
59	191329	BALANCING MASS	191329 BALANCING MASS Grams 1- -As necessary	$35.87 MSRP: ~~46.42~~ (22.7% off)	-
59	191330	BALANCING MASS	191330 BALANCING MASS Grams 2- -As necessary	$40.47 MSRP: ~~59.36~~ (31.8% off)	-
59	191331	BALANCING MASS	191331 BALANCING MASS Grams 4- -As necessary	$42.88 MSRP: ~~55.56~~ (22.8% off)	-
59	191333	BALANCING MASS	191333 BALANCING MASS Grams 5- -As necessary	$11.99 MSRP: ~~15.27~~ (21.5% off)	-
60	190876	STUD	190876 STUD	$17.49 MSRP: ~~24.33~~ (28.1% off)	1
61	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$8.04	1
62	127494	WASHER	127494 WASHER	$1.22	1
63	10979414	SCREW	10979414 SCREW	$1.55	1
