Brakes And Clutch Hydraulic Controls

Maserati 4200 Coupe (2005-2007) CC

Find Your Part

Maserati 4200 Coupe (2005-2007) CC - BRAKES AND CLUTCH HYDRAULIC CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
195560 BRAKE SERVO ASSEMBLY $896.24 To Order
196150 BRAKE SERVO ASSEMBLY $473.10 To Order
Photo Part No Description Price (each) Stock
147985 NUT $1.58 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
367402309 GASKET $2.28 To Order
Photo Part No Description Price (each) Stock
193186 VACUUM VALVE $9.49 To Order
Photo Part No Description Price (each) Stock
262109 COLLAR $2.42 To Order
Photo Part No Description Price (each) Stock
184753 CLUTCH PUMP $329.33 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $2.17 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.44 IN STOCK
Photo Part No Description Price (each) Stock
197130 BRAKE LIQUID PIPE $50.78 To Order
197127 BRAKE LIQUID PIPE $54.36 To Order
Photo Part No Description Price (each) Stock
13432070 Screw Collar D15.7mm $1.18 IN STOCK
Photo Part No Description Price (each) Stock
189061 CLUTCH CONTROL TUBE $65.36 To Order
181769 CLUTCH CONTROL TUBE $381.35 To Order
Photo Part No Description Price (each) Stock
302220611 RUBBER HOSE $32.03 To Order
Photo Part No Description Price (each) Stock
980138133 BRAKE PUMP $923.77 To Order
Photo Part No Description Price (each) Stock
980138134 BRAKE PUMP RUBBER $7.52 To Order
Photo Part No Description Price (each) Stock
197024 OIL TANK $711.34 To Order
Photo Part No Description Price (each) Stock
980138135 OIL TANK PLUG $27.85 To Order
Photo Part No Description Price (each) Stock
980138136 UNION $23.35 To Order
Photo Part No Description Price (each) Stock
980138137 GASKET $12.01 To Order
View All

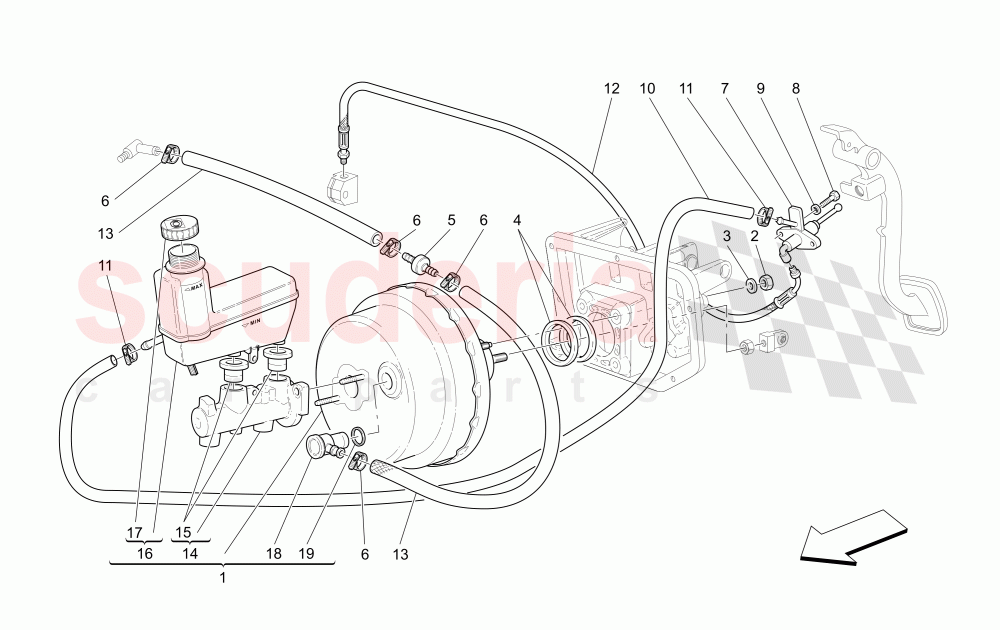

BRAKES AND CLUTCH HYDRAULIC CONTROLS of Maserati Maserati 4200 Coupe (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 195560
BRAKE SERVO ASSEMBLY
Not for F1 		$896.24 1
1 196150
BRAKE SERVO ASSEMBLY
Valid for F1 		$473.10 (21.1% off) 1
2 147985
NUT 		$1.58 4
3 84653800
WASHER 		- 4 Enquire
4 367402309
GASKET 		$2.28 (2.1% off) 2
5 193186
VACUUM VALVE 		$9.49 (65.8% off) 1
6 262109
COLLAR 		$2.42 4
7 184753
CLUTCH PUMP
Not for F1 		$329.33 (22% off) 1
8 16043634
SCREW
Not for F1
IN STOCK 		$2.17 2
9 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 Not for F1
IN STOCK 		$1.44 2
10 197130
BRAKE LIQUID PIPE
Not for F1- -Valid for RHD 		$50.78 1
10 197127
BRAKE LIQUID PIPE
Not for F1- -Not for RHD 		$54.36 1
11 13432070
Screw Collar D15.7mm
Not for F1
IN STOCK 		$1.18 2
12 189061
CLUTCH CONTROL TUBE
Not for F1- -Valid for RHD 		$65.36 (17.2% off) 1
12 181769
CLUTCH CONTROL TUBE
Not for F1- -Not for RHD 		$381.35 (17.2% off) 1
13 302220611
RUBBER HOSE
Supplied in meters- -(Minimum quantity 1m. or multiples) 		$32.03 (16.5% off) -
14 980138133
BRAKE PUMP 		$923.77 (22.4% off) 1
15 980138134
BRAKE PUMP RUBBER 		$7.52 (10.2% off) 2
16 197024
OIL TANK
Not for F1 		$711.34 1
17 980138135
OIL TANK PLUG 		$27.85 (13.2% off) 1
18 980138136
UNION 		$23.35 (14.9% off) 1
19 980138137
GASKET 		$12.01 (12.5% off) 1
