Crankshaft, Connecting Rods And Pistons

Maserati 4200 Coupe (2005-2007) CC

Find Your Part

Maserati 4200 Coupe (2005-2007) CC - CRANKSHAFT, CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
193169 CRANKSHAFT $2,542.66 To Order
227087 CRANKSHAFT $1,378.09 To Order
Photo Part No Description Price (each) Stock
286834 Upper Main Half-Bearing Green $39.26 IN STOCK
193002 UPPER HALF-BEARING $20.64 IN STOCK
286833 UPPER HALF-BEARING $15.05 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
193003 LOWER HALF-BEARING $14.62 To Order
286838 LOWER HALF-BEARING $175.60 IN STOCK
193005 LOWER HALF-BEARING $16.05 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
196648 UPPER SHIM WASHER $511.39 To Order
COMPLETESETONLY OIL SCRAPER RING Enquire To Order
201224 UPPER SHIM WASHER $213.07 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
201226 LOWER SHIM WASHER $213.07 To Order
179536 LOWER SHIM WASHER $57.14 To Order
201225 LOWER SHIM WASHER $213.07 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
187469 TORSION DAMPER $2,140.84 To Order
Photo Part No Description Price (each) Stock
263683 DAMPER FASTENING WASHER $16.79 To Order
Photo Part No Description Price (each) Stock
196216 Screw For Damper Fixing $84.61 ARRIVING SOON
Photo Part No Description Price (each) Stock
235062 Bearing $36.95 To Order
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $46.04 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $3.19 IN STOCK
Photo Part No Description Price (each) Stock
192402 CONNECTING ROD SHAFT AND CAP ASSEMBLY $324.62 To Order
244887 CONNECTING ROD SHAFT AND CAP ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
198410 RH SIDE ENGINE PISTON WITH RINGS $280.75 To Order
198412 LH SIDE ENGINE PISTON WITH RINGS $280.75 To Order
Photo Part No Description Price (each) Stock
236497 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
226260 SEAL RING $66.59 To Order
Photo Part No Description Price (each) Stock
COMPLETESETONLY OIL SCRAPER RING Enquire To Order
Photo Part No Description Price (each) Stock
178890 LOCK RING $9.45 To Order
Photo Part No Description Price (each) Stock
175367 PIN $72.87 To Order
Photo Part No Description Price (each) Stock
184909 BUSHING $43.70 To Order
234861 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
177159 CONNECTING ROD TIGHTENING SCREW $52.91 To Order
215530 CONNECTING ROD TIGHTENING SCREW $73.50 To Order
Photo Part No Description Price (each) Stock
204292 CONNECTING ROD HALF-BEARING $39.68 To Order
204290 CONNECTING ROD HALF BEARING RED $53.00 IN STOCK
188520 CONNECTING ROD HALF-BEARING $6.20 To Order
...and 3 more part variants. See table on right for more details.
View All

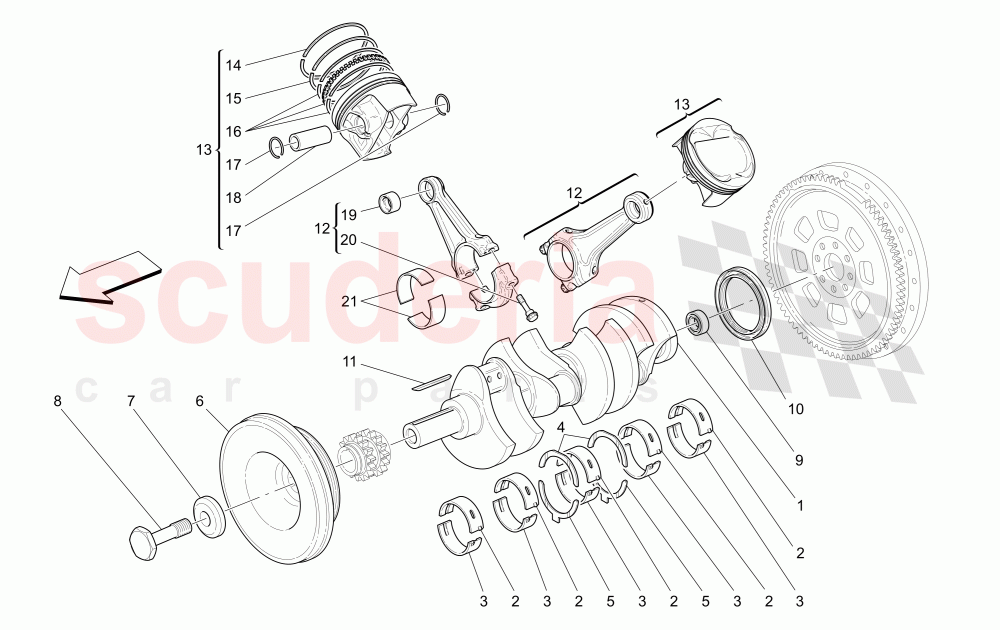

CRANKSHAFT, CONNECTING RODS AND PISTONS of Maserati Maserati 4200 Coupe (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 193169
CRANKSHAFT
Valid till engine Nr. 107296 		$2,542.66 (9.6% off) 1
1 227087
CRANKSHAFT
Valid from engine Nr. 107297 		$1,378.09 1
2 286834
Upper Main Half-Bearing Green
Green- -Standard- -Valid from engine Nr. 107297
IN STOCK 		$39.26 5
2 193002
UPPER HALF-BEARING
Green- -Standard- -Valid till engine Nr. 107296
IN STOCK 		$20.64 (12.4% off) 5
2 286833
UPPER HALF-BEARING
Yellow- -Valid from engine Nr. 107297 		$15.05 5
2 193001
UPPER HALF-BEARING
Yellow- -Valid till engine Nr. 107296 		$20.64 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue- -Valid from engine Nr. 107297 		$23.73 5
2 193000
UPPER HALF-BEARING
Blue- -Valid till engine Nr. 107296 		$16.34 5
3 193003
LOWER HALF-BEARING
Blue- -Valid till engine Nr. 107296 		$14.62 5
3 286838
LOWER HALF-BEARING
Green- -Standard- -Valid from engine Nr. 107297
IN STOCK 		$175.60 5
3 193005
LOWER HALF-BEARING
Green- -Standard- -Valid till engine Nr. 107296
IN STOCK 		$16.05 (10.6% off) 5
3 286837
LOWER HALF-BEARING
Yellow- -Valid from engine Nr. 107297 		$16.37 5
3 193004
LOWER HALF-BEARING
Yellow- -Valid till engine Nr. 107296 		$16.05 5
3 286836
LOWER HALF-BEARING BLU
Blue- -Valid from engine Nr. 107297 		$15.65 5
4 196648
UPPER SHIM WASHER
Standard- -Valid from engine Nr. 107297 		$511.39 2
4 COMPLETESETONLY
OIL SCRAPER RING
Standard- -Valid till engine Nr. 107296 		- 2 Enquire
4 201224
UPPER SHIM WASHER
2nd Oversize- -Valid from engine Nr. 107297 		$213.07 2
4 179541
UPPER SHIM WASHER
2nd Oversize- -Valid till engine Nr. 107296 		$57.14 (21.6% off) 2
4 201220
UPPER SHIM WASHER
1st Oversize- -Valid from engine Nr. 107297 		$213.07 2
4 179540
UPPER SHIM WASHER
1st Oversize- -Valid till engine Nr. 107296 		$57.14 (21.6% off) 2
5 201226
LOWER SHIM WASHER
2nd Oversize- -Valid from engine Nr. 107297 		$213.07 2
5 179536
LOWER SHIM WASHER
2nd Oversize- -Valid till engine Nr. 107296 		$57.14 (21.6% off) 2
5 201225
LOWER SHIM WASHER
1st Oversize- -Valid from engine Nr. 107297 		$213.07 2
5 179537
LOWER SHIM WASHER
1st Oversize- -Valid till engine Nr. 107296 		$57.14 (21.6% off) 2
5 196649
LOWER SHIM WASHER
Standard- -Valid from engine Nr. 107297 		$186.84 2
5 179538
LOWER SHIM WASHER
Standard- -Valid till engine Nr. 107296 		$33.56 (13.7% off) 2
6 187469
TORSION DAMPER 		$2,140.84 (27.6% off) 1
7 263683
DAMPER FASTENING WASHER 		$16.79 1
8 196216
Screw For Damper Fixing
ARRIVING SOON 		$84.61 1
9 235062
Bearing 		$36.95 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
Supplied also in the crankcase gasket revision kit (cod. 980020004)
IN STOCK 		$46.04 1
11 186201
TAB
IN STOCK 		$3.19 1
12 192402
CONNECTING ROD SHAFT AND CAP ASSEMBLY
Valid till engine Nr. 107296 		$324.62 (25.1% off) 8
12 244887
CONNECTING ROD SHAFT AND CAP ASSEMBLY
Valid from engine Nr. 107297 		- 8 Enquire
13 198410
RH SIDE ENGINE PISTON WITH RINGS 		$280.75 (13.9% off) 4
13 198412
LH SIDE ENGINE PISTON WITH RINGS 		$280.75 (13.9% off) 4
14 236497
SEAL RING
1st groove 		- 8 Enquire
15 226260
SEAL RING
2nd groove 		$66.59 8
16 COMPLETESETONLY
OIL SCRAPER RING
3nd groove 		- 8 Enquire
17 178890
LOCK RING 		$9.45 16
18 175367
PIN 		$72.87 8
19 184909
BUSHING
Valid till engine Nr. 107296 		$43.70 8
19 234861
BUSHING
Valid from engine Nr. 107297 		- 8 Enquire
20 177159
CONNECTING ROD TIGHTENING SCREW
Valid till engine Nr. 107296 		$52.91 16
20 215530
CONNECTING ROD TIGHTENING SCREW
Valid from engine Nr. 107297 		$73.50 16
21 204292
CONNECTING ROD HALF-BEARING
Black- -Valid from engine Nr. 107297 		$39.68 16
21 204290
CONNECTING ROD HALF BEARING RED
Red- -Standard- -Valid from engine Nr. 107297
IN STOCK 		$53.00 16
21 188520
CONNECTING ROD HALF-BEARING
Brown- -Valid till engine Nr. 107296 		$6.20 (18.6% off) 16
21 190265
CONNECTING ROD HALF-BEARING
Yellow- -Valid till engine Nr. 107296 		$13.33 (72% off) 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue- -Valid from engine Nr. 107297 		$10.40 16
21 188521
CONNECTING ROD HALF-BEARING
Green- -Standard- -Valid till engine Nr. 107296 		$17.71 16
