CRANKCASE of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

Maserati 4200 Coupe (2005-2007) CC - CRANKCASE

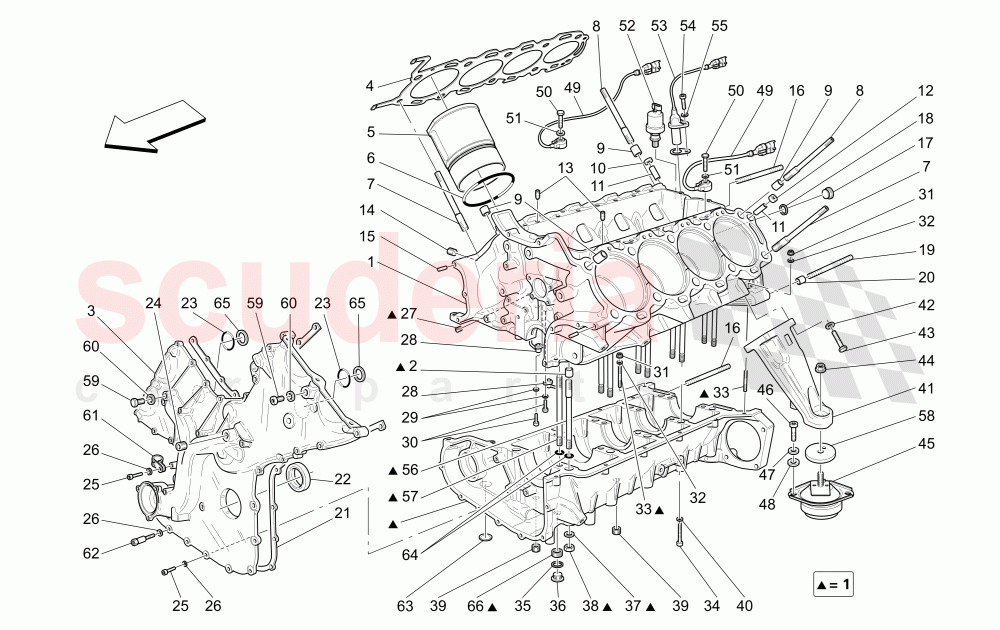

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	225275	ENGINE BLOCK	$3,331.51	To Order
	223352	ENGINE BLOCK	$3,164.85	To Order
	216261	ENGINE BLOCK	$2,825.52	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$9.09	To Order

Photo	Part No	Description	Price (each)	Stock
	55012820	RH CYLINDER HEAD GASKET	Enquire	To Order
	55012822	LH Cylinder Head Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190770	CYLINDERS LINER	$276.23	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	GASKET	$5.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217967	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$6.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	194773	DOWEL	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	156862	NONRETURN VALVE	$6.88	To Order

Photo	Part No	Description	Price (each)	Stock
	184045	DOWEL	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	177727	CENTERING DOWEL	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$6.81	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$3.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD	$2.24	To Order
	13546834	STUD	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	193885	THREADED PLUG	$7.41	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$1.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254979	STUD	Enquire	To Order
	13546934	STUD	$3.18	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock

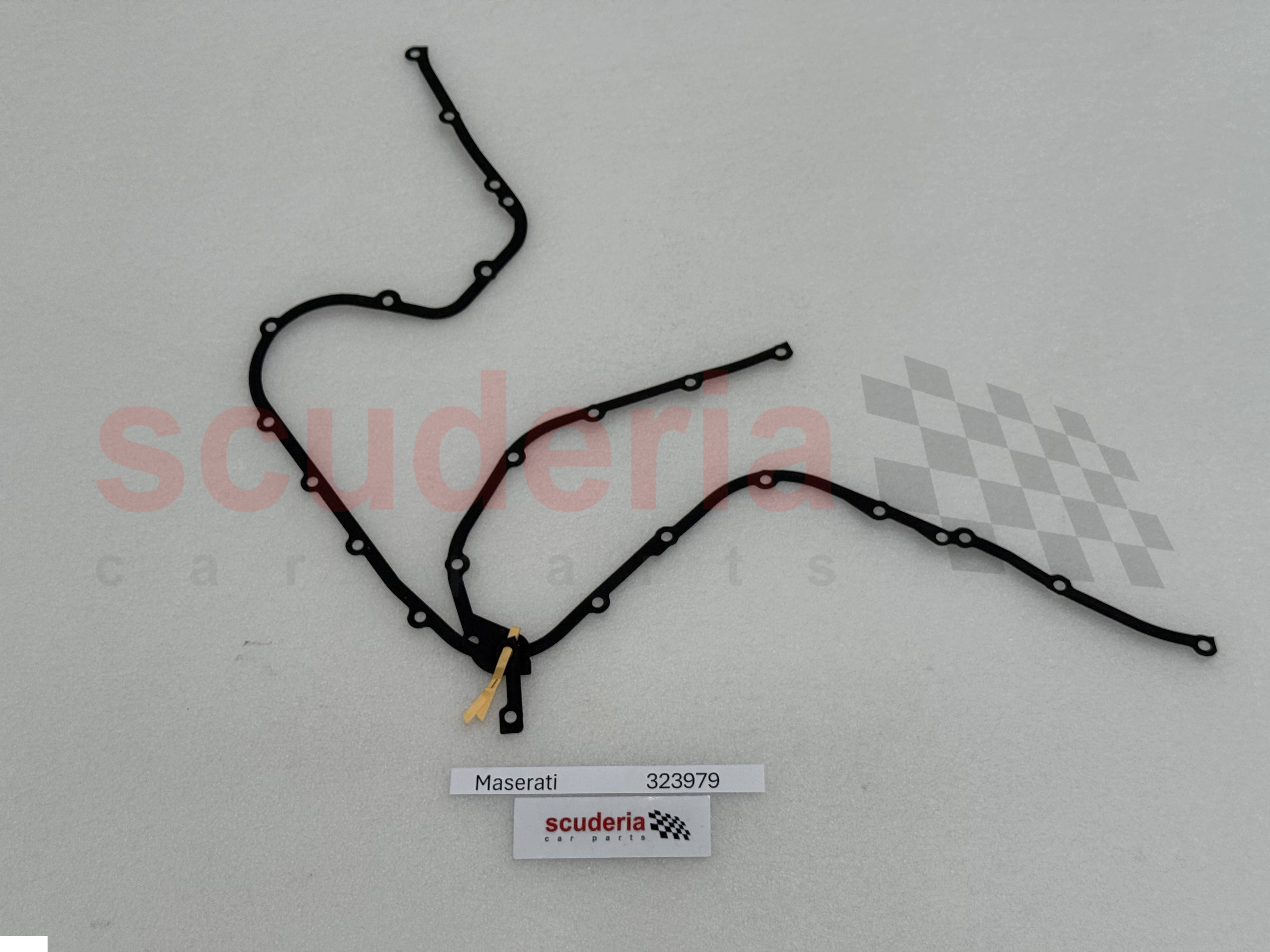

	323979	Front Crank Case Gasket	$43.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal D.48-65	$37.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING D-32.93	$3.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14324940	THREADED PLUG	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	231621	Allen Screw M6 x 30	$1.16	To Order
	231622	SCREWM6X35	$1.17	To Order
	231617	SCREW M6 X 18	$2.59	IN STOCK

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	175657	PISTONS COOLING NOZZLE	$15.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD	$13.28	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.59	IN STOCK
	186196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	$1.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$12.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$3.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$1.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG subject to maserati technical service authorisation	$5.91	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186029	RH ENGINE MOUNTING BRACKET	$88.85	To Order
	186030	LH ENGINE MOUNTING BRACKET	$88.85	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHERD.10.5-20X2.3	$1.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	177018	NUT	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	185361	ENGINE PAD	$152.40	To Order

Photo	Part No	Description	Price (each)	Stock
	14307334	SCREW	$7.96	To Order

Photo	Part No	Description	Price (each)	Stock
	11198374	WASHER	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187739	SENSOR FOR FIRING L=300	$70.51	To Order
	187740	SENSOR FOR FIRING	$45.64	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	$2.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11198074	WASHER D.8.5-15 X 1.8	$1.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	135940	Transmitter Oil Pressure	$164.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182194	RPM SENSOR	$94.54	To Order
	219872	RH BANK CYLINDER RPM SENSOR	$102.58	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217794	STUD	$58.29	To Order

Photo	Part No	Description	Price (each)	Stock
	217796	STUD	$58.29	To Order
	217796	STUD	$58.29	To Order

Photo	Part No	Description	Price (each)	Stock

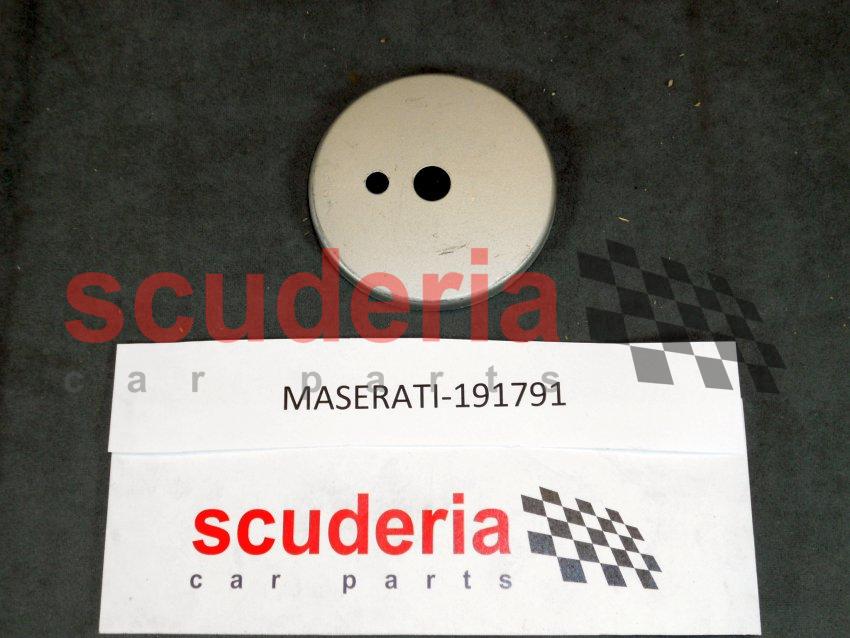

	191791	Upper Support For Pad	$4.01	To Order

Photo	Part No	Description	Price (each)	Stock
	187718	BLEEDER PLUG	$7.41	To Order

Photo	Part No	Description	Price (each)	Stock
	10284460	GASKET	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	190876	STUD	$17.59	To Order

Photo	Part No	Description	Price (each)	Stock
	10269650	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O.R. GASKET	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191620	Water Output Reducer	$17.81	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$3.93	IN STOCK
	223577	THREADED INSERT M22 X 1.5 X 9MM	$3.93	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	980020005	HEADS COVER GASKET REVISION KIT	980020005 HEADS COVER GASKET REVISION KIT	$185.96	1
-	980020006	HEAD OVERHAUL GASKET KIT	980020006 HEAD OVERHAUL GASKET KIT	$375.19	1
-	736042087	ENGINE ASSEMBLY	736042087 ENGINE ASSEMBLY Valid for F1- -Valid for RHD	$23,878.80	1
-	736031040	ENGINE ASSEMBLY	736031040 ENGINE ASSEMBLY Valid for F1- -Not for USA, CDN and RHD	$23,878.80	1
-	736030040	ENGINE ASSEMBLY	736030040 ENGINE ASSEMBLY Not for F1- -Not for USA, CDN and RHD	$23,878.80	1
-	736041087	ENGINE ASSEMBLY	736041087 ENGINE ASSEMBLY Not for F1- -Valid for RHD	$24,418.83	1
-	736042040	ENGINE ASSEMBLY	736042040 ENGINE ASSEMBLY Valid for F1- -Valid for USA and CDN	$24,958.89	1
-	736041040	ENGINE ASSEMBLY	736041040 ENGINE ASSEMBLY Not for F1- -Valid for USA and CDN	$32,090.18	1
-	980020004	CRANKCASE GASKET REVISION KIT	980020004 CRANKCASE GASKET REVISION KIT	$158.77	1
1	225275	ENGINE BLOCK	225275 ENGINE BLOCK Valid from engine Nr. 107297	$3,331.51	1
1	223352	ENGINE BLOCK	223352 ENGINE BLOCK Valid till engine Nr. 107296- -Valid after stock exhaustion of 216261	$3,164.85	1
1	216261	ENGINE BLOCK	216261 ENGINE BLOCK Valid till engine Nr. 107296- -Valid till stock exhaustion	$2,825.52	1
2	176421	CENTERING DOWEL	176421 CENTERING DOWEL (Quantity 10 for cars with engine till Nr. 100809)- -(Quantity 10 for cars with complete crankcase (Pos. 1) code 216261)	$9.09	2
4	55012820	RH CYLINDER HEAD GASKET	55012820 RH CYLINDER HEAD GASKET Supplied also in the cylinder heads gasket revision kit (cod. 980020006)	-	1	Enquire
4	55012822	LH Cylinder Head Gasket	55012822 LH Cylinder Head Gasket Supplied also in the cylinder heads gasket revision kit (cod. 980020006)	-	1	Enquire
5	190770	CYLINDERS LINER	190770 CYLINDERS LINER	$276.23 MSRP: ~~288.83~~ (4.4% off)	8
6	186251	GASKET IN STOCK	186251 GASKET Supplied also in the crankcase gasket revision kit (cod. 980020004) IN STOCK	$5.91	24
7	217967	STUD	217967 STUD	-	10	Enquire
8	802590	STUD	802590 STUD	-	10	Enquire
9	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$6.58	4
10	194773	DOWEL	194773 DOWEL	$8.08 MSRP: ~~9.15~~ (11.7% off)	1
11	156862	NONRETURN VALVE	156862 NONRETURN VALVE	$6.88 MSRP: ~~18.03~~ (61.8% off)	2
12	184045	DOWEL	184045 DOWEL	$8.08 MSRP: ~~9.15~~ (11.7% off)	1
13	177727	CENTERING DOWEL	177727 CENTERING DOWEL	$5.87	2
14	164400	THREADED PLUG	164400 THREADED PLUG	$6.81	1
15	175611	CENTERING DOWEL IN STOCK	175611 CENTERING DOWEL IN STOCK	$3.90	2
16	13546834	STUD	13546834 STUD	$2.24	3
16	13546834	STUD	13546834 STUD	$2.24	2
17	193885	THREADED PLUG	193885 THREADED PLUG	$7.41	1
18	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 Supplied also in the crankcase gasket revision kit (cod. 980020004) IN STOCK	$1.83	1
19	254979	STUD	254979 STUD	-	1	Enquire
19	13546934	STUD	13546934 STUD	$3.18	1
20	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$5.87	2
21	323979	Front Crank Case Gasket IN STOCK	323979 Front Crank Case Gasket Supplied also in the cylinder heads gasket revision kit (cod. 980020006) IN STOCK	$43.77	1
22	188717	Front Crankshaft Seal D.48-65 IN STOCK	188717 Front Crankshaft Seal D.48-65 Supplied also in the cylinder heads gasket revision kit (cod. 980020006) IN STOCK	$37.86	1
23	183010	O-RING D-32.93 IN STOCK	183010 O-RING D-32.93 Supplied also in the cylinder heads gasket revision kit (cod. 980020006) IN STOCK	$3.90	2
24	14324940	THREADED PLUG	14324940 THREADED PLUG	$1.78 MSRP: ~~1.86~~ (4.3% off)	1
25	231621	Allen Screw M6 x 30	231621 Allen Screw M6 x 30 M 6X30	$1.16	4
25	231622	SCREWM6X35	231622 SCREWM6X35 M 6X35	$1.17	2
25	231617	SCREW M6 X 18 IN STOCK	231617 SCREW M6 X 18 M 6X18 IN STOCK	$2.59	14
25	231624	SCREWM6X45	231624 SCREWM6X45 M6X45 M 6X45	$2.90	1
25	14303924	SCREW	14303924 SCREW M 6X70	$6.10	3
25	231619	SCREW M6 X 22MM IN STOCK	231619 SCREW M6 X 22MM M 6X22 IN STOCK	$2.59	3
25	156828	SCREW M 6X50Â IN STOCK	156828 SCREW M 6X50Â M 6X50 IN STOCK	$2.24	2
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4 IN STOCK	$2.36	32
27	13525770	THREADED INSERT	13525770 THREADED INSERT	$2.24	5
28	175657	PISTONS COOLING NOZZLE	175657 PISTONS COOLING NOZZLE	$15.83	8
29	11181474	WASHER	11181474 WASHER	$1.56	8
30	14302921	SCREW	14302921 SCREW	$1.56	8
31	14039614	NUT IN STOCK	14039614 NUT IN STOCK	$1.34	2
32	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	$2.36	2
33	13541624	STUD	13541624 STUD	$13.28	2
34	231619	SCREW M6 X 22MM IN STOCK	231619 SCREW M6 X 22MM IN STOCK	$2.59	1
34	186196	SCREW	186196 SCREW	-	10	Enquire
35	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 IN STOCK	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 Supplied also in the crankcase gasket revision kit (cod. 980020004) IN STOCK	$1.20	1
36	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$12.96	1
37	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 D.10.2-20X2.4 IN STOCK	$3.86	20
38	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 M10 IN STOCK	$1.90	20
39	282756	THREADED PLUG subject to maserati technical service authorisation	282756 THREADED PLUG subject to maserati technical service authorisation	$5.91	4
40	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4 IN STOCK	$2.36	11
41	186029	RH ENGINE MOUNTING BRACKET	186029 RH ENGINE MOUNTING BRACKET	$88.85 MSRP: ~~134.39~~ (33.9% off)	1
41	186030	LH ENGINE MOUNTING BRACKET	186030 LH ENGINE MOUNTING BRACKET	$88.85 MSRP: ~~134.39~~ (33.9% off)	1
42	11190574	WASHERD.10.5-20X2.3 IN STOCK	11190574 WASHERD.10.5-20X2.3 D.10.5-20X2.3 IN STOCK	$1.76	8
43	11306934	SCREW	11306934 SCREW TE M 10X1,25X 30	$4.03	8
44	177018	NUT	177018 NUT	$2.65	2
45	185361	ENGINE PAD	185361 ENGINE PAD	$152.40	2
46	14307334	SCREW	14307334 SCREW	$7.96 MSRP: ~~11.47~~ (30.6% off)	4
47	11198374	WASHER	11198374 WASHER	$2.77	4
48	126648	WASHER	126648 WASHER	-	4	Enquire
49	187739	SENSOR FOR FIRING L=300	187739 SENSOR FOR FIRING L=300 Flywheel side	$70.51	2
49	187740	SENSOR FOR FIRING	187740 SENSOR FOR FIRING Timing side	$45.64 MSRP: ~~58.51~~ (22% off)	2
50	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	$2.59	4
51	11198074	WASHER D.8.5-15 X 1.8 IN STOCK	11198074 WASHER D.8.5-15 X 1.8 D.8.5-15X1.8 IN STOCK	$1.42	4
52	135940	Transmitter Oil Pressure IN STOCK	135940 Transmitter Oil Pressure IN STOCK	$164.44 MSRP: ~~177.31~~ (7.3% off)	1
53	182194	RPM SENSOR	182194 RPM SENSOR	$94.54	1
53	219872	RH BANK CYLINDER RPM SENSOR	219872 RH BANK CYLINDER RPM SENSOR Valid after stock exhaustion of 182194	$102.58	1
54	248334	SCREW M6 X 14MM IN STOCK	248334 SCREW M6 X 14MM IN STOCK	$3.09	1
55	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4 IN STOCK	$2.36	1
56	217794	STUD	217794 STUD	$58.29	10
57	217796	STUD	217796 STUD Valid till engine Nr. 100809- -Not for cars with complete crankcase (Pos. 1) code 223352- -Valid till stock exhaustion	$58.29	10
57	217796	STUD	217796 STUD Valid from engine Nr. 100810	$58.29	10
58	191791	Upper Support For Pad	191791 Upper Support For Pad	$4.01 MSRP: ~~4.57~~ (12.3% off)	2
59	187718	BLEEDER PLUG	187718 BLEEDER PLUG	$7.41	2
60	10284460	GASKET IN STOCK	10284460 GASKET IN STOCK	$1.18	2
61	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$1.17	1
62	190876	STUD	190876 STUD	$17.59 MSRP: ~~24.33~~ (27.7% off)	1
63	10269650	PLUG	10269650 PLUG	-	1	Enquire
64	134704	O.R. GASKET IN STOCK	134704 O.R. GASKET IN STOCK	$1.18	20
65	191620	Water Output Reducer	191620 Water Output Reducer Valid for cars with front cover (Pos. 3) code 188710	$17.81	2
66	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM As an alternative IN STOCK	$3.93	1
66	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$3.93	1
