Maserati 4200 Coupe (2002-2004) CC - REAR SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189335 L.H. REAR HUB HOLDER $778.48 To Order
189334 R.H. REAR HUB HOLDER $778.48 To Order
Photo Part No Description Price (each) Stock
196779 COMPLETE UPPER LEVER $1,369.02 To Order
Photo Part No Description Price (each) Stock
186496 FLANBLOC $204.83 To Order
Photo Part No Description Price (each) Stock
377030379 WASHER $5.54 To Order
377030380 WASHER $22.06 To Order
377030381 WASHER $5.54 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13530624 STUD $31.16 To Order
Photo Part No Description Price (each) Stock
14048825 NUT $6.66 To Order
Photo Part No Description Price (each) Stock
198027 RH REAR LOWER SUSPENSION ARM $2,398.75 IN STOCK
198501 COMPLETE L.H. LOWER LEVER $2,357.22 To Order
196776 COMPLETE L.H. LOWER LEVER $2,398.75 To Order
Photo Part No Description Price (each) Stock
186494 RH SILENT BLOCK BUSH 14-34X61 $158.89 IN STOCK
Photo Part No Description Price (each) Stock
387000393 ABS CABLE BRACKET $89.14 To Order
Photo Part No Description Price (each) Stock
13684370 RIVET $2.02 To Order
Photo Part No Description Price (each) Stock
188632 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER $96.64 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.34 IN STOCK
Photo Part No Description Price (each) Stock
14498805 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
377030380 WASHER $22.06 To Order
377030381 WASHER $5.54 To Order
377030382 WASHER $6.66 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13531734 STUD $24.84 To Order
Photo Part No Description Price (each) Stock
13507521 WASHER $3.35 To Order
Photo Part No Description Price (each) Stock
387000329 WASHER $5.26 IN STOCK
Photo Part No Description Price (each) Stock
14048825 NUT $6.66 To Order
Photo Part No Description Price (each) Stock
196071 SCREW $6.12 IN STOCK
Photo Part No Description Price (each) Stock
14496825 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
15503915 NUT $2.36 IN STOCK
Photo Part No Description Price (each) Stock
196071 SCREW $6.12 IN STOCK
Photo Part No Description Price (each) Stock
196521 FRONT FORK $128.58 To Order
Photo Part No Description Price (each) Stock
199646 WASHER $3.35 To Order
377030381 WASHER $5.54 To Order
377030382 WASHER $6.66 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14496825 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
15503915 NUT $2.36 IN STOCK
Photo Part No Description Price (each) Stock
196522 REAR FORK $106.83 To Order
View All

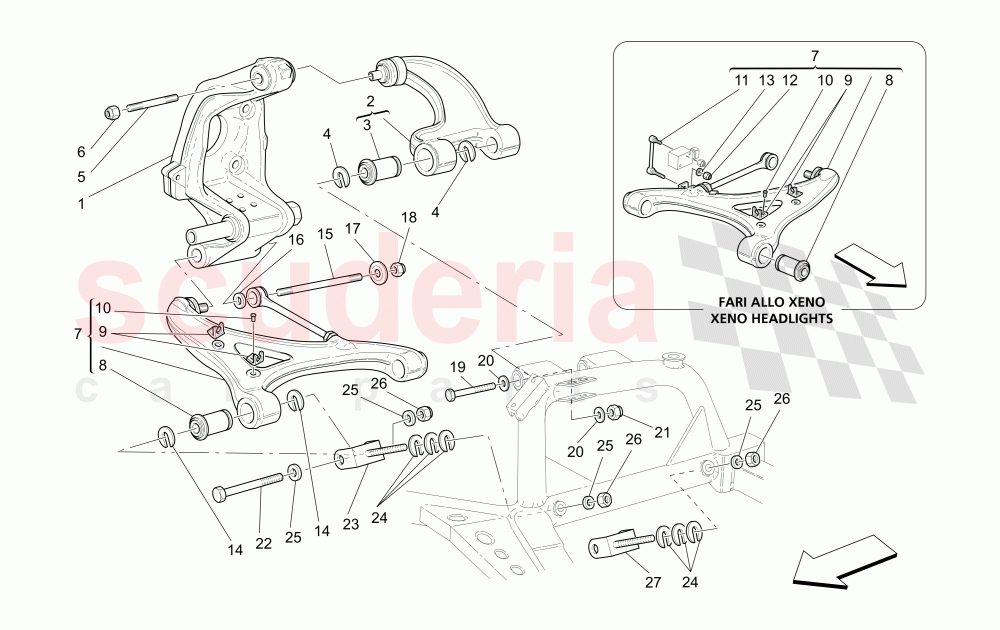

REAR SUSPENSION of Maserati Maserati 4200 Coupe (2002-2004) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189335
L.H. REAR HUB HOLDER 		$778.48 (32% off) 1
1 189334
R.H. REAR HUB HOLDER 		$778.48 (32% off) 1
2 196779
COMPLETE UPPER LEVER 		$1,369.02 2
3 186496
FLANBLOC 		$204.83 (7.3% off) 4
4 377030379
WASHER
Thickness mm. 0,75 		$5.54 -
4 377030380
WASHER
Thickness mm. 1,00 		$22.06 -
4 377030381
WASHER
Thickness mm. 1,75 		$5.54 -
4 377030382
WASHER
Thickness mm. 3,00 		$6.66 -
4 377030378
WASHER
Thickness mm. 0,50 		$4.59 -
5 13530624
STUD 		$31.16 (14.8% off) 2
6 14048825
NUT 		$6.66 (13.3% off) 2
7 198027
RH REAR LOWER SUSPENSION ARM
For cars with assembly number lower than 7732 provide two forks cod.196521
IN STOCK 		$2,398.75 (13.4% off) 1
7 198501
COMPLETE L.H. LOWER LEVER
Optional- -Xeno headlights- -Not for USA and CDN 		$2,357.22 (14.9% off) 1
7 196776
COMPLETE L.H. LOWER LEVER
Standard - FOR VEHICLES WITH ASSEMBLY 		$2,398.75 (13.4% off) 1
8 186494
RH SILENT BLOCK BUSH 14-34X61
IN STOCK 		$158.89 (20.4% off) 4
9 387000393
ABS CABLE BRACKET 		$89.14 (23.3% off) 4
10 13684370
RIVET 		$2.02 4
11 188632
TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
Valid for opt. Xeno headlights- -Not for USA and CDN 		$96.64 (8.7% off) 1
12 14039614
NUT
Valid for opt. Xeno headlights- -Not for USA and CDN
IN STOCK 		$1.34 1
13 14498805
WASHER
Valid for opt. Xeno headlights- -Not for USA and CDN 		$1.56 1
14 377030380
WASHER
Thickness mm. 1,00 		$22.06 -
14 377030381
WASHER
Thickness mm. 1,75 		$5.54 -
14 377030382
WASHER
Thickness mm. 3,00 		$6.66 -
14 377030378
WASHER
Thickness mm. 0,50 		$4.59 -
14 377030379
WASHER
Thickness mm. 0,75 		$5.54 -
15 13531734
STUD 		$24.84 (14.3% off) 2
16 13507521
WASHER 		$3.35 2
17 387000329
WASHER
IN STOCK 		$5.26 (14.2% off) 2
18 14048825
NUT 		$6.66 (13.3% off) 2
19 196071
SCREW
IN STOCK 		$6.12 4
20 14496825
WASHER 		$1.56 8
21 15503915
NUT
IN STOCK 		$2.36 4
22 196071
SCREW
IN STOCK 		$6.12 4
23 196521
FRONT FORK 		$128.58 (15.5% off) 2
24 199646
WASHER
Thickness mm. 0,40 		$3.35 -
24 377030381
WASHER
Thickness mm. 1,75 		$5.54 -
24 377030382
WASHER
Thickness mm. 3,00 		$6.66 -
24 199644
WASHER
Thickness mm. 0,20 		$3.35 -
24 199645
WASHER
Thickness mm. 0,30 		$3.35 -
24 377030378
WASHER
Thickness mm. 0,50 		$4.59 -
24 377030379
WASHER
Thickness mm. 0,75 		$5.54 -
24 377030380
WASHER
Thickness mm. 1,00 		$22.06 -
25 14496825
WASHER 		$1.56 12
26 15503915
NUT
IN STOCK 		$2.36 8
27 196522
REAR FORK 		$106.83 (29.8% off) 2
