Lubrication System: Pump And Filter

Maserati 4200 Coupe (2002-2004) CC

Find Your Part

Maserati 4200 Coupe (2002-2004) CC - LUBRICATION SYSTEM: PUMP AND FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
213259 COMPLETE WATER AND OIL PUMP $1,445.57 To Order
202976 OIL AND WATER PUMP $2,087.80 To Order
Photo Part No Description Price (each) Stock
188814 Oil Filter $27.48 IN STOCK
Photo Part No Description Price (each) Stock
177604 THREADED UNION $10.95 To Order
Photo Part No Description Price (each) Stock
133938 O-RING D28.3 X 1.7 $1.60 IN STOCK
Photo Part No Description Price (each) Stock
187051 LATERAL OIL RECOVERY FILTER $9.78 To Order
Photo Part No Description Price (each) Stock
187162 Oil Pump Filter $26.95 IN STOCK
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $1.81 IN STOCK
Photo Part No Description Price (each) Stock
132829 O-Ring $2.85 IN STOCK
Photo Part No Description Price (each) Stock
141250 O-Ring $1.04 IN STOCK
Photo Part No Description Price (each) Stock
185345 SCREW $5.24 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.59 IN STOCK
14306424 SCREW M8 X 25 $2.20 IN STOCK
Photo Part No Description Price (each) Stock
14359324 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
11198074 WASHER D.8.5-15 X 1.8 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
189778 COUPLING $41.06 To Order
Photo Part No Description Price (each) Stock
155996 BALL BEARING $13.71 To Order
Photo Part No Description Price (each) Stock
177597 COMPENSATING RING $8.72 To Order
Photo Part No Description Price (each) Stock
11067276 CIRCLIP (SEEGER-RING) $1.02 To Order
Photo Part No Description Price (each) Stock
121276 GASKET FOR ROTATING SHAFT $14.30 IN STOCK
Photo Part No Description Price (each) Stock
177596 COMPENSATING RING $1.57 To Order
Photo Part No Description Price (each) Stock
11381076 CIRCLIP (SEEGER-RING) $2.81 IN STOCK
Photo Part No Description Price (each) Stock
186272 O.R. GASKET $1.60 IN STOCK
View All

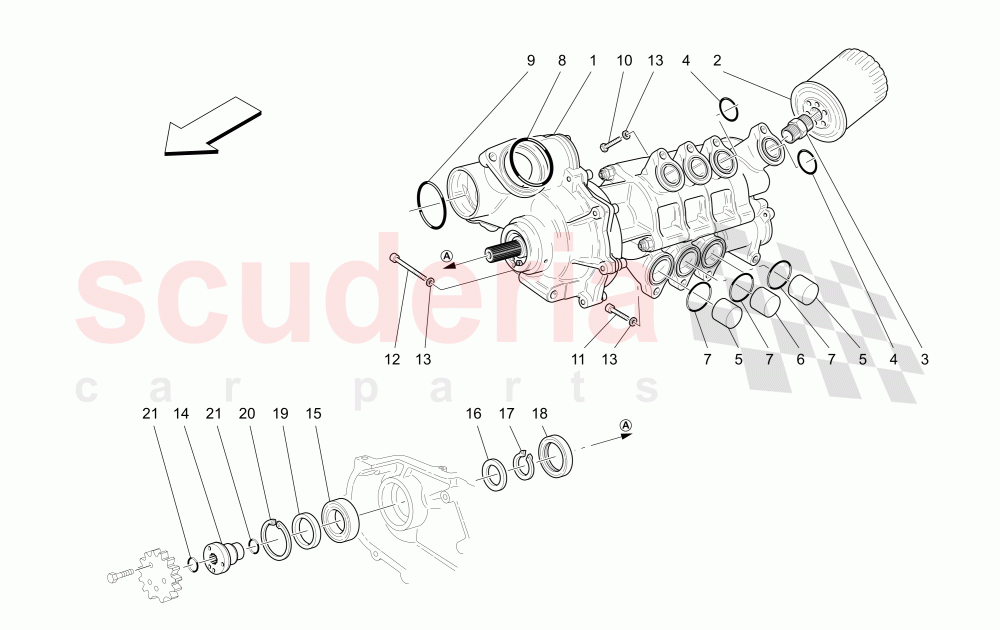

LUBRICATION SYSTEM: PUMP AND FILTER of Maserati Maserati 4200 Coupe (2002-2004) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 213259
COMPLETE WATER AND OIL PUMP
Not for USA and CDN 		$1,445.57 1
1 202976
OIL AND WATER PUMP
Valid for USA and CDN 		$2,087.80 (15% off) 1
2 188814
Oil Filter
IN STOCK 		$27.48 (41.7% off) 1
3 177604
THREADED UNION 		$10.95 (32.7% off) 1
4 133938
O-RING D28.3 X 1.7
Supplied also in the crankcase gasket revision kit (cod. 980020004)
IN STOCK 		$1.60 4
5 187051
LATERAL OIL RECOVERY FILTER 		$9.78 (26.1% off) 2
6 187162
Oil Pump Filter
IN STOCK 		$26.95 (24.7% off) 1
7 140071
O-RING 3 X 3 X 1
Supplied also in the crankcase gasket revision kit (cod. 980020004)
IN STOCK 		$1.81 3
8 132829
O-Ring
Supplied also in the crankcase gasket revision kit (cod. 980020004)
IN STOCK 		$2.85 1
9 141250
O-Ring
IN STOCK 		$1.04 1
10 185345
SCREW
M 8X25 		$5.24 4
11 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
M8X30 M 8X30
IN STOCK 		$2.59 1
11 14306424
SCREW M8 X 25
M8X25 M 8X25
IN STOCK 		$2.20 3
12 14359324
SCREW
M 8X65 		$2.24 2
13 11198074
WASHER D.8.5-15 X 1.8
D.8.5-15X1.8
IN STOCK 		$1.42 10
14 189778
COUPLING 		$41.06 1
15 155996
BALL BEARING 		$13.71 1
16 177597
COMPENSATING RING 		$8.72 1
17 11067276
CIRCLIP (SEEGER-RING) 		$1.02 1
18 121276
GASKET FOR ROTATING SHAFT
IN STOCK 		$14.30 (13.2% off) 1
19 177596
COMPENSATING RING 		$1.57 1
20 11381076
CIRCLIP (SEEGER-RING)
IN STOCK 		$2.81 1
21 186272
O.R. GASKET
IN STOCK 		$1.60 2
