Maserati 4200 Coupe (2002-2004) CC - TIMING - SHAFTS AND VALVES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247480 HYDRAULIC TAPPET FOR VALVE CONTROL $31.86 IN STOCK
Photo Part No Description Price (each) Stock
179763 COTTER FOR VALVE SPRING $1.60 To Order
Photo Part No Description Price (each) Stock
187489 UPPER WASHER $14.92 To Order
Photo Part No Description Price (each) Stock
184054 OUTER SPRING FOR VALVE RETURN $20.75 To Order
Photo Part No Description Price (each) Stock
184055 INNER SPRING FOR VALVE RETURN $111.55 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $6.02 IN STOCK
Photo Part No Description Price (each) Stock
204178 LOWER CUP Enquire To Order
190408 LOWER CUP $45.80 To Order
Photo Part No Description Price (each) Stock
176437 INTAKE AND EXHAUST VALVE GUIDE $29.22 To Order
176483 INTAKE AND EXHAUST VALVE GUIDE $47.25 To Order
Photo Part No Description Price (each) Stock
6222847 INDUCTION VALVE SEAT $9.08 To Order
Photo Part No Description Price (each) Stock
6222848 EXHAUST VALVE SEAT $10.41 To Order
Photo Part No Description Price (each) Stock
198581 INTAKE VALVE $76.97 IN STOCK
Photo Part No Description Price (each) Stock
227334 EXHAUST VALVE $79.07 IN STOCK
Photo Part No Description Price (each) Stock
190656 RH INTAKE CAMSHAFT $2,712.58 To Order
200692 RH INTAKE CAMSHAFT $488.23 To Order
Photo Part No Description Price (each) Stock
200694 RH EXHAUST CAMSHAFT $513.98 To Order
190658 RH EXHAUST CAMSHAFT $2,712.58 To Order
Photo Part No Description Price (each) Stock
190657 LH INTAKE CAMSHAFT $2,451.84 To Order
200693 LH INTAKE CAMSHAFT $512.90 To Order
Photo Part No Description Price (each) Stock
200695 LH EXHAUST CAMSHAFT $494.67 To Order
190659 LH EXHAUST CAMSHAFT $2,712.58 To Order
Photo Part No Description Price (each) Stock
134701 O.R. GASKET $1.60 IN STOCK
Photo Part No Description Price (each) Stock
189541 VARIATOR OIL PUMP $118.47 To Order
Photo Part No Description Price (each) Stock
184731 WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
14303523 SCREW $1.56 To Order
Photo Part No Description Price (each) Stock
198668 TIMING VARIATOR MOUNTING BUSHING $257.97 IN STOCK
Photo Part No Description Price (each) Stock
214742 RING $18.64 IN STOCK
Photo Part No Description Price (each) Stock
134701 O.R. GASKET $1.60 IN STOCK
Photo Part No Description Price (each) Stock
10617520 TAB $3.39 To Order
Photo Part No Description Price (each) Stock
190012 TIMING VARIATOR $858.85 To Order
Photo Part No Description Price (each) Stock
189576 TOOTHED WHEEL $258.01 To Order
Photo Part No Description Price (each) Stock
190163 VARIATOR OIL TANK $1,028.98 To Order
Photo Part No Description Price (each) Stock
193738 THREADED UNION $6.58 To Order
Photo Part No Description Price (each) Stock
10261060 COPPER WASHER D.12- 16 X 1.5MM $1.23 IN STOCK
Photo Part No Description Price (each) Stock
193406 Oil Accumulator Bracket $108.30 To Order
Photo Part No Description Price (each) Stock
190162 CLAMP $18.88 To Order
Photo Part No Description Price (each) Stock
194710 PIPE FROM ACCUMULATOR TO CYLINDERS HEADS $100.69 To Order
Photo Part No Description Price (each) Stock
94077843 SCREW $15.94 To Order
View All

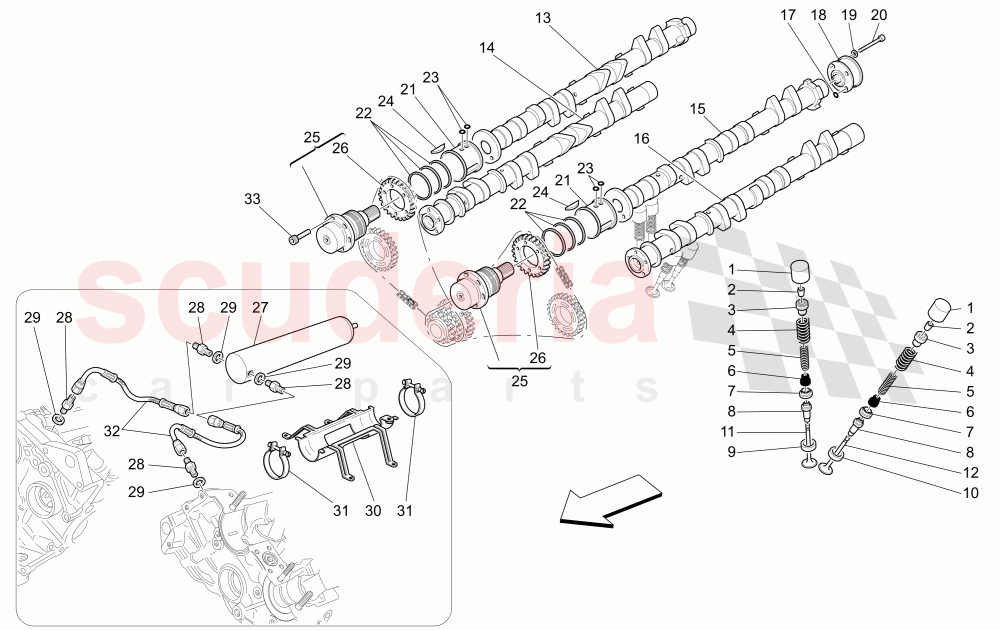

TIMING - SHAFTS AND VALVES of Maserati Maserati 4200 Coupe (2002-2004) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247480
HYDRAULIC TAPPET FOR VALVE CONTROL
IN STOCK 		$31.86 32
2 179763
COTTER FOR VALVE SPRING 		$1.60 64
3 187489
UPPER WASHER 		$14.92 32
4 184054
OUTER SPRING FOR VALVE RETURN 		$20.75 (9.6% off) 32
5 184055
INNER SPRING FOR VALVE RETURN 		$111.55 32
6 221473
VALVE STEM OIL SEAL
Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
IN STOCK 		$6.02 32
7 204178
LOWER CUP 		- 32 Enquire
7 190408
LOWER CUP
Oversized 		$45.80 (24.8% off) 32
8 176437
INTAKE AND EXHAUST VALVE GUIDE 		$29.22 32
8 176483
INTAKE AND EXHAUST VALVE GUIDE
Oversized 		$47.25 32
9 6222847
INDUCTION VALVE SEAT 		$9.08 16
10 6222848
EXHAUST VALVE SEAT 		$10.41 16
11 198581
INTAKE VALVE
IN STOCK 		$76.97 16
12 227334
EXHAUST VALVE
Valid after stock exhaustion of 189351
IN STOCK 		$79.07 16
13 190656
RH INTAKE CAMSHAFT
Valid till engine Nr. 83605 		$2,712.58 (21.9% off) 1
13 200692
RH INTAKE CAMSHAFT
Valid from engine Nr. 83606 		$488.23 1
14 200694
RH EXHAUST CAMSHAFT
Valid from engine Nr. 83606 		$513.98 1
14 190658
RH EXHAUST CAMSHAFT
Valid till engine Nr. 83605 		$2,712.58 (21.9% off) 1
15 190657
LH INTAKE CAMSHAFT
Valid till engine Nr. 83605 		$2,451.84 (37.5% off) 1
15 200693
LH INTAKE CAMSHAFT
Valid from engine Nr. 83606 		$512.90 1
16 200695
LH EXHAUST CAMSHAFT
Valid from engine Nr. 83606 		$494.67 1
16 190659
LH EXHAUST CAMSHAFT
Valid till engine Nr. 83605 		$2,712.58 (21.9% off) 1
17 134701
O.R. GASKET
IN STOCK 		$1.60 2
18 189541
VARIATOR OIL PUMP 		$118.47 (31.2% off) 1
19 184731
WASHER 		$1.38 4
20 14303523
SCREW 		$1.56 (49.8% off) 4
21 198668
TIMING VARIATOR MOUNTING BUSHING
IN STOCK 		$257.97 (12.6% off) 2
22 214742
RING
IN STOCK 		$18.64 6
23 134701
O.R. GASKET
IN STOCK 		$1.60 4
24 10617520
TAB 		$3.39 (12.6% off) 2
25 190012
TIMING VARIATOR 		$858.85 (22% off) 2
26 189576
TOOTHED WHEEL 		$258.01 (25.7% off) 2
27 190163
VARIATOR OIL TANK 		$1,028.98 (8.6% off) 1
28 193738
THREADED UNION 		$6.58 (14.3% off) 4
29 10261060
COPPER WASHER D.12- 16 X 1.5MM
IN STOCK 		$1.23 4
30 193406
Oil Accumulator Bracket 		$108.30 (14.3% off) 1
31 190162
CLAMP 		$18.88 (25% off) 2
32 194710
PIPE FROM ACCUMULATOR TO CYLINDERS HEADS 		$100.69 (17% off) 2
33 94077843
SCREW 		$15.94 10
