Front Seats: Standard Version

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - FRONT SEATS: STANDARD VERSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66242600 FRONT LH SEAT ASSY INDY (BASE) $7,284.11 To Order
9810042 FRONT RH SEAT ASSY Enquire To Order
66242300 FRONT RH SEAT ASSY INDY (BASE) $7,284.11 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9810045 FIXED FRONT HEADREST Enquire To Order
Photo Part No Description Price (each) Stock
9810047 FRONT LH SEAT REAR PANEL. Enquire To Order
9810048 FRONT RH SEAT REAR PANEL Enquire To Order
Photo Part No Description Price (each) Stock
9810050 RH CASING. Enquire To Order
9810049 LH CASING Enquire To Order
Photo Part No Description Price (each) Stock
9810052 RH SEAT JOINT COVER Enquire To Order
9810051 LH SEAT JOINT COVER Enquire To Order
Photo Part No Description Price (each) Stock
386900311 EASY-ENTRY CONTROL LEVER $76.83 To Order
Photo Part No Description Price (each) Stock
386900312 PLATE $2.86 To Order
Photo Part No Description Price (each) Stock
386900224 R.H. SEAT MOVEMENT CONTROL JOISTICK $183.12 To Order
386900223 L.H. SEAT MOVEMENT CONTROL JOISTICK $193.67 To Order
Photo Part No Description Price (each) Stock
388100336 PASSENGER SEAT BELT LOCK $63.45 To Order
388100337 PILOT SEAT BELT LOCK $125.56 To Order
Photo Part No Description Price (each) Stock
9810046 BUCKLE BRANCH COVER Enquire To Order
Photo Part No Description Price (each) Stock
386900110 EASY-ENTRY CONTROL CABLE + FASTENER KIT $28.11 To Order
Photo Part No Description Price (each) Stock
388100472 FRONT SHIELD FOR FRONT SEAT GUIDE $7.53 To Order
Photo Part No Description Price (each) Stock
388100474 REAR SHIELD FOR FRONT SEAT GUIDE $6.51 To Order
Photo Part No Description Price (each) Stock
9810039 FRONT LH SEAT COVERS KIT Enquire To Order
9810093 FRONT LH SEAT COVERS KIT Enquire To Order
9810040 FRONT RH SEAT COVERS KIT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
376900302 SCREW $6.10 To Order
Photo Part No Description Price (each) Stock
386900302 PLATE $1.30 IN STOCK
Photo Part No Description Price (each) Stock
386900405 NUT SCREW $5.27 To Order
Photo Part No Description Price (each) Stock
386900500 BACK SEAT PADDING $133.10 To Order
Photo Part No Description Price (each) Stock
386900501 LH. CUSHION PADDING $119.89 To Order
386900502 R.H. CUSHION PADDING $112.78 To Order
View All

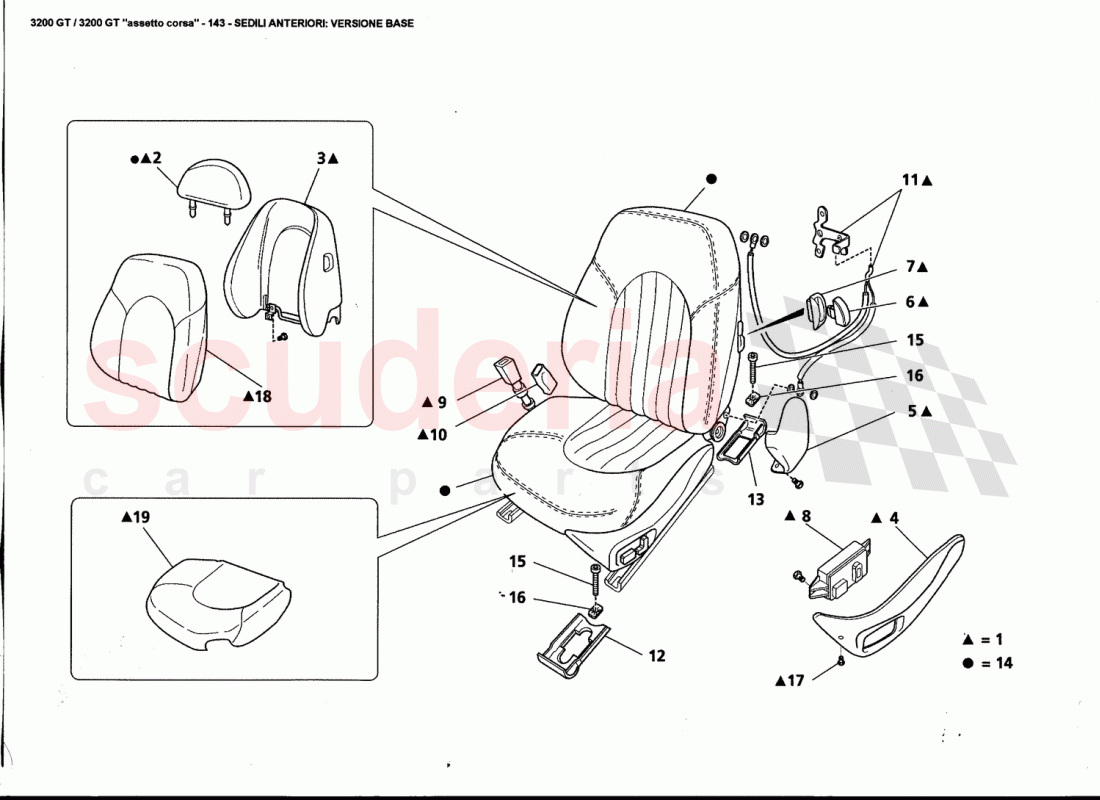

FRONT SEATS: STANDARD VERSION of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 66242600
FRONT LH SEAT ASSY INDY (BASE)
Optional / Only GS / In the order add the colors 		$7,284.11 1
1 9810042
FRONT RH SEAT ASSY
Only GS / In the order, add the two digits of color code 		- 1 Enquire
1 66242300
FRONT RH SEAT ASSY INDY (BASE)
Optional / Only GS / In the order add the colors 		$7,284.11 1
1 9810043
FRONT LH SEAT ASSY
Only GD / In the order, add the two digits of color code 		- 1 Enquire
1 66243400
FRONT LH SEAT ASSY INDY (BASE)
Optional / Only GD / In the order add the colors 		$7,284.11 1
1 9810044
FRONT RH SEAT ASSY`-Only GD - In the order, add the two digits of colour code-
Only GD / In the order, add the two digits of color code 		- 1 Enquire
1 66243100
FRONT RH SEAT ASSY INDY (BASE)
Optional / Only GD / In the order add the colors 		$7,284.11 1
1 9810041
FRONT LH SEAT ASSY
Only GS / In the order, add the two digits of color code 		- 1 Enquire
2 9810045
FIXED FRONT HEADREST
In the order, add the two digits of color code 		- 2 Enquire
3 9810047
FRONT LH SEAT REAR PANEL.
In the order, add the two digits of color code 		- 1 Enquire
3 9810048
FRONT RH SEAT REAR PANEL
In the order, add the two digits of color code 		- 1 Enquire
4 9810050
RH CASING.
In the order, add the two digits of color code 		- 1 Enquire
4 9810049
LH CASING
In the order, add the two digits of color code 		- 1 Enquire
5 9810052
RH SEAT JOINT COVER
In the order, add the two digits of color code 		- 1 Enquire
5 9810051
LH SEAT JOINT COVER
In the order, add the two digits of color code 		- 1 Enquire
6 386900311
EASY-ENTRY CONTROL LEVER 		$76.83 2
7 386900312
PLATE 		$2.86 2
8 386900224
R.H. SEAT MOVEMENT CONTROL JOISTICK 		$183.12 (32.2% off) 1
8 386900223
L.H. SEAT MOVEMENT CONTROL JOISTICK 		$193.67 1
9 388100336
PASSENGER SEAT BELT LOCK 		$63.45 (21.8% off) 1
9 388100337
PILOT SEAT BELT LOCK 		$125.56 (29.6% off) 1
10 9810046
BUCKLE BRANCH COVER
In the order, add the two digits of color code 		- 2 Enquire
11 386900110
EASY-ENTRY CONTROL CABLE + FASTENER KIT 		$28.11 2
12 388100472
FRONT SHIELD FOR FRONT SEAT GUIDE 		$7.53 4
13 388100474
REAR SHIELD FOR FRONT SEAT GUIDE 		$6.51 (18.8% off) 4
14 9810039
FRONT LH SEAT COVERS KIT
In the order, add the two digits of color code / Valid till Ass. Nr. 2585 		- 1 Enquire
14 9810093
FRONT LH SEAT COVERS KIT
In the order, add the two digits of color code / Valid from Ass. Nr. 2586 		- 1 Enquire
14 9810040
FRONT RH SEAT COVERS KIT
In the order, add the two digits of color code / Valid till Ass. Nr. 2585 		- 1 Enquire
14 9810094
FRONT RH SEAT COVERS KIT
In the order, add the two digits of color code / Valid from Ass. Nr. 2586 		- 1 Enquire
15 376900302
SCREW 		$6.10 8
16 386900302
PLATE
IN STOCK 		$1.30 8
17 386900405
NUT SCREW 		$5.27 (1.5% off) 2
18 386900500
BACK SEAT PADDING 		$133.10 2
19 386900501
LH. CUSHION PADDING 		$119.89 1
19 386900502
R.H. CUSHION PADDING 		$112.78 1
