Dashboard

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - DASHBOARD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9810002 DASHBOARD Enquire To Order
9810001 DASHBOARD Enquire To Order
Photo Part No Description Price (each) Stock
9810004 COMPLETE UPPER INSERT IN Enquire To Order
9810003 UPPER FACE Enquire To Order
Photo Part No Description Price (each) Stock
67293500 UPPER FRAME $164.06 To Order
382300614 UPPER FRAME $141.55 To Order
Photo Part No Description Price (each) Stock
9810006 PASSENGER SIDE AIRBAG MODULE Enquire To Order
9810005 PASSENGER SIDE AIRBAG MODULE Enquire To Order
Photo Part No Description Price (each) Stock
382300381 GAS SPRING $101.60 To Order
Photo Part No Description Price (each) Stock
382300840 MODEL CODE ON DASHBOARD COMP. $48.45 To Order
Photo Part No Description Price (each) Stock
716338000 SIDE LAMP $149.05 To Order
Photo Part No Description Price (each) Stock
382310103 ODDMENTS TRAY ASSY $306.67 To Order
382300103 ODDMENTS TRAY ASSY $337.78 To Order
Photo Part No Description Price (each) Stock
382300806 COMPLETE LOCK $95.56 To Order
382310598 COMPLETE LOCK $434.65 To Order
Photo Part No Description Price (each) Stock
382300116 GLOVE BOX HINGE $236.89 To Order
Photo Part No Description Price (each) Stock
9810010 RH LOWER SIDE COATING ASSY Enquire To Order
9810008 RH LOWER SIDE COATING ASSY Enquire To Order
Photo Part No Description Price (each) Stock
9810012 GEARSHIFT LEVER BOOT ASSY Enquire To Order
9810013 GEARSHIFT LEVER BOOT ASSY Enquire To Order
9810014 GEARSHIFT LEVER BOOT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
9810009 LH LOWER SIDE COATING ASSY Enquire To Order
9810007 LH LOWER SIDE COATING ASSY Enquire To Order
Photo Part No Description Price (each) Stock
9810011 STEERING COLUMN BELLOWS LEATHER Enquire To Order
Photo Part No Description Price (each) Stock
9810015 GLOVE COMPARTMENT ASSY Enquire To Order
9810016 GLOVE COMPARTMENT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
382300252 CARBON CENTRE CONSOLE $1,981.96 To Order
382300230 LEATHER CENTRE CONSOLE $362.44 To Order
980001009 LEATHER CENTRE CONSOLE $427.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65423900 AIR-BAG SYSTEM USE PLATE $7.20 To Order
65424100 AIR-BAG SYSTEM PRESENCE PLATE $6.98 To Order
Photo Part No Description Price (each) Stock
382300424 PIN $1.09 To Order
Photo Part No Description Price (each) Stock
382300423 CLIP $2.81 To Order
Photo Part No Description Price (each) Stock
60616620 RUBBER $1.56 To Order
Photo Part No Description Price (each) Stock
66791700 RACING TRIM NUMBER PLATE $92.66 To Order
66791600 RACING TRIM NUMBER PLATE $90.88 To Order
66791500 RACING TRIM NUMBER PLATE $92.66 To Order
...and 2 more part variants. See table on right for more details.
View All

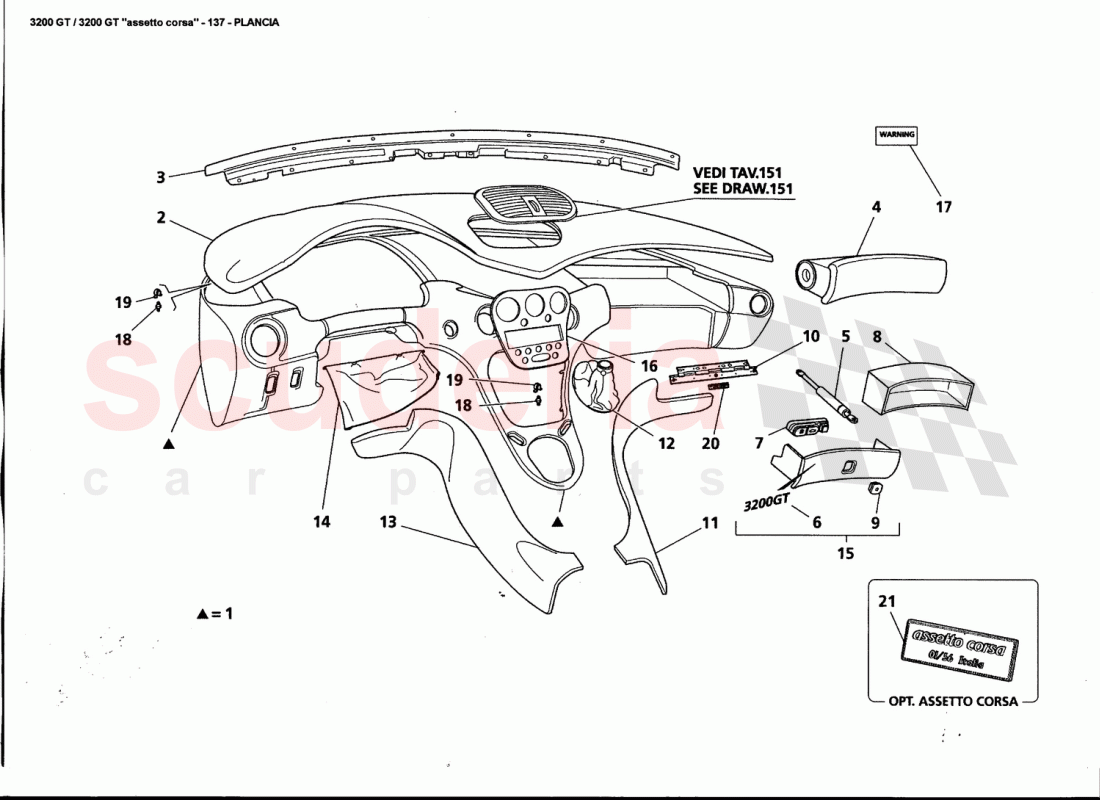

DASHBOARD of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9810002
DASHBOARD
Only GD / In the order, add the two digits of color code 		- 1 Enquire
1 9810001
DASHBOARD
Only GS / In the order, add the two digits of color code 		- 1 Enquire
2 9810004
COMPLETE UPPER INSERT IN
Only GD / In the order, add the two digits of color code 		- 1 Enquire
2 9810003
UPPER FACE
Only GS / In the order, add the two digits of color code 		- 1 Enquire
3 67293500
UPPER FRAME
Only GD 		$164.06 1
3 382300614
UPPER FRAME
Only GS 		$141.55 (14.9% off) 1
4 9810006
PASSENGER SIDE AIRBAG MODULE
Only GD / In the order, add the two digits of color code 		- 1 Enquire
4 9810005
PASSENGER SIDE AIRBAG MODULE
Only GS / In the order, add the two digits of color code 		- 1 Enquire
5 382300381
GAS SPRING 		$101.60 (22.3% off) 1
6 382300840
MODEL CODE ON DASHBOARD COMP. 		$48.45 1
7 716338000
SIDE LAMP 		$149.05 (12.8% off) 1
8 382310103
ODDMENTS TRAY ASSY
Only GD 		$306.67 1
8 382300103
ODDMENTS TRAY ASSY
Only GS 		$337.78 1
9 382300806
COMPLETE LOCK
Only GS 		$95.56 (10.1% off) 1
9 382310598
COMPLETE LOCK
Only GD 		$434.65 (9.8% off) 1
10 382300116
GLOVE BOX HINGE 		$236.89 (14.7% off) 1
11 9810010
RH LOWER SIDE COATING ASSY
Only GD / In the order, add the two digits of color code 		- 1 Enquire
11 9810008
RH LOWER SIDE COATING ASSY
Only GS / In the order, add the two digits of color code 		- 1 Enquire
12 9810012
GEARSHIFT LEVER BOOT ASSY
Valid for Manual Trasmission / In the order, add the two digits of color code 		- 1 Enquire
12 9810013
GEARSHIFT LEVER BOOT ASSY
Valid for Automatic Trasmission / Only GS / In the order, add the two digits of color code 		- 1 Enquire
12 9810014
GEARSHIFT LEVER BOOT ASSY
Valid for Automatic Trasmission / Only GD / In the order, add the two digits of color code 		- 1 Enquire
13 9810009
LH LOWER SIDE COATING ASSY
Only GD / In the order, add the two digits of color code 		- 1 Enquire
13 9810007
LH LOWER SIDE COATING ASSY
Only GS / In the order, add the two digits of color code 		- 1 Enquire
14 9810011
STEERING COLUMN BELLOWS LEATHER
In the order, add the two digits of color code 		- 1 Enquire
15 9810015
GLOVE COMPARTMENT ASSY
Only GS / In the order, add the two digits of color code 		- 1 Enquire
15 9810016
GLOVE COMPARTMENT ASSY
Only GD / In the order, add the two digits of color code 		- 1 Enquire
16 382300252
CARBON CENTRE CONSOLE
Optional 		$1,981.96 1
16 382300230
LEATHER CENTRE CONSOLE
Standard black 		$362.44 1
16 980001009
LEATHER CENTRE CONSOLE
Optional / Coloured leather / In the order, specify car number 		$427.85 1
16 382300100
BRIARWOOD CENTRE CONSOLE
Optional 		$729.11 1
17 65423900
AIR-BAG SYSTEM USE PLATE
AUS 		$7.20 1
17 65424100
AIR-BAG SYSTEM PRESENCE PLATE
AUS 		$6.98 1
18 382300424
PIN 		$1.09 6
19 382300423
CLIP 		$2.81 6
20 60616620
RUBBER 		$1.56 1
21 66791700
RACING TRIM NUMBER PLATE
Optional / Racing trim / Valid for GB 		$92.66 1
21 66791600
RACING TRIM NUMBER PLATE
Optional / Racing trim / Valid for Italy 		$90.88 1
21 66791500
RACING TRIM NUMBER PLATE
Optional / Racing trim / Valid for Greece 		$92.66 1
21 66791300
RACING TRIM NUMBER PLATE
Optional / Racing trim / Valid for AUS 		$92.66 1
21 66791200
RACING TRIM NUMBER PLATE
Optional / Racing trim / Valid for J 		$92.66 1
