Front Subframe: Steering Box Fastening

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - FRONT SUBFRAME: STEERING BOX FASTENING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11343821 Hex Head Bolt M10 x 1.25 $12.62 IN STOCK
Photo Part No Description Price (each) Stock
11190574 WASHERD.10.5-20X2.3 $1.75 IN STOCK
Photo Part No Description Price (each) Stock
382700148 CROSS MEMBER $448.97 To Order
382700148 CROSS MEMBER $448.97 To Order
Photo Part No Description Price (each) Stock
394250100 ENGINE FLEXIBLE SUPPORT $631.52 To Order
Photo Part No Description Price (each) Stock
12601474 Wavy Washer 10mm $1.42 IN STOCK
Photo Part No Description Price (each) Stock
10732501 BLANK WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
15970921 SCREW $2.14 To Order
Photo Part No Description Price (each) Stock
12641024 WASHER $3.02 To Order
Photo Part No Description Price (each) Stock
11190574 WASHERD.10.5-20X2.3 $1.75 IN STOCK
Photo Part No Description Price (each) Stock
11343821 Hex Head Bolt M10 x 1.25 $12.62 IN STOCK
Photo Part No Description Price (each) Stock
382700102 FRONT UNDERBODY $7,455.90 To Order
Photo Part No Description Price (each) Stock
382700420 SHIM PLATE TH.1 $3.13 To Order
382705420 SHIM PLATE TH.0,5 $3.18 To Order
382700421 SHIM PLATE TH.1,5 $3.76 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12620774 WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
12626224 WASHER $2.26 IN STOCK
Photo Part No Description Price (each) Stock
11306934 SCREW $4.02 To Order
Photo Part No Description Price (each) Stock
10732501 BLANK WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
10569579 RETAINING WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
14422521 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
386110025 STEERING BOX SHIELD $201.64 To Order
386100025 STEERING BOX SHIELD $211.29 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
12574521 NUT $1.56 To Order
View All

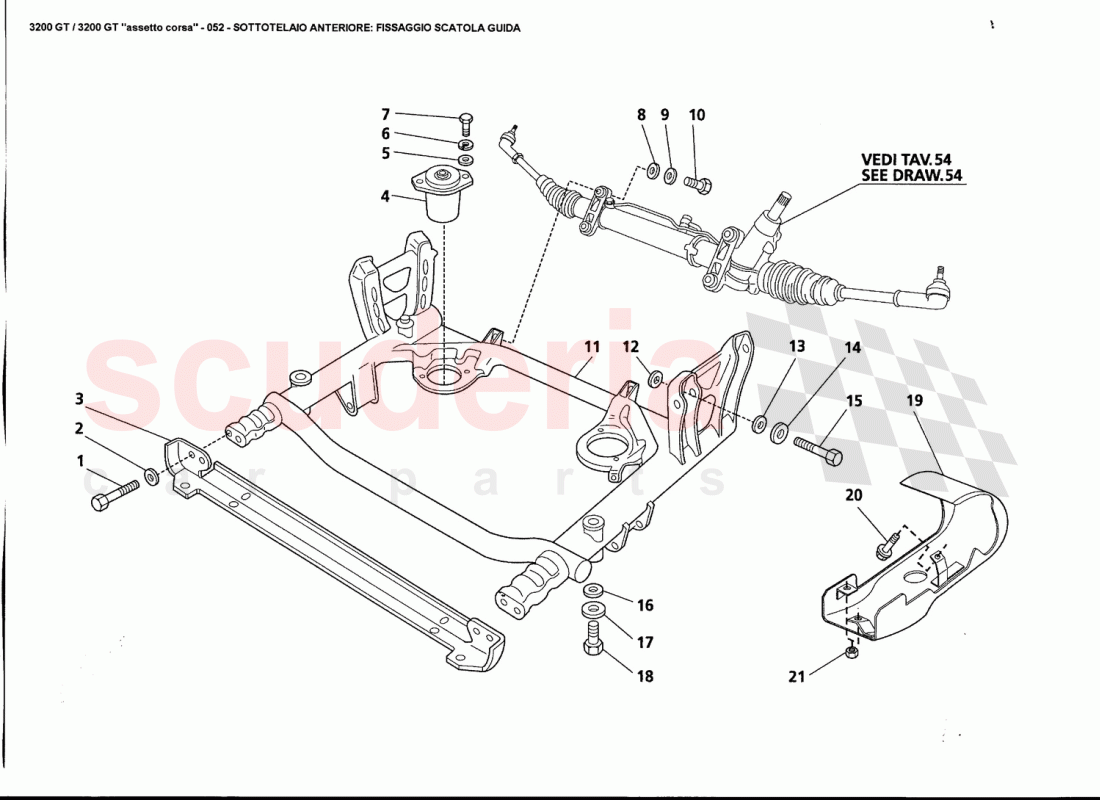

FRONT SUBFRAME: STEERING BOX FASTENING of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11343821
Hex Head Bolt M10 x 1.25
IN STOCK 		$12.62 4
2 11190574
WASHERD.10.5-20X2.3
IN STOCK 		$1.75 4
3 382700148
CROSS MEMBER
Post-modification: From assy 1576 		$448.97 1
3 382700148
CROSS MEMBER
Pre-modification: Up to assy 1575 		$448.97 1
4 394250100
ENGINE FLEXIBLE SUPPORT 		$631.52 2
5 12601474
Wavy Washer 10mm
IN STOCK 		$1.42 4
6 10732501
BLANK WASHER 		$1.38 4
7 15970921
SCREW 		$2.14 4
8 12641024
WASHER 		$3.02 4
9 11190574
WASHERD.10.5-20X2.3
IN STOCK 		$1.75 4
10 11343821
Hex Head Bolt M10 x 1.25
IN STOCK 		$12.62 4
11 382700102
FRONT UNDERBODY 		$7,455.90 1
12 382700420
SHIM PLATE TH.1
According to necessity / Valid till Ass.Nr.3294- 		$3.13 -
12 382705420
SHIM PLATE TH.0,5
According to necessity / Valid from Ass.Nr.3295- 		$3.18 -
12 382700421
SHIM PLATE TH.1,5
According to necessity / Valid till Ass.Nr.3294 		$3.76 -
12 382705421
SHIM PLATE TH.1
According to necessity / Valid from Ass.Nr.3295 		$3.76 -
12 382700422
SHIM PLATE TH.2
According to necessity / Valid till Ass.Nr.3294 		$11.73 -
12 382705422
SHIM PLATE TH.2
According to necessity / Valid from Ass.Nr.3295 		$11.73 -
13 12620774
WASHER 		$1.77 4
14 12626224
WASHER
IN STOCK 		$2.26 4
15 11306934
SCREW 		$4.02 4
16 10732501
BLANK WASHER 		$1.38 4
17 10569579
RETAINING WASHER 		$1.56 4
18 14422521
SCREW 		$2.52 4
19 386110025
STEERING BOX SHIELD
Only RH guide 		$201.64 1
19 386100025
STEERING BOX SHIELD
Only LH guide 		$211.29 1
20 11730624
SCREW 		$2.52 1
21 12574521
NUT 		$1.56 2
