Rear

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B813541A FRAME FOR COOLANT RADIATOR $1,035.66 To Order
Photo Part No Description Price (each) Stock
47B813542A FRAME FOR COOLANT RADIATOR $1,035.66 To Order
Photo Part No Description Price (each) Stock
47B813535A BRACKET $33.57 To Order
47B813536A BRACKET $33.57 To Order
Photo Part No Description Price (each) Stock
47B813537A BRACKET $45.07 To Order
47B813538A BRACKET $45.07 To Order
Photo Part No Description Price (each) Stock
47B813545B BRACKET $452.10 To Order
47B813546B BRACKET $452.10 To Order
Photo Part No Description Price (each) Stock
47B813651A BRACKET $56.92 To Order
47B813652A BRACKET $56.92 To Order
Photo Part No Description Price (each) Stock
47B813327A BRACKET $18.23 To Order
47B813328A BRACKET $18.23 To Order
Photo Part No Description Price (each) Stock
47B813045A BRACKET $95.43 To Order
Photo Part No Description Price (each) Stock
47B813046A BRACKET $52.09 To Order
Photo Part No Description Price (each) Stock
47B813657A BRACKET $37.94 To Order
47B813658A BRACKET $37.94 To Order
Photo Part No Description Price (each) Stock
47B813191B RETAINER PLATE $79.67 To Order
47B813192B RETAINER PLATE $79.67 To Order
Photo Part No Description Price (each) Stock
N91074201 HEXAGON SOCKET HEAD BOLT $1.25 IN STOCK
Photo Part No Description Price (each) Stock
N10483102 HEX SOCKET HEAD BOLT (COMBI) $1.88 IN STOCK
Photo Part No Description Price (each) Stock
N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 $1.74 IN STOCK
Photo Part No Description Price (each) Stock
N10661002 HEX SOCKET OVAL HEAD COLLARED $1.43 IN STOCK
View All

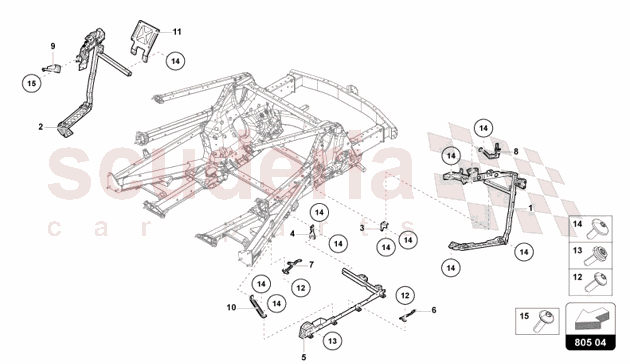

REAR of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B813541A
FRAME FOR COOLANT RADIATOR
LEFT 		$1,035.66 1
2 47B813542A
FRAME FOR COOLANT RADIATOR
RIGHT 		$1,035.66 1
3 47B813535A
BRACKET
LEFT 		$33.57 1
3 47B813536A
BRACKET
RIGHT 		$33.57 1
4 47B813537A
BRACKET
LEFT 		$45.07 1
4 47B813538A
BRACKET
RIGHT 		$45.07 1
5 47B813545B
BRACKET
LEFT 		$452.10 1
5 47B813546B
BRACKET
RIGHT 		$452.10 1
6 47B813651A
BRACKET
LEFT 		$56.92 1
6 47B813652A
BRACKET
RIGHT 		$56.92 1
7 47B813327A
BRACKET
LEFT 		$18.23 1
7 47B813328A
BRACKET
RIGHT 		$18.23 1
8 47B813045A
BRACKET 		$95.43 1
9 47B813046A
BRACKET 		$52.09 1
10 47B813657A
BRACKET
LEFT 		$37.94 1
10 47B813658A
BRACKET
RIGHT 		$37.94 1
11 47B813191B
RETAINER PLATE
LEFT 		$79.67 1
11 47B813192B
RETAINER PLATE
RIGHT 		$79.67 1
12 N91074201
HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.25 1
13 N10483102
HEX SOCKET HEAD BOLT (COMBI)
M6X50
IN STOCK 		$1.88 (73.7% off) 1
14 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
M6X16
IN STOCK 		$1.74 1
15 N10661002
HEX SOCKET OVAL HEAD COLLARED
M6X20
IN STOCK 		$1.43 (80.3% off) 1
