Rear

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B814157A FRAME $1,762.85 To Order
Photo Part No Description Price (each) Stock
47B814158A FRAME $2,007.49 To Order
Photo Part No Description Price (each) Stock
47B814463A FRAME $471.68 To Order
Photo Part No Description Price (each) Stock
47B813753B SUPPORT FOR BUMPER $380.17 To Order
47B813754B SUPPORT FOR BUMPER $380.17 To Order
Photo Part No Description Price (each) Stock
47B813643 BRACKET $28.31 To Order
Photo Part No Description Price (each) Stock
47B813391 BRACKET $36.52 To Order
Photo Part No Description Price (each) Stock
47B813745A HOLDER FOR BUMPER BRACKET $36.64 To Order
47B813746A HOLDER FOR BUMPER BRACKET $36.64 To Order
Photo Part No Description Price (each) Stock
47B813695B BRACKET $121.47 To Order
47B813696B BRACKET $121.47 To Order
Photo Part No Description Price (each) Stock
47B813415A AIR DUCT $46.63 To Order
Photo Part No Description Price (each) Stock
47B813743A HOLDER FOR BUMPER BRACKET $77.43 To Order
47B813744A HOLDER FOR BUMPER BRACKET $77.43 To Order
Photo Part No Description Price (each) Stock
8P7806305 COMPENSATING PIECE $15.69 To Order
Photo Part No Description Price (each) Stock
N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $2.65 IN STOCK
Photo Part No Description Price (each) Stock
N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 $1.75 IN STOCK
Photo Part No Description Price (each) Stock
N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $2.65 IN STOCK
Photo Part No Description Price (each) Stock
N10661002 HEX SOCKET OVAL HEAD COLLARED $1.43 IN STOCK
Photo Part No Description Price (each) Stock
N90692402 POP RIVET $1.76 IN STOCK
View All

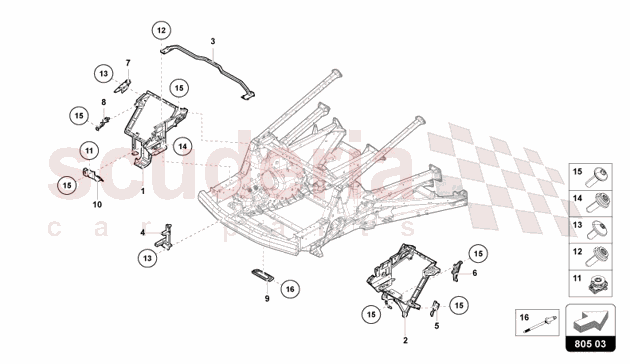

REAR of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B814157A
FRAME
LEFT 		$1,762.85 1
2 47B814158A
FRAME
RIGHT 		$2,007.49 1
3 47B814463A
FRAME 		$471.68 1
4 47B813753B
SUPPORT FOR BUMPER
LEFT 		$380.17 1
4 47B813754B
SUPPORT FOR BUMPER
RIGHT 		$380.17 1
5 47B813643
BRACKET 		$28.31 1
6 47B813391
BRACKET 		$36.52 1
7 47B813745A
HOLDER FOR BUMPER BRACKET
LEFT 		$36.64 1
7 47B813746A
HOLDER FOR BUMPER BRACKET
RIGHT 		$36.64 1
8 47B813695B
BRACKET
LEFT 		$121.47 1
8 47B813696B
BRACKET
RIGHT 		$121.47 1
9 47B813415A
AIR DUCT 		$46.63 1
10 47B813743A
HOLDER FOR BUMPER BRACKET
LEFT 		$77.43 1
10 47B813744A
HOLDER FOR BUMPER BRACKET
RIGHT 		$77.43 1
11 8P7806305
COMPENSATING PIECE
0,8MM 		$15.69 1
12 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$2.65 (63.3% off) 1
13 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
M6X16
IN STOCK 		$1.75 1
14 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$2.65 (63.3% off) 1
15 N10661002
HEX SOCKET OVAL HEAD COLLARED
M6X20
IN STOCK 		$1.43 (80.3% off) 1
16 N90692402
POP RIVET
4,8X10 N906924
IN STOCK 		$1.76 (75.4% off) 1
