Lamborghini Murcielago Roadster - Passenger Compartment Trims 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

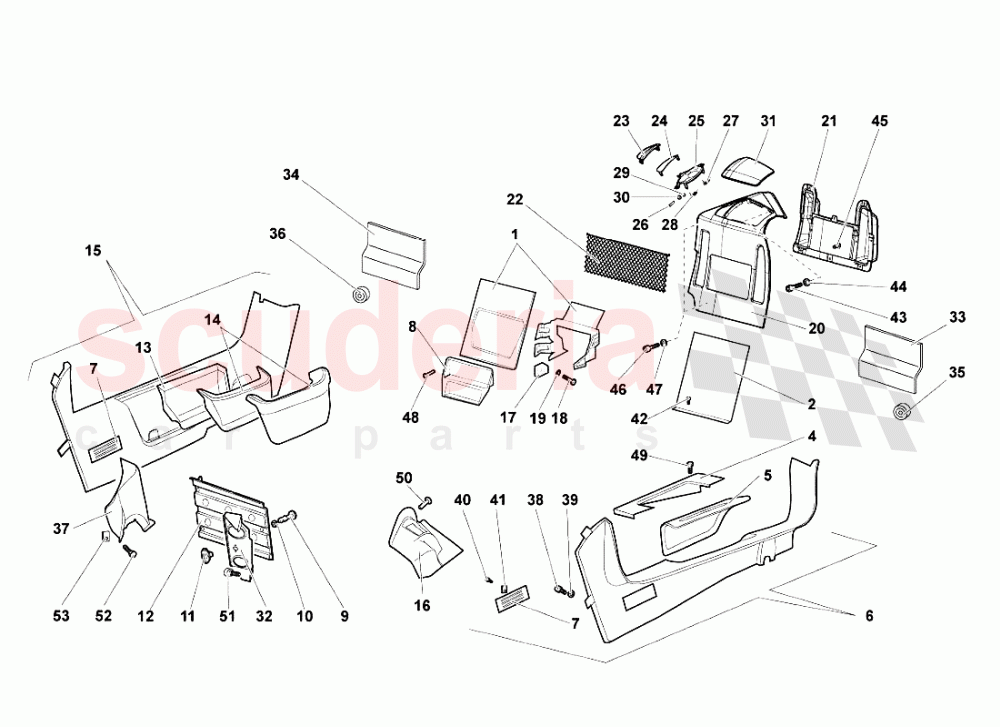

Passenger Compartment Trims 2 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 417867478
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND RIGHT SEAT (Supply VIN) 		$1,103.53 1
002 417867477
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$737.76 1
004 418863343
COVERING (Supply VIN) 		- 1 Enquire
005 78013702
LEFT FIXED DOOR ASSEMBLY (Supply VIN) 		$700.06 1
006 417854887A
LEFT SIDE MEMBER COVER ASSEMBLY (SUPPLY VIN) 		$638.70 1
007 400867397
GRID 		$17.47 2
008 410868823A
BECKER ORNAMENT (For Becker Radio System) 		$182.23 1
008 410868823
ORNAMENT 		$134.01 1
009 78010286
JOURNAL 		$18.75 3
010 9458350
RUBBER RING 		$0.82 (88.6% off) 3
011 9458349
CLIP 		$5.58 (9.3% off) 3
012 413864420
PLATE 		$170.94 1
013 418863092
GLOVE BOX 		$194.12 1
014 418863082
GLOVE BOX LID ASSEMBLY (Supply VIN) 		$368.26 1
015 417854888A
RIGHT SIDE MEMBER COVER ASSEMBLY (SUPPLY VIN) 		$615.02 1
016 413721585
ACCELERATOR COVER BOX 		$110.32 1
017 410868357
SPACER (For Becker Radio System) 		$91.66 2
018 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.08 4
019 8400401
WASHER 		$0.12 4
020 417868224
UPHOLSTERY ASSEMBLY BEHIND RIGHT SEAT (Supply VIN) 		$1,840.88 1
020 417868223
UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$1,840.88 1
021 417867404
REAR UPHOLSTERY ASSEMBLY BEHIND RIGHT SEAT (Supply VIN) 		$935.48 1
021 417867403
REAR UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$934.22 1
022 417867613
NET 		$64.13 2
023 417868441
LEFT ROTATING FLAP UPHOLSTERY ASSEMBLY (Supply VIN) 		$199.17 1
023 417868442
RIGHT ROTATING FLAP UPHOLSTERY ASSEMBLY (Supply VIN) 		$199.17 1
024 78015639
LEFT INTERIOR COVER 		$133.38 1
024 78015640
RIGHT INTERIOR COVER 		$133.38 1
025 78015650
RH BRACKET 		$231.06 1
025 78015649
LH BRACKET 		$231.06 1
026 410868280
JOURNAL 		$11.91 4
027 417867546
RIGHT SPRING 		$12.16 2
028 417867733
LEFT SPRING 		$12.16 2
029 410863191
RING 		$0.79 (89.1% off) 4
030 8400401
WASHER 		$0.12 4
031 418863576
RIGHT ROLL BAR COVER ASSEMBLY (Supply VIN) 		$398.32 1
031 418863575
LEFT ROLL BAR COVER ASSEMBLY (Supply VIN) 		$381.95 1
032 413864775
SUPPORT (Supply VIN) 		$139.64 1
033 417867385
PROTECTION 		$5.28 2
034 417867385A
PROTECTION 		$6.51 1
035 63000321
TAPE (1 M) 		$9.61 (7.6% off) 1
036 63000321
TAPE (1 M) 		$9.61 (7.6% off) 1
038 N10648502
SCREW M5X10
IN STOCK 		$1.25 (82.6% off) 4
039 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 4
040 WHT003102
SCREW 2.9X13
IN STOCK 		$0.12 (98.4% off) 4
041 WHT003424
CLIP
IN STOCK 		$0.83 (88.6% off) 4
042 WHT003065
SCREW (2,9X16)
IN STOCK 		$1.25 (82.6% off) 6
043 WHT003111
SCREW M5X16
IN STOCK 		$1.08 (85% off) 4
044 N10612001
WASHER
IN STOCK 		$0.50 4
045 400867299
FASTENER LYS FUSION, YELLOW
IN STOCK 		$16.74 4
046 N10648502
SCREW M5X10
IN STOCK 		$1.25 (82.6% off) 6
047 N10612001
WASHER
IN STOCK 		$0.50 6
048 8953123
RIVET 		$0.51 (93% off) 5
049 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.90 (73.6% off) 3
050 N91153701
POP RIVET
IN STOCK 		$0.62 (91.5% off) 5
051 N91126601
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.25 (82.9% off) 2
