Dashboard Instruments

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

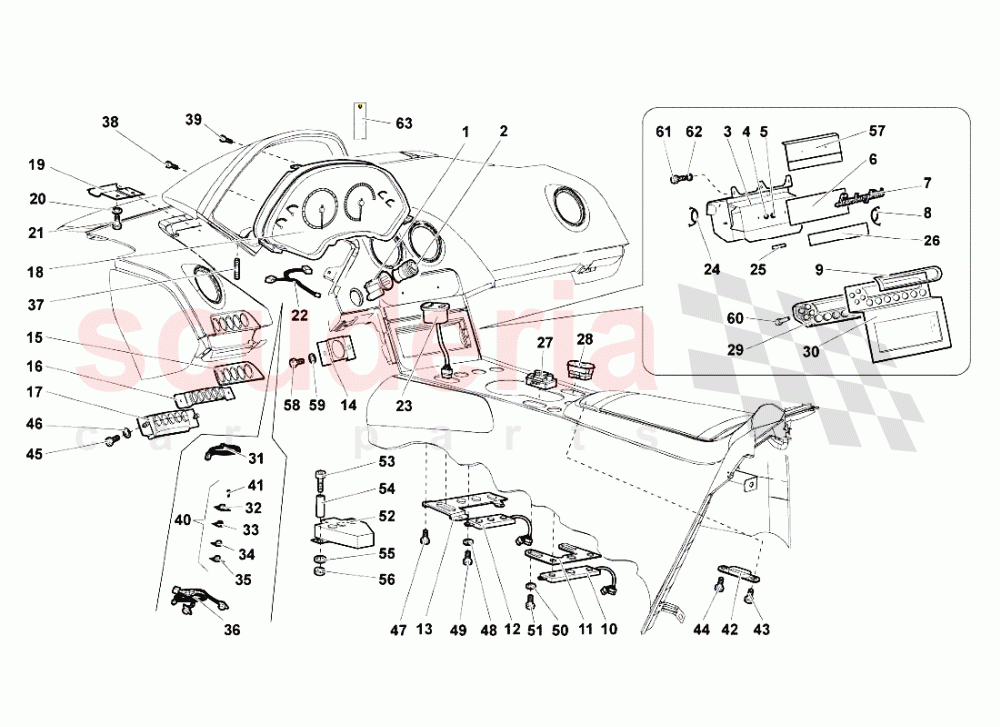

Dashboard Instruments of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410857529
RING 		$85.84 1
002 410919307
LIGHTER 		$59.53 1
003 410861941B
A/C PANEL ASSEMBLY 		$265.95 1
004 8200301
NUT 		$0.07 (99.1% off) 1
005 8410311
WASHER 		$2.50 (7.4% off) 1
006 69013653
LID (Supply VIN) 		$1,042.44 1
007 400853742A
LAMBORGHINI ORNAMENT
IN STOCK 		$381.74 (23.5% off) 1
008 410863432
RIGHT SPRING 		$70.64 1
009 410861719
FRAME 		$203.27 1
010 41797127A
ANSOR KEYBOARD IN THE GEARBOX REAR SIDE 		- 1 Enquire
011 417858092
FRAME (MANUAL GEARBOX) 		$854.27 1
011 417858092A
FRAME (E-GEAR) 		$652.31 1
012 413927143A
ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE 		$324.29 (7.6% off) 1
013 417858091
FRAME 		$686.19 1
014 410858023
BRACKET 		$62.36 1
015 413864147
FRAME 		$200.70 1
015 413863365A
FRAME (CARBON INTERIOR - SUPPLY VIN) 		$3,330.51 1
016 413864107
BRACKET 		$465.50 1
017 413941567A
ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR) 		$2,277.29 1
017 413941567
ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX) 		$1,493.11 1
018 410920900
INSTRUMENT PANEL ASSEMBLY 		$5,432.88 1
018 410920900H
INSTRUMENT PANEL ASSEMBLY KM 		$4,472.03 1
019 410858573
BRACKET 		$72.70 1
020 8400401
WASHER 		$0.12 2
021 8100408
SCREW
IN STOCK 		$0.31 (95.8% off) 2
023 410959565A
SIDE VIEW MIRRORS SWITCH 		$848.02 1
024 410863431
LEFT SPRING 		$70.64 1
025 443803389C
FELT 		$21.48 1
026 410862547
MOLDING 		$553.21 1
027 51009880
KONI KEYBOARD 		$652.31 1
028 410919815
WINDOW POWER SWITCH 		$140.50 1
029 410820043
DIAVIA A/C DASHBOARD ASSEMBLY 		$2,383.41 1
030 410035422A
FRAME (CARBON INTERIOR - SUPPLY VIN) 		$5,958.56 1
030 410035422
Frame
IN STOCK 		$2,045.18 1
031 61013367
WIRING HARNESS 		$480.45 1
037 8300510
STUD BOLT M5X14 		$7.85 2
038 8700430
SCREW M4X16 		$0.15 2
039 8700816
SCREW 		$0.25 (96.6% off) 2
040 410919225
Button Set (For VDO parts)
IN STOCK 		$504.14 1
041 8700202
SCREW 		$0.06 (99.2% off) 8
042 410857851
FRAME 		$270.95 2
043 8700479
SCREW 		$0.19 (97.4% off) 2
044 WHT003302
SCREW M4X6
IN STOCK 		$1.69 (76.2% off) 2
045 N01020717
SCREW M5X12
IN STOCK 		$1.25 (82.9% off) 2
046 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 2
047 8700479
SCREW 		$0.19 (97.4% off) 4
048 8400304
WASHER 		$0.15 (98% off) 4
049 8700337
SCREW 		$0.50 (93.2% off) 4
050 8400401
WASHER 		$0.12 4
051 8700408
SCREW M4X10 		$0.26 (96.5% off) 4
052 417919823
E-GEAR CONTROL PANEL 		$652.31 1
053 N91078401
SCREW 		$15.31 2
054 410857441
SPACER 		$203.85 2
055 WHT002961
WASHER
IN STOCK 		$0.39 2
056 WHT002961
WASHER
IN STOCK 		$0.39 2
057 410864123A
LID (CARBON INTERIOR - SUPPLY VIN) 		$1,580.60 1
058 N10580702
SCREW 		$5.55 2
059 N10612001
WASHER
IN STOCK 		$0.50 2
060 N10613301
SCREW M3X8
IN STOCK 		$1.10 (85% off) 2
061 N10580702
SCREW 		$5.55 3
062 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.09 3
063 63000337
NAMEPLATE FOR A INSTRUMENT PANEL 		$3.79 1
