Passenger Compartment Trims 1

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Passenger Compartment Trims 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

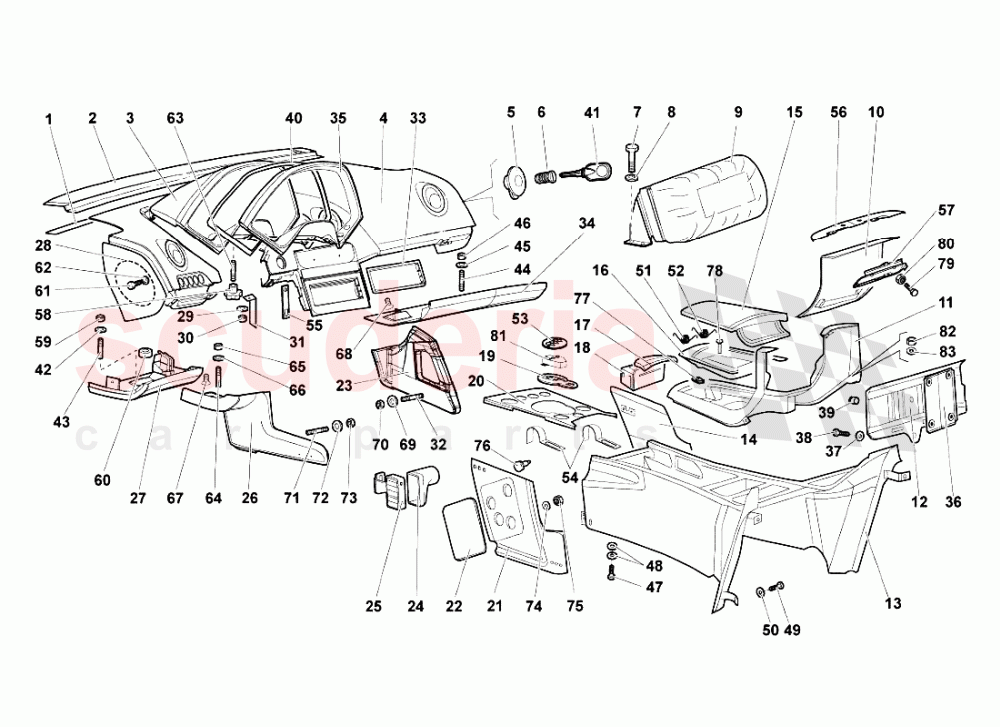

Passenger Compartment Trims 1 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410819018
SEALING TAPE 		$28.78 1
002 410858349
UPPER FRONT DASHBOARD ASSEMBLY 		$4,161.34 1
003 410858278
DASHBOARD COVERING (LEATHER INTERIOR - SUPPLY VIN) 		$2,008.73 1
004 69013999
DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$5,576.79 1
005 410919237
AIRBAG SWITCH 		$125.78 1
006 410919226
AIRBAG BLOCK 		$175.90 1
007 8700611
SCREW UNI 5931 6X14 		$0.46 4
008 WHT002963
WASHER
IN STOCK 		$0.12 (98.4% off) 4
009 413880199
AIR BAG MODULE 		$7,857.49 1
010 418868711
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - E-GEAR) 		$1,308.13 1
010 418868711A
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
011 410864205E
ARMREST CUSHION ASSEMBLY (E-GEAR - CARBON INTERIOR -SUPPLY VIN) 		$5,857.19 1
011 410864205D
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - CARBON INTERIOR) 		$5,927.29 1
011 410863323
ARMREST CUSHION ASSEMBLY (E-GEAR - SUPPLY VIN) 		$1,551.92 1
011 410863323A
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - SUPPLY VIN) 		$4,650.45 1
012 418867925
SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (Supply VIN) 		$564.56 1
013 78013712
TUNNEL COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		$10,475.34 1
013 413863242B
TUNNEL COVER ASSEMBLY (Supply VIN - E-GEAR) 		$9,839.20 1
014 78013706
TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		$774.70 1
015 410863284
GLOVE BOX COVER ASSEMBLY (Supply VIN - E-GEAR) 		$1,030.01 1
015 410863761
GLOVE BOX COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		$1,990.38 1
016 410863300A
GLOVE BOX (E-GEAR) 		$273.47 1
016 410863300
GLOVE BOX (MANUAL GEARBOX) 		$200.88 1
017 413863849
ASHTRAY ASSEMBLY (Supply VIN) 		$330.49 1
017 410857405A
ASHTRAY ASSEMBLY (CARBON INTERIOR) 		$4,173.88 1
018 410857950
ASH TRAY 4B0857406 		$469.43 1
019 410711139
FRAME (MANUAL GEARBOX) 		$2,640.75 1
019 410713221
FRAME (FROM VIN 1304 L147EG - E-GEAR) 		$942.42 1
020 418863315A
ORNAMENT (FROM VIN 1304 L147EG - E-GEAR - SUPPLY VIN) 		$1,095.34 1
020 418863315E
ORNAMENT (E-GEAR - CARBON INTERIOR - SUPPLY VIN) 		$3,016.20 1
020 418863315
ORNAMENT (Supply VIN - MANUAL GEARBOX) 		$1,095.34 1
020 418863315D
ORNAMENT (MANUAL GEARBOX - CARBON INTERIOR) 		$2,972.40 1
021 78013687
TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		$876.07 1
022 413868681
PLATE 		$53.69 1
023 413857607A
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (CARBON INTERIOR) 		$3,492.54 1
023 413857927C
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$789.91 1
024 410864255
OUTLET 		$260.93 1
025 410864877
AIR PIPE UNION GRID, DRIVER@S SIDE 		$118.77 1
026 69013655
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$1,161.43 1
027 413858793A
LOWER LEFT DASHBOARD ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$622.16 1
028 69013669
LEFT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$593.35 1
028 69013670
RIGHT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$593.35 1
029 N01152427
WASHER
IN STOCK 		$0.28 1
030 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 1
031 410857320
BRACKET 		$9.82 1
032 WHT003116
STUD BOLT M5X25 		$10.45 1
032 8300510
STUD BOLT M5X14 		$7.83 1
033 410035313
BRACKET 		$41.18 1
033 410035314
BECKER BRACKET (For Becker Radio System) 		$73.86 1
034 413857504
LOWER RIGHT DASHBOARD ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		$277.90 1
035 410858277
FRAME 		$373.03 1
035 410858277A
FRAME (CARBON INTERIOR) 		$4,849.71 1
036 410857350
SHEET 		$142.10 1
037 N90840802
WASHER
IN STOCK 		$0.44 (94% off) 1
038 WHT000766
SCREW 2,9X9,5 		$0.08 1
039 410919242
FRAME 		$29.61 1
040 410858177
GASKET 		$4.83 1
041 410860163
AIRBAG KEY
IN STOCK 		$44.14 1
042 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 3
043 WHT003116
STUD BOLT M5X25 		$10.45 1
043 8300510
STUD BOLT M5X14 		$7.83 2
044 WHT003116
STUD BOLT M5X25 		$10.45 2
045 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 2
046 WHT000760
NUT M5 		$0.12 2
047 WHT003069
SCREW M6X1X20 		$42.11 2
048 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.07 4
049 WHT003069
SCREW M6X1X20 		$42.11 4
050 WHT002961
WASHER
IN STOCK 		$0.39 4
051 410863285A
SPRING (E-GEAR) 		$57.72 1
051 410863285
SPRING (MANUAL GEARBOX) 		$45.76 1
052 410863286A
SPRING (E-GEAR) 		$57.72 1
052 410863286
SPRING (MANUAL GEARBOX) 		$45.76 1
053 400713110D
SELECTOR (E-GEAR) 		$923.84 1
054 410864191
SUPPORT (E-GEAR) 		$51.38 2
055 410035329
BRACKET 		$60.51 2
056 418863274
TUNNEL REAR TOP BODY ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
057 417867970
DOME LIGHT BEZEL ON FIXED COVER 		$53.99 1
058 410858482
HANDLE 		$10.16 2
059 WHT000760
NUT M5 		$0.12 3
060 400804347
SPACER 		$16.47 1
061 WHT003069
SCREW M6X1X20 		$42.11 2
062 WHT002961
WASHER
IN STOCK 		$0.39 2
063 8300510
STUD BOLT M5X14 		$7.83 2
064 WHT003116
STUD BOLT M5X25 		$10.45 1
065 WHT000760
NUT M5 		$0.12 1
066 WHT002961
WASHER
IN STOCK 		$0.39 1
067 410863988
PLUG 		$1.01 (86% off) 1
068 400867299
FASTENER LYS FUSION, YELLOW
IN STOCK 		$16.73 2
069 WHT002961
WASHER
IN STOCK 		$0.39 3
070 WHT000760
NUT M5 		$0.12 3
071 8300402
STUD BOLT M4X16 		$7.76 (9.8% off) 2
072 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 2
073 WHT002959
CLAMPING NUT
IN STOCK 		$0.77 (89.4% off) 2
074 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 4
075 WHT002959
CLAMPING NUT
IN STOCK 		$0.77 (89.4% off) 4
076 400863119
BUNGS
IN STOCK 		$0.39 (94.7% off) 5
077 N91104501
CLIP
IN STOCK 		$38.99 5
079 N01020717
SCREW M5X12
IN STOCK 		$1.25 (82.9% off) 3
080 WHT000760
NUT M5 		$0.12 3
082 WHT002959
CLAMPING NUT
IN STOCK 		$0.77 (89.4% off) 4
083 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 4
