Doors 2

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Doors 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

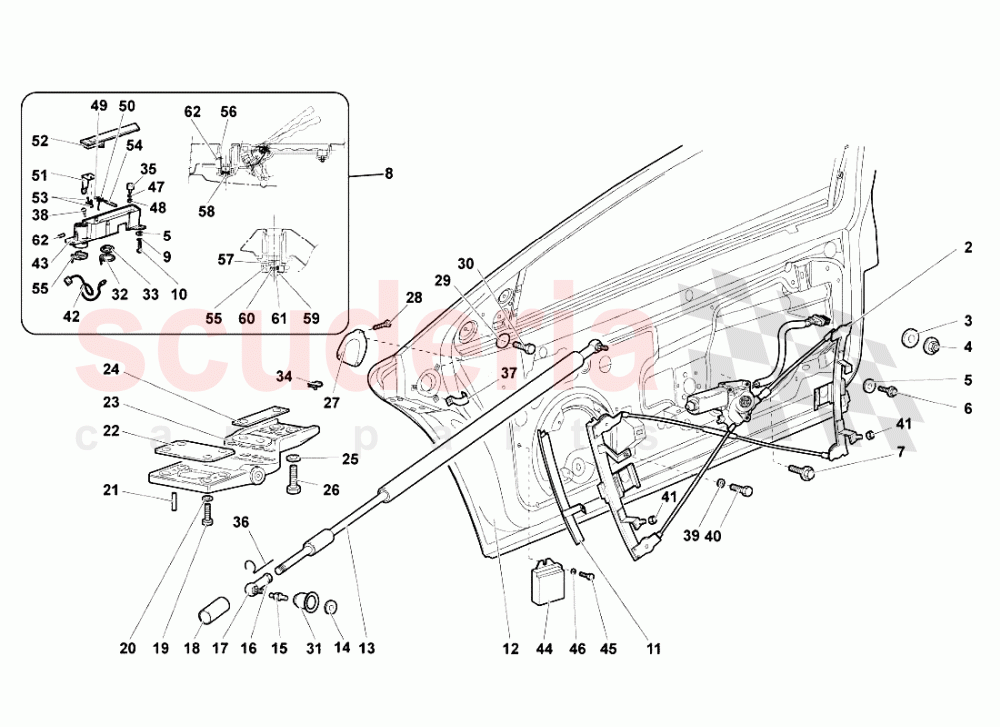

Doors 2 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 417837397A
LH POWER WINDOW ASSEMBLY 		$1,439.28 1
002 417837398A
RIGHT DOOR POWER WINDOW ASSEMBLY 		$1,439.28 1
003 WHT002961
WASHER
IN STOCK 		$0.39 3
004 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 3
005 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.07 4
006 N01020717
SCREW M5X12
IN STOCK 		$1.25 (82.9% off) 4
007 N91049601
OVAL HEAD PANEL SCREW (COMBI)
IN STOCK 		$0.95 (87% off) 6
010 WHT003111
SCREW M5X16
IN STOCK 		$1.08 (85% off) 3
012 417831051
LEFT DOOR FRAME ASSEMBLY 		$10,444.04 1
012 417831052
RIGHT DOOR FRAME ASSEMBLY
(RHD model) 		$10,444.04 1
013 410837987
Door Strut
IN STOCK 		$121.71 2
014 WHT000771
WASHER
IN STOCK 		$1.11 1
015 410837646A
JOURNAL 		$8.63 1
016 N01100845
HEXAGON NUT
IN STOCK 		$1.94 1
017 410837262
JACK HEAD 		$8.45 1
018 410837801A
SHEATH
IN STOCK 		$48.07 1
019 8101008
SCREW 		$15.04 4
020 8411015
WASHER 		$10.53 (10% off) 4
021 8900401
PIN
IN STOCK 		$0.24 (96.7% off) 2
022 410837983B
1.2 MM SHIM 		$15.46 1
022 410837983A
1.0 MM SHIM 		$18.90 1
022 410837983C
1.5 MM SHIM 		$18.53 1
022 410837983
0.8 MM SHIM 		$17.08 1
023 9421030
LH HINGE 		$1,190.19 (10.8% off) 1
023 410831402
RH HINGE 		$1,085.08 1
024 410837944A
1.00 ADJUSTMENT SHIM 		$18.09 1
024 410837984
2.00 ADJUSTMENT SHIM 		$21.48 1
025 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 4
026 8100821
SCREW 		$1.20 4
027 410867251
ORNAMENT 		$125.78 1
028 8700416
SCREW 		$0.15 (98% off) 3
029 WHT002961
WASHER
IN STOCK 		$0.39 3
030 N90319404
SCREW
IN STOCK 		$2.08 3
031 410837749
RUBBER CAP 		$22.60 2
032 410837061
BOTTOM RING NUT, LH 		$123.40 1
033 410837063
LH UPPER RING NUT 		$174.60 1
034 410972672
SUPPORT 		$0.90 (87.6% off) 2
035 410837549
RUBBER SUPPORT 		$230.30 2
036 410837171
RING
IN STOCK 		$0.24 (96.7% off) 2
037 410868630
BRACKET 		$53.37 2
038 410837549
RUBBER SUPPORT 		$230.30 2
039 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.07 2
040 N10718801
HEX COLLARED BOLT
IN STOCK 		$1.69 2
041 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 4
042 417971121A
WIRING HARNESS 		$128.29 1
043 410837163
LEFT HANDLE BODY 		$230.34 1
043 410837164
RIGHT HANDLE BODY 		$230.34 1
044 417959875A
POWER WINDOW CONTROL UNIT 		$607.11 2
045 8700416
SCREW 		$0.15 (98% off) 2
046 8400401
WASHER 		$0.12 2
047 N10612001
WASHER
IN STOCK 		$0.50 2
048 WHT000760
NUT M5 		$0.12 2
049 410863191
RING 		$0.79 (89.1% off) 2
050 410837723
LH SPRING 		$57.33 1
050 410837724
RH SPRING 		$57.33 1
051 410837226A
LEVER 		$639.55 2
052 410837207AVS
LH HANDLE 		$1,078.84 1
052 410837208AVS
RH HANDLE 		$1,078.84 1
053 8700472
SCREW 		$0.30 (95.9% off) 4
054 410837041
JOURNAL 		$17.46 2
062 8700401
SCREW 		$0.26 (96.5% off) 2
