Lamborghini Murcielago Roadster - Rear Wheel And Hub Carrier

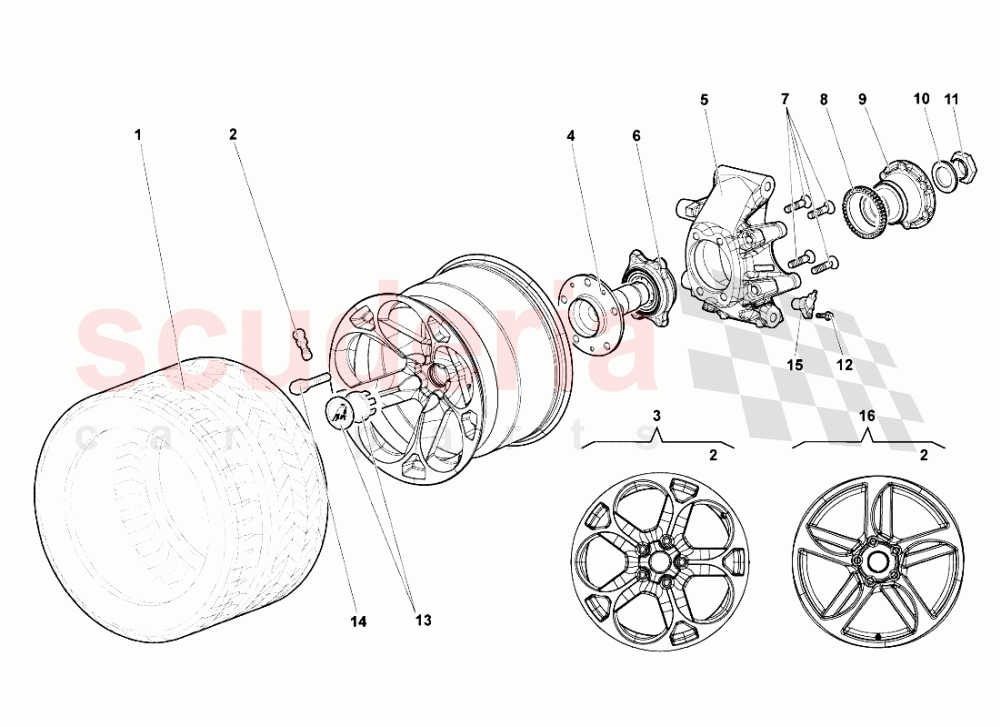

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	R1470014	SPORT TYRES (INCLUDES 2 FRONT TYRES + 1 LH REAR TYRE + 1 RH REAR TYRE)	R1470014 SPORT TYRES (INCLUDES 2 FRONT TYRES + 1 LH REAR TYRE + 1 RH REAR TYRE)	$4,313.34	1
001	R1470205	STANDARD TYRES (INCLUDES 2 REAR TYRE)	R1470205 STANDARD TYRES (INCLUDES 2 REAR TYRE)	$2,555.34	1
001	R1470207	SPORT TYRES (INCLUDES 1 LH REAR TYRE + 1 RH REAR TYRE)	R1470207 SPORT TYRES (INCLUDES 1 LH REAR TYRE + 1 RH REAR TYRE)	$2,881.96	1
001	R1470004	STANDARD TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	R1470004 STANDARD TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	$3,943.48	1
001	R1470209	WINTER TYRES (INCLUDES 2 REAR TYRE)	R1470209 WINTER TYRES (INCLUDES 2 REAR TYRE)	$2,368.00	1
001	R1470016	WINTER TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	R1470016 WINTER TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	$3,429.54	1
002	410601361	VALVE	410601361 VALVE	$53.08	2
003	410601017E	REAR WHEEL	410601017E REAR WHEEL	$3,958.85	2
003	410601017A	RIM (HERCULES STANDARD)	410601017A RIM (HERCULES STANDARD)	$3,958.85	2
004	410501653	HUB	410501653 HUB	$2,234.95	2
005	410505436	REAR RIGHT HUB CARRIER	410505436 REAR RIGHT HUB CARRIER	$1,089.40	1
005	410505436B	REAR RIGHT HUB CARRIER (CERAMIC BRAKE)	410505436B REAR RIGHT HUB CARRIER (CERAMIC BRAKE)	$866.12	1
005	410505435B	LEFT RIGHT HUB CARRIER (CERAMIC BRAKE)	410505435B LEFT RIGHT HUB CARRIER (CERAMIC BRAKE)	$866.12	1
005	410505435	REAR LEFT HUB CARRIER	410505435 REAR LEFT HUB CARRIER	$1,089.40	1
006	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE IN STOCK	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE IN STOCK	$190.92	2
007	WHT000237	BALL SCREW IN STOCK	WHT000237 BALL SCREW IN STOCK	$6.70	8
008	410614150A	CROWN GEAR	410614150A CROWN GEAR	$2,122.58	2
009	410501655	FLANGE	410501655 FLANGE	$7,098.16	2
010	410501279	WASHER	410501279 WASHER	$94.15	2
011	410501226	RING NUT	410501226 RING NUT	$188.53	2
012	N10285602	SCREW	N10285602 SCREW	$2.32 MSRP: ~~7.21~~ (67.8% off)	2
013	400601147	Moulded Hub Cap Silver Print	400601147 Moulded Hub Cap Silver Print	$163.61	2
013	470601147B	COVER CAP IN STOCK	470601147B COVER CAP IN STOCK	$87.19	2
013	410601147	MOLDING AND HUP-CAP - COLORED (HERMERA)	410601147 MOLDING AND HUP-CAP - COLORED (HERMERA)	$131.74	2
014	WHT001161	STUD	WHT001161 STUD	$32.03	10
015	410927801A	ABS SENSOR IN STOCK	410927801A ABS SENSOR IN STOCK	$216.87 MSRP: ~~242.00~~ (10.4% off)	2
016	410601017P	REAR WHEEL (HERMERA SILVER)	410601017P REAR WHEEL (HERMERA SILVER)	$3,571.72	2
