Lights

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Lights

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

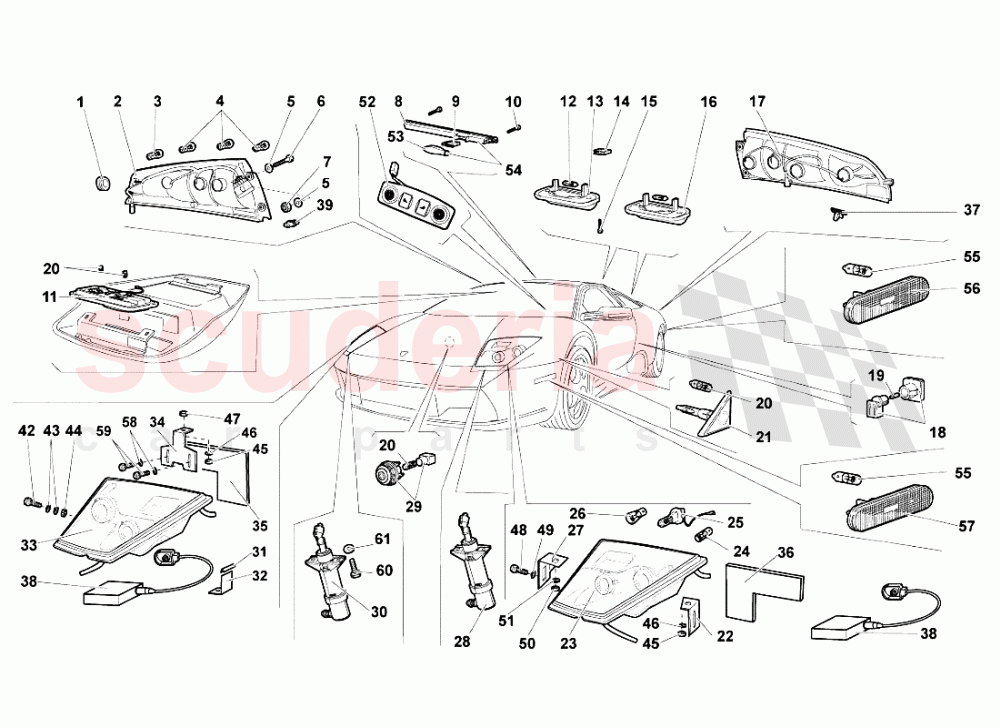

Lights of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400821190
GROMMET
IN STOCK 		$2.38 2
002 410945096A
RH REAR LAMP ASSEMBLY 		$3,173.04 1
003 6617091
LAMP 15D 32220 5/21W 		$10.88 (1.5% off) 2
004 6617094
LAMP BA 15S 21W 		$7.93 (2.1% off) 6
005 8400629
WASHER 		$1.34 (81.2% off) 8
006 WHT000757
SCREW 		$4.89 4
007 N02214812
HEXAGON NUT, SELF-LOCKING 		$2.01 (72.4% off) 4
008 4B9945097
HIGH-MOUNT BRAKE LIGHT 		$114.84 1
011 410947103
ROOF LAMP 		$146.70 1
012 6617095
LAMP SV8,5-8 5W 		$8.91 4
013 8N0943022A
RH License Plate Lamp 		$17.62 1
014 WHT003424
CLIP
IN STOCK 		$0.83 (88.6% off) 4
015 WHT003065
SCREW (2,9X16)
IN STOCK 		$1.25 (82.6% off) 4
016 8N0943021A
LH License Plate Lamp 		$17.83 1
017 410945095A
LH REAR LAMP ASSEMBLY 		$3,173.04 1
018 410947413
DOOR LAMP 		$81.50 (35.6% off) 2
020 N0177532
BULB 		$1.10 (84.5% off) 3
021 410953081
SIDE TURN INDICATOR LIGHT 		$295.98 2
022 410941058
RH BRACKET 		$58.31 1
022 410941057
LH BRACKET
IN STOCK 		$58.31 1
023 413941031A
LH FRONT HEADLIGHT ASSEMBLY 		$18,250.42 1
024 N0177522
LAMP 12V/3W
IN STOCK 		$1.94 (72.6% off) 2
025 N10445703
LAMP 12V 35W P32D-2
IN STOCK 		$160.93 2
026 N10445601
LAMP 12V 21W BAY9S
IN STOCK 		$25.15 2
027 410941155
BRACKET 		$107.98 2
028 410955985
LH HEADLIGHT WASHER ASSEMBLY 		$196.28 1
029 3B0947415B
LUGGAGE COMPARTMENT LAMP 		$20.06 1
030 410955984
RH HEADLIGHT WASHER ASSEMBLY 		$196.24 1
031 410941119
GASKET 		$23.53 2
032 410941452
RH BRACKET 		$30.35 2
032 410941451
LH BRACKET 		$47.27 2
033 413941032A
RH FRONT HEADLIGHT ASSEMBLY 		$12,692.15 1
034 410941355
BRACKET 		$83.65 2
035 410941982
RH PROTECTION 		$144.19 1
036 410941981
LH PROTECTION 		$37.06 1
037 410972672
SUPPORT 		$0.90 (87.6% off) 4
038 3B0941641
FRONT HEADLIGHT CONTROL UNIT 		$1,498.42 2
039 410945247
PLUG 		$12.23 2
042 N10718801
HEX COLLARED BOLT
IN STOCK 		$1.69 2
043 WHT002961
WASHER
IN STOCK 		$0.39 4
044 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 2
045 N01118312
HEXAGON NUT, SELF-LOCKING
IN STOCK 		$2.08 4
046 WHT002961
WASHER
IN STOCK 		$0.39 4
047 WHT003044
WASHER
IN STOCK 		$8.08 4
048 N90319404
SCREW
IN STOCK 		$2.08 6
049 WHT002961
WASHER
IN STOCK 		$0.39 2
050 N01118312
HEXAGON NUT, SELF-LOCKING
IN STOCK 		$2.08 4
051 WHT003044
WASHER
IN STOCK 		$8.08 4
052 410947103
ROOF LAMP 		$146.70 1
053 410945090
PROTECTION 		$9.93 1
058 WHT002961
WASHER
IN STOCK 		$0.39 4
060 WHT003069
SCREW M6X1X20 		$42.19 4
061 WHT002961
WASHER
IN STOCK 		$0.39 4
