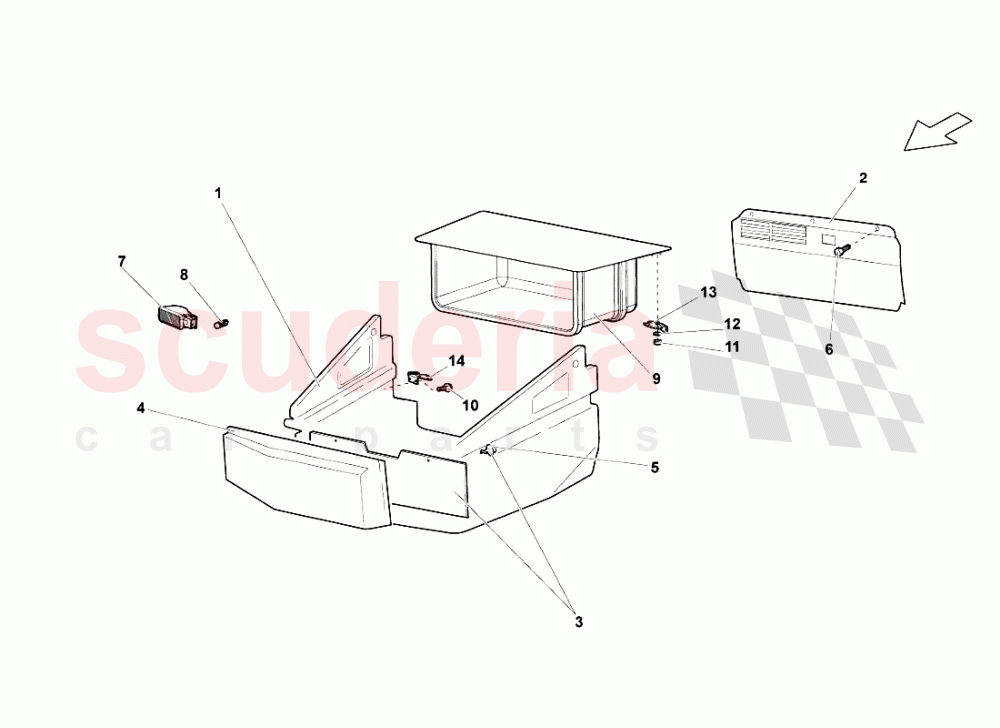

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410863469B	COVERING	410863469B COVERING	$168,345.83	1
002	413863362A	PANEL	413863362A PANEL	$443.74	1
003	410806547	PANEL	410806547 PANEL	$162.30	1
004	410863469A	COVERING	410863469A COVERING	$818.35	1
005	410803305	JOURNAL	410803305 JOURNAL	$10.30	2
006	N90842903	SCREW IN STOCK	N90842903 SCREW IN STOCK	$1.62 MSRP: ~~7.27~~ (77.7% off)	3
007	4B0947415A	LUGGAGE COMPARTMENT LAMP IN STOCK	4B0947415A LUGGAGE COMPARTMENT LAMP IN STOCK	$20.05	1
008	N0177532	BULB	N0177532 BULB	$1.09 MSRP: ~~7.09~~ (84.6% off)	1
