Aesthetic Heat

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Aesthetic Heat

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

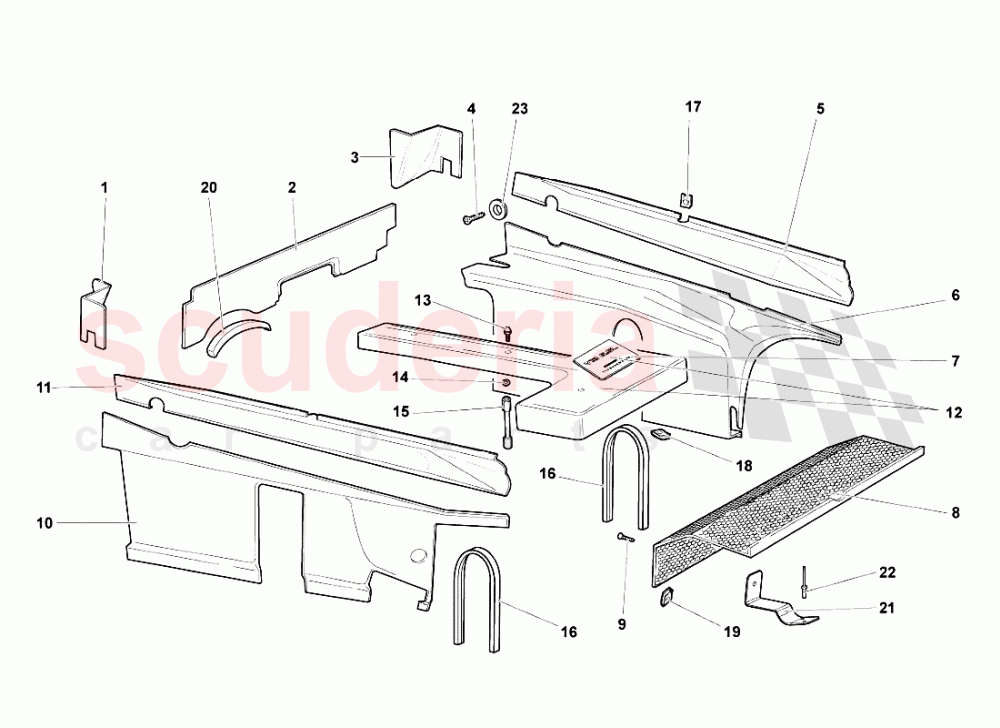

Aesthetic Heat of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 418103781A
LH ANGULAR PAINTED PANEL 		$995.09 1
002 418103747A
FRONT PAINTED PANEL (E-GEAR) 		$1,639.69 1
002 418103747B
FRONT PANEL (MANUAL GEARBOX)
Carbon 		$1,639.69 1
003 418103555A
RH ANGULAR PAINTED PANEL 		$995.09 1
004 N01396626
SCREW
IN STOCK 		$3.21 18
005 418103730A
UPPER RH PANEL
Carbon 		$2,290.54 1
006 418103729B
LOWER RH PANEL
Carbon 		$3,517.17 1
007 7M103115G
FUEL PIPING COVER PLATE 		$423.15 1
008 418864878
AUXILIARY COMPONENTS COVERING GRID 		$720.96 1
009 N01396626
SCREW
IN STOCK 		$3.21 4
009 N10621601
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$2.13 4
010 418103754B
LOWER LH PANEL
Carbon 		$3,517.17 1
011 418103753A
UPPER LH PANEL
Carbon 		$2,290.54 1
012 7M103926N
FUEL PIPING COVER SET 		$4,067.92 1
013 N90842903
SCREW
IN STOCK 		$1.62 (77.7% off) 4
015 7M103728B
STUD 		$62.03 2
016 410103121
GASKET 		$84.50 2
017 N0154523
CLIP ST4.2X13.00X11.00 		$0.26 (96.5% off) 8
019 WHT003383
CLIP 		$14.53 4
020 410103727
GASKET 		$47.19 1
021 410813988
BRACKET 		$8.39 4
022 410809864
RIVET 		$0.43 (94.1% off) 8
023 N90531001
WASHER 		$1.05 (85.6% off) 18
