Doors 2 of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Doors 2

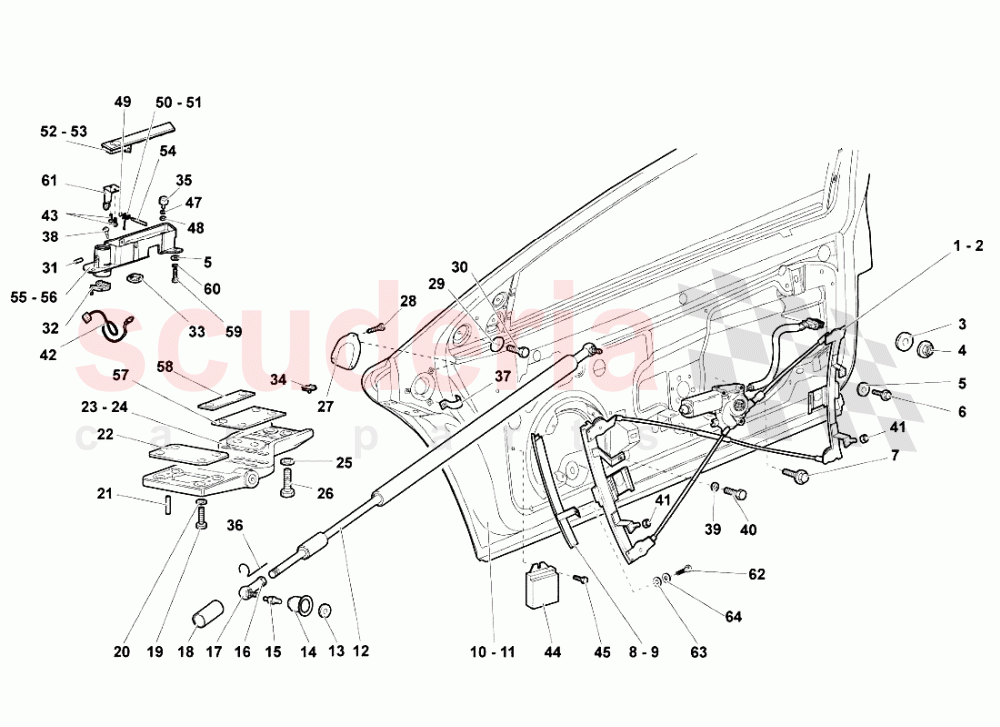

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	418837401	LH POWER WINDOW ASSEMBLY	418837401 LH POWER WINDOW ASSEMBLY	$1,753.98	1
002	418837402	RH POWER WINDOW ASSEMBLY IN STOCK	418837402 RH POWER WINDOW ASSEMBLY IN STOCK	$2,070.50	1
003	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	3
004	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	3
005	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.10	4
006	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.25 MSRP: ~~7.31~~ (82.9% off)	4
007	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) IN STOCK	$0.96 MSRP: ~~7.31~~ (86.9% off)	6
008	418837404	RH GUIDE	418837404 RH GUIDE	$291.74	1
009	418837403	LH GUIDE	418837403 LH GUIDE	$291.74	1
010	418831051	LEFT DOOR FRAME ASSEMBLY	418831051 LEFT DOOR FRAME ASSEMBLY	$10,493.09	1
011	418831052	RIGHT DOOR FRAME ASSEMBLY	418831052 RIGHT DOOR FRAME ASSEMBLY	$10,493.09	1
012	410837987	Door Strut IN STOCK	410837987 Door Strut IN STOCK	$122.29	2
013	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	1
014	410837749	RUBBER CAP	410837749 RUBBER CAP	$22.70	2
015	410837646A	JOURNAL	410837646A JOURNAL	$8.68	1
016	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.95	1
017	410837262	JACK HEAD	410837262 JACK HEAD	$8.49	1
018	410837801A	SHEATH IN STOCK	410837801A SHEATH IN STOCK	$48.30	1
019	N10208905	SCREW M10X30	N10208905 SCREW M10X30	$3.53	4
020	WHT002955	WASHER	WHT002955 WASHER	$1.06 MSRP: ~~7.21~~ (85.3% off)	4
021	N10738601	PIN	N10738601 PIN	$0.38	2
022	410837983B	1.2 MM SHIM	410837983B 1.2 MM SHIM	$15.53	1
022	410837983	0.8 MM SHIM	410837983 0.8 MM SHIM	$17.16	1
022	410837983C	1.5 MM SHIM	410837983C 1.5 MM SHIM	$18.62	1
022	410837983A	1.0 MM SHIM	410837983A 1.0 MM SHIM	$18.99	1
023	410831401	LH HINGE	410831401 LH HINGE	$1,090.18	1
024	410831402	RH HINGE	410831402 RH HINGE	$1,090.18	1
025	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.45	4
026	N10208906	SCREW M10X30.0	N10208906 SCREW M10X30.0	$3.84	4
027	410867251	ORNAMENT	410867251 ORNAMENT	$126.37	1
028	N90455205	SCREW M4X10 IN STOCK	N90455205 SCREW M4X10 IN STOCK	$1.15 MSRP: ~~7.24~~ (84.1% off)	3
031	WHT003370	SCREW	WHT003370 SCREW	$0.33 MSRP: ~~7.34~~ (95.5% off)	2
032	410837061	BOTTOM RING NUT, LH	410837061 BOTTOM RING NUT, LH	$123.98	1
033	410837063	LH UPPER RING NUT	410837063 LH UPPER RING NUT	$175.42	1
034	410972672	SUPPORT	410972672 SUPPORT	$0.90 MSRP: ~~7.24~~ (87.6% off)	2
035	410837549	RUBBER SUPPORT	410837549 RUBBER SUPPORT	$231.38	2
036	410837171	RING IN STOCK	410837171 RING IN STOCK	$0.24 MSRP: ~~7.36~~ (96.7% off)	2
037	410868630A	SUPPORT	410868630A SUPPORT	$54.90	2
038	410837529	RUBBER CAP	410837529 RUBBER CAP	$5.16	2
039	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.10	2
040	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT IN STOCK	$1.70	2
041	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	4
043	WHT003308	SCREW M4X8 (STANDARD)	WHT003308 SCREW M4X8 (STANDARD)	$0.83 MSRP: ~~7.29~~ (88.6% off)	4
047	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	2
048	WHT003112	NUT M5	WHT003112 NUT M5	$0.65	2
049	410863191	RING	410863191 RING	$0.79 MSRP: ~~7.26~~ (89.1% off)	2
050	410837724	RH SPRING	410837724 RH SPRING	$57.60	1
051	410837723	LH SPRING	410837723 LH SPRING	$57.60	1
052	410837208AVS	RH HANDLE	410837208AVS RH HANDLE	$1,083.91	1
053	410837207AVS	LH HANDLE	410837207AVS LH HANDLE	$1,083.91	1
054	410837041	JOURNAL	410837041 JOURNAL	$17.54	2
055	410837163	LEFT HANDLE BODY	410837163 LEFT HANDLE BODY	$231.42	1
056	410837164	RIGHT HANDLE BODY	410837164 RIGHT HANDLE BODY	$231.42	1
057	410837984	2.00 ADJUSTMENT SHIM	410837984 2.00 ADJUSTMENT SHIM	$21.58	1
058	410837944A	1.00 ADJUSTMENT SHIM	410837944A 1.00 ADJUSTMENT SHIM	$18.17	4
059	WHT003111	SCREW M5X16 IN STOCK	WHT003111 SCREW M5X16 IN STOCK	$1.08 MSRP: ~~7.21~~ (85% off)	3
060	N91109201	WASHER IN STOCK	N91109201 WASHER IN STOCK	$1.63 MSRP: ~~5.85~~ (72.1% off)	10
061	410837226A	LEVER	410837226A LEVER	$642.55	2
062	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.25 MSRP: ~~7.31~~ (82.9% off)	2
063	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	2
064	8410508	WASHER	8410508 WASHER	$0.04 MSRP: ~~7.40~~ (99.5% off)	2
064	WHT003364	WASHER IN STOCK	WHT003364 WASHER IN STOCK	$2.09 MSRP: ~~7.03~~ (70.3% off)	2
