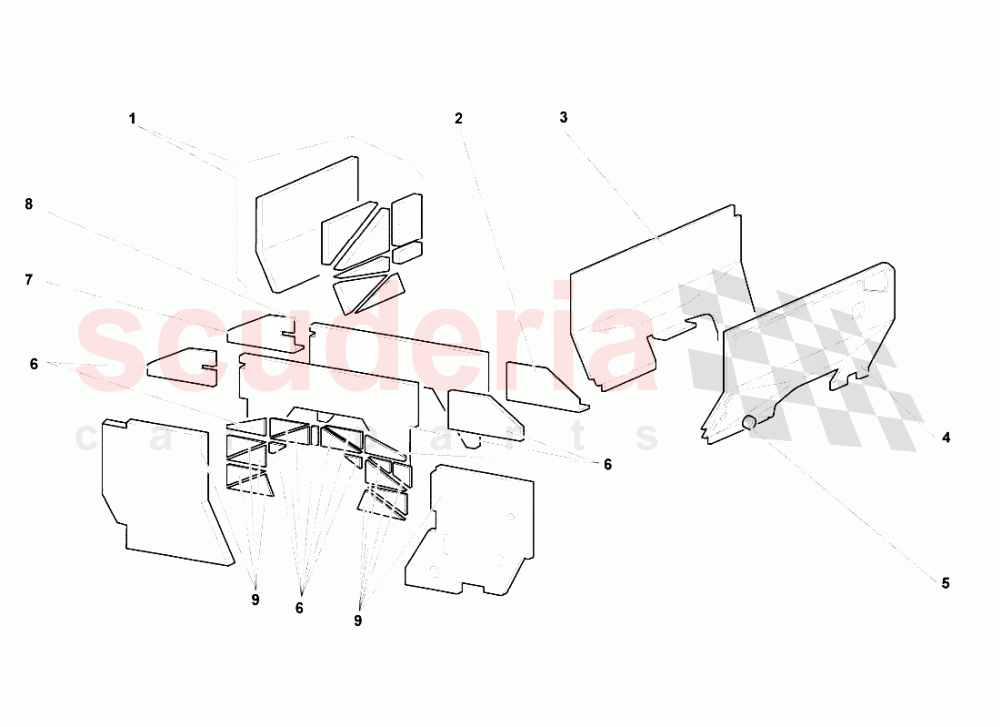

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	310147021	FUEL TANK ISOLATION SET	310147021 FUEL TANK ISOLATION SET	$367.69	1
002	418103763	ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	418103763 ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	$122.73	1
003	418863932	RIGHT HEAT SHIELD	418863932 RIGHT HEAT SHIELD	$3,233.15	1
004	418863931	LEFT HEAT SHIELD	418863931 LEFT HEAT SHIELD	$3,233.15	1
005	8612804	RUBBER RING	8612804 RUBBER RING	$5.93 MSRP: ~~6.55~~ (9.5% off)	1
006	310147022	ENGINE SIDE FIREPROOF SET	310147022 ENGINE SIDE FIREPROOF SET	$781.03	1
007	418103764	ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	418103764 ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	$126.56	1
008	418864926	ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	418864926 ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	$267.53	1
009	310147049	FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	310147049 FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	$1,648.28	1
