FRAME ELEMENTS of Lamborghini Lamborghini Murcielago

View All

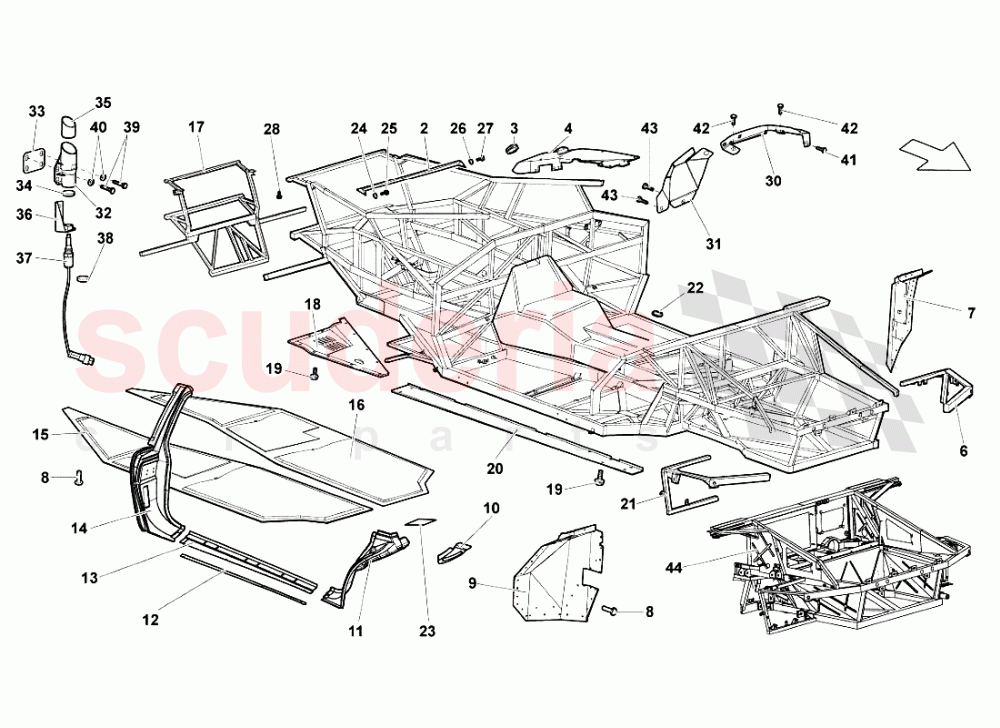

Lamborghini Murcielago - FRAME ELEMENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	410813528	CROSS MEMBER	410813528 CROSS MEMBER	$705.95	1
003	8931810	PLUG	8931810 PLUG	$2.38	4
004	41009138	LH SHEET	41009138 LH SHEET	$289.90	1
004	41009139	RH SHEET	41009139 RH SHEET	$289.90	1
006	41013497	LEFT FRONT FRAME	41013497 LEFT FRONT FRAME	$1,054.79	1
007	418809153	LEFT FRONT WHEELARCH, REAR PART	418809153 LEFT FRONT WHEELARCH, REAR PART	$4,461.60	1
008	410821316	RIVET	410821316 RIVET	$6.15	66
008	410821316	RIVET	410821316 RIVET	$6.15	202
009	418809154	RIGHT FRONT WHEELARCH, REAR PART	418809154 RIGHT FRONT WHEELARCH, REAR PART	$4,461.60	1
010	410809440	RIGID UPPER CONNECTION	410809440 RIGID UPPER CONNECTION	$99.59	1
010	410809439	RIGID UPPER CONNECTION	410809439 RIGID UPPER CONNECTION	$99.59	1
011	410805047	FRONT LEFT COVERING	410805047 FRONT LEFT COVERING	$2,598.90	1
011	410805048	FRONT RIGHT COVERING	410805048 FRONT RIGHT COVERING	$2,598.90	1
012	410831166	OUTER LOWER RIGHT PROFILE	410831166 OUTER LOWER RIGHT PROFILE	$89.75	1
012	410831165	OUTER LOWER LEFT PROFILE	410831165 OUTER LOWER LEFT PROFILE	$79.72	1
013	410801255	CENTER LEFT COVERING	410801255 CENTER LEFT COVERING	$705.95	1
013	410801256	CENTER RIGHT COVERING	410801256 CENTER RIGHT COVERING	$705.95	1
014	418868814	REAR RIGHT COVERING	418868814 REAR RIGHT COVERING	$1,992.92	1
014	418868813	REAR LEFT COVERING	418868813 REAR LEFT COVERING	$579.76	1
015	410825219	BOARD	410825219 BOARD	$6,961.09	1
016	410825220	BOARD	410825220 BOARD	$6,961.09	1
017	41013499	REAR FRAME	41013499 REAR FRAME	$3,524.27	1
018	410825215	LEFT REAR SIDE MEMBER BOTTOM	410825215 LEFT REAR SIDE MEMBER BOTTOM	$1,075.80	1
018	410825216	RIGHT REAR SIDE MEMBER BOTTOM	410825216 RIGHT REAR SIDE MEMBER BOTTOM	$1,618.06	1
019	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$42.04	11
020	410825210	RIGHT FRONT SIDE MEMBER BOTTOM	410825210 RIGHT FRONT SIDE MEMBER BOTTOM	$1,293.20	1
020	410825211	LEFT FRONT SIDE MEMBER BOTTOM	410825211 LEFT FRONT SIDE MEMBER BOTTOM	$1,293.20	1
021	41013498	RIGHT FRONT FRAME	41013498 RIGHT FRONT FRAME	$1,054.79	1
022	410821801	PLUG	410821801 PLUG	$34.88	1
023	410837267	LID	410837267 LID	$527.41	2
024	N90840802	WASHER IN STOCK	N90840802 WASHER IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	4
025	N01034518	SCREW M8X45 IN STOCK	N01034518 SCREW M8X45 IN STOCK	$24.18	4
026	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.44	2
027	N0147519	SCREW M8X50	N0147519 SCREW M8X50	$12.07	2
028	N01034512	SCREW M8X45	N01034512 SCREW M8X45	$2.13 MSRP: ~~7.01~~ (69.6% off)	2
044	410898045	FRONT FRAME (SEE IDENTITY PLATE PROCEDURE)	410898045 FRONT FRAME (SEE IDENTITY PLATE PROCEDURE)	$21,864.31	1
