LIGHTS of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - LIGHTS

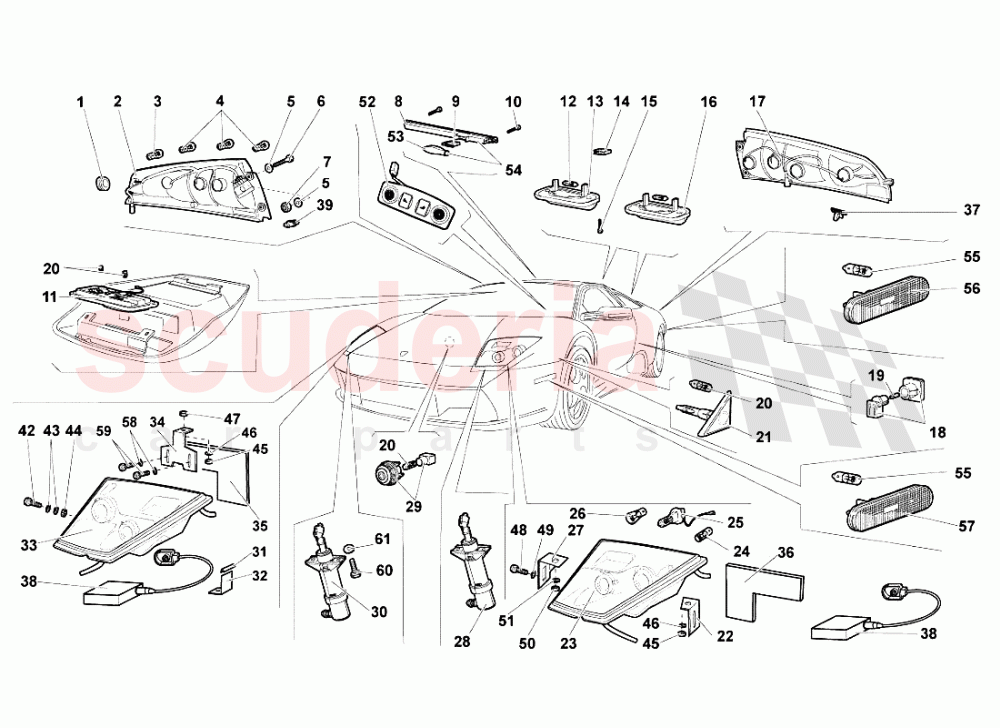

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400821190	GROMMET IN STOCK	400821190 GROMMET IN STOCK	$2.37	2
002	410945096A	RH REAR LAMP ASSEMBLY	410945096A RH REAR LAMP ASSEMBLY	$3,160.31	1
003	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W	$10.84 MSRP: ~~11.05~~ (1.9% off)	2
004	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W	$7.90 MSRP: ~~8.10~~ (2.5% off)	6
005	8400629	WASHER	8400629 WASHER	$1.34 MSRP: ~~7.11~~ (81.2% off)	8
006	WHT000757	SCREW	WHT000757 SCREW	$4.87	4
007	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$2.00 MSRP: ~~7.29~~ (72.6% off)	4
008	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	$174.23	1
009	6132280	CONNECTOR	6132280 CONNECTOR	$9.51 MSRP: ~~10.60~~ (10.3% off)	1
010	8700450	SCREW IN STOCK	8700450 SCREW IN STOCK	$0.50 MSRP: ~~7.29~~ (93.1% off)	2
011	410947103	ROOF LAMP	410947103 ROOF LAMP	$146.11	1
012	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W	$8.88 MSRP: ~~9.00~~ (1.3% off)	4
013	8N0943022A	RH License Plate Lamp	8N0943022A RH License Plate Lamp	$17.55	1
014	WHT003424	CLIP IN STOCK	WHT003424 CLIP IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	4
015	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	4
016	8N0943021A	LH License Plate Lamp	8N0943021A LH License Plate Lamp	$17.76	1
017	410945095A	LH REAR LAMP ASSEMBLY	410945095A LH REAR LAMP ASSEMBLY	$3,160.31	1
018	410947413	DOOR LAMP	410947413 DOOR LAMP	$81.18 MSRP: ~~126.50~~ (35.8% off)	2
020	N0177532	BULB	N0177532 BULB	$1.09 MSRP: ~~7.09~~ (84.6% off)	3
021	410953081	SIDE TURN INDICATOR LIGHT	410953081 SIDE TURN INDICATOR LIGHT	$294.80	2
022	410941058	RH BRACKET	410941058 RH BRACKET	$58.08	1
022	410941057	LH BRACKET IN STOCK	410941057 LH BRACKET IN STOCK	$58.08	1
023	413941031A	LH FRONT HEADLIGHT ASSEMBLY	413941031A LH FRONT HEADLIGHT ASSEMBLY	$18,177.19	1
024	N0177522	LAMP 12V/3W IN STOCK	N0177522 LAMP 12V/3W IN STOCK	$1.93 MSRP: ~~7.09~~ (72.8% off)	2
025	N10445703	LAMP 12V 35W P32D-2 IN STOCK	N10445703 LAMP 12V 35W P32D-2 IN STOCK	$160.28	2
026	N10445601	LAMP 12V 21W BAY9S IN STOCK	N10445601 LAMP 12V 21W BAY9S IN STOCK	$25.05	2
027	410941155	BRACKET	410941155 BRACKET	$107.55	2
028	410955985	LH HEADLIGHT WASHER ASSEMBLY	410955985 LH HEADLIGHT WASHER ASSEMBLY	$195.49	1
029	3B0947415B	LUGGAGE COMPARTMENT LAMP	3B0947415B LUGGAGE COMPARTMENT LAMP	$19.98	1
030	410955984	RH HEADLIGHT WASHER ASSEMBLY	410955984 RH HEADLIGHT WASHER ASSEMBLY	$195.45	1
031	410941119	GASKET	410941119 GASKET	$23.43	2
032	410941452	RH BRACKET	410941452 RH BRACKET	$30.23	2
032	410941451	LH BRACKET	410941451 LH BRACKET	$47.08	2
033	413941032A	RH FRONT HEADLIGHT ASSEMBLY	413941032A RH FRONT HEADLIGHT ASSEMBLY	$12,641.22	1
034	410941355	BRACKET	410941355 BRACKET	$83.32	2
035	410941982	RH PROTECTION	410941982 RH PROTECTION	$143.62	1
036	410941981	LH PROTECTION	410941981 LH PROTECTION	$36.91	1
037	410972672	SUPPORT	410972672 SUPPORT	$0.90 MSRP: ~~7.24~~ (87.6% off)	4
038	3B0941641	FRONT HEADLIGHT CONTROL UNIT	3B0941641 FRONT HEADLIGHT CONTROL UNIT	$1,492.40	2
039	410945247	PLUG	410945247 PLUG	$12.18	2
042	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT IN STOCK	$1.68	2
043	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	4
044	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
045	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.07	4
046	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	4
047	WHT003044	WASHER IN STOCK	WHT003044 WASHER IN STOCK	$8.05	4
048	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$2.07	6
049	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	2
050	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.07	4
051	WHT003044	WASHER IN STOCK	WHT003044 WASHER IN STOCK	$8.05	4
053	410945090	PROTECTION	410945090 PROTECTION	$9.89	1
054	R1470010	KIT - STOP LAMP	R1470010 KIT - STOP LAMP	$95.23 MSRP: ~~120.50~~ (21% off)	1
058	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	4
060	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$42.02	4
061	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	4
