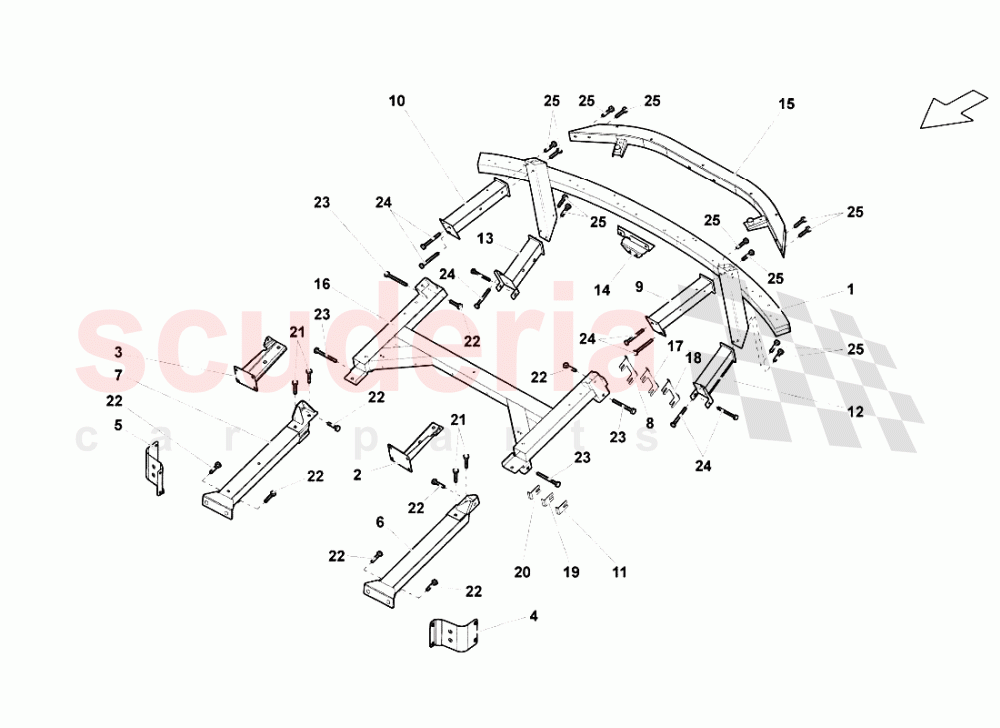

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400807307	REAR BUMPER	400807307 REAR BUMPER	$3,405.07	1
002	400809125	BRACKET	400809125 BRACKET	$928.32	1
003	400809126	BRACKET	400809126 BRACKET	$928.32	1
004	400810427	SUPPORT	400810427 SUPPORT	$367.69	1
005	400810428	SUPPORT	400810428 SUPPORT	$242.22	1
006	407813087	SUPPORT	407813087 SUPPORT	$528.73	1
007	407813088	SUPPORT	407813088 SUPPORT	$532.52	1
008	400813176	INSERT	400813176 INSERT	$87.00	1
009	400813243	SUPPORT	400813243 SUPPORT	$726.53	1
010	400813244	SUPPORT	400813244 SUPPORT	$726.53	1
011	400813449	SPACER	400813449 SPACER	$70.75	1
012	400813729	BUMPER STRUCTURE	400813729 BUMPER STRUCTURE	$1,756.44	1
013	400813730	BUMPER STRUCTURE	400813730 BUMPER STRUCTURE	$2,985.93	1
014	400813787	REINFORCEMENT	400813787 REINFORCEMENT	$80.52	1
015	407813219	CROSS MEMBER	407813219 CROSS MEMBER	$566.75	1
016	407813703	CROSS MEMBER	407813703 CROSS MEMBER	$1,483.47	1
017	400813176A	INSERT	400813176A INSERT	$78.63	1
018	400813176B	INSERT	400813176B INSERT	$87.00	1
019	400813449A	SPACER	400813449A SPACER	$70.75	1
020	400813449B	SPACER	400813449B SPACER	$73.16	1
021	N10318302	SCREW	N10318302 SCREW	$3.70	4
022	N0195307	HEX COLLARED BOLT IN STOCK	N0195307 HEX COLLARED BOLT IN STOCK	$3.25 MSRP: ~~7.14~~ (54.5% off)	8
023	N10468902	SCREW	N10468902 SCREW	$43.01	4
024	N10067004	SCREW	N10067004 SCREW	$4.57	8
025	N90365903	SCREW	N90365903 SCREW	$1.12	12
