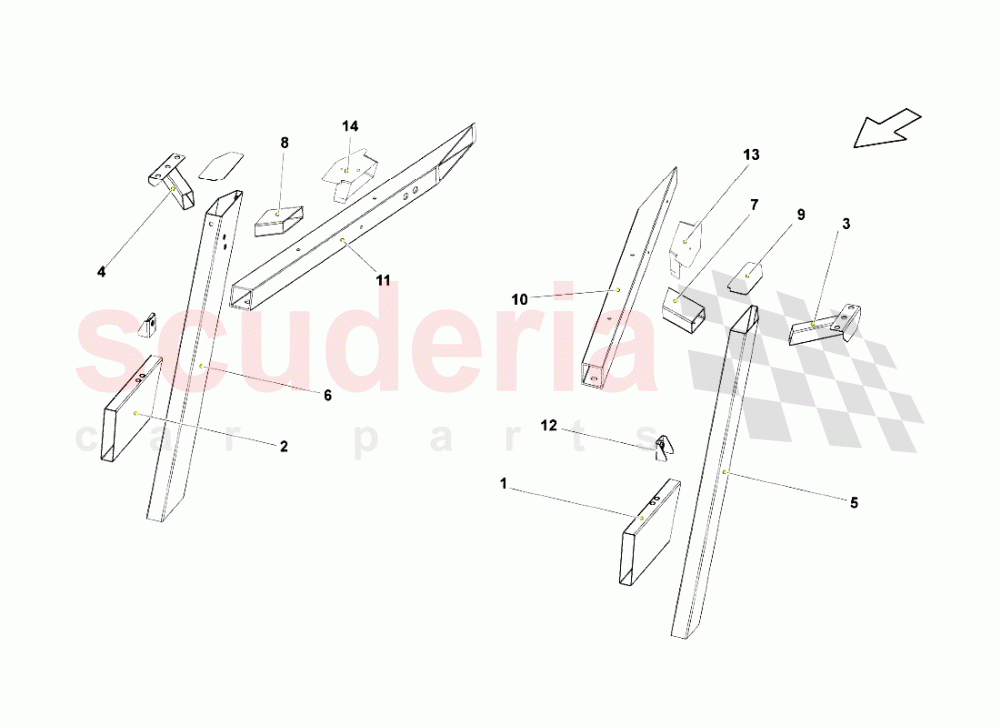

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407803503	SIDE MEMBER	407803503 SIDE MEMBER	$543.95	1
002	407803504	SIDE MEMBER	407803504 SIDE MEMBER	$523.64	1
003	400810229A	CARRIER PART	400810229A CARRIER PART	$325.86	1
004	400810230A	CARRIER PART	400810230A CARRIER PART	$325.86	1
005	407809239	C A-PILLAR	407809239 C A-PILLAR	$174.35	1
006	407809240	C A-PILLAR	407809240 C A-PILLAR	$174.35	1
010	407810243	BRACKET	407810243 BRACKET	$418.42	1
011	407810244	BRACKET	407810244 BRACKET	$418.42	1
012	400813891	FIXING ANGLE	400813891 FIXING ANGLE	$103.61	2
013	407809991A	CONNECTING PIECE	407809991A CONNECTING PIECE	$58.53	1
014	407809992A	CONNECTING PIECE	407809992A CONNECTING PIECE	$68.47	1
