Lamborghini Gallardo Spyder - Rear Arms

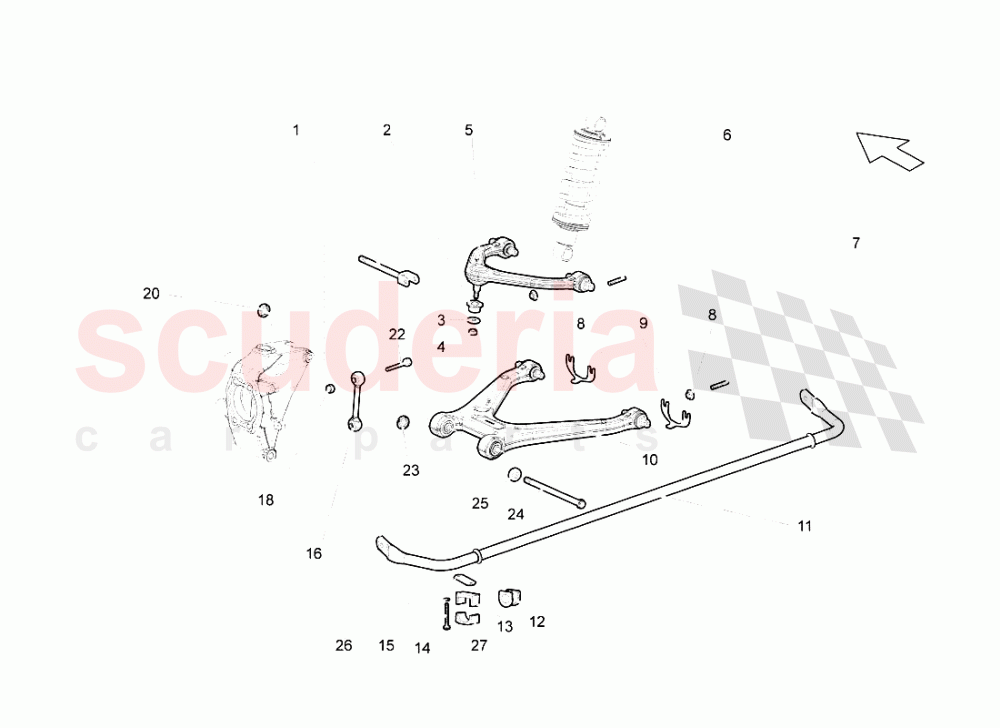

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400505183D	SCREW	400505183D SCREW	$60.03	2
002	400407171B	BUSHING	400407171B BUSHING	$383.93	2
003	400505179B	SPACER	400505179B SPACER	$45.17	2
004	N90323706	NUT M12X1,50	N90323706 NUT M12X1,50	$3.95	2
005	400505323B	UPPER ARM	400505323B UPPER ARM	$1,988.71	2
006	N91062101	STUD BOLT	N91062101 STUD BOLT	$23.40	8
007	N91062001	STUD BOLT	N91062001 STUD BOLT	$17.59	8
008	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.26 MSRP: ~~7.22~~ (68.7% off)	16
009	400407379C	2 MM SHIM IN STOCK	400407379C 2 MM SHIM IN STOCK	$11.68	16
009	400407379B	1.5 MM SHIM IN STOCK	400407379B 1.5 MM SHIM IN STOCK	$11.68	16
009	400407379E	3 MM SHIM	400407379E 3 MM SHIM	$127.97	16
009	400407379F	0.3 MM SHIM IN STOCK	400407379F 0.3 MM SHIM IN STOCK	$253.45	16
009	400407379D	2.5 MM SHIM	400407379D 2.5 MM SHIM	$11.68	16
009	400407379	0.5 MM SHIM	400407379 0.5 MM SHIM	$5.55	16
009	400407379A	1 MM SHIM	400407379A 1 MM SHIM	$29.88	16
010	400505311B	LOWER ARM	400505311B LOWER ARM	$4,723.97	2
011	400511409C	REAR STABILIZER BAR	400511409C REAR STABILIZER BAR	$265.37	1
012	8Z0411314	BUSHING	8Z0411314 BUSHING	$25.87	2
013	400511036	STABILIZER BAR BRACKET	400511036 STABILIZER BAR BRACKET	$176.29	1
014	WHT000923	SCREW M6X52	WHT000923 SCREW M6X52	$7.41	4
015	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
016	400505465C	CONNECTING ROD	400505465C CONNECTING ROD	$88.45	2
018	N10286110	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10286110 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.33 MSRP: ~~7.21~~ (67.7% off)	4
020	N90323706	NUT M12X1,50	N90323706 NUT M12X1,50	$3.95	2
022	N10699601	BOLT HEX HEAD FLANGED IN STOCK	N10699601 BOLT HEX HEAD FLANGED IN STOCK	$4.20	4
023	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	$6.41	2
024	400505119	SCREW	400505119 SCREW	$136.77	2
025	400407739	1.0 MM SHIM IN STOCK	400407739 1.0 MM SHIM IN STOCK	$3.40	1
025	400407742	2.0 MM SHIM IN STOCK	400407742 2.0 MM SHIM IN STOCK	$4.40	1
025	400407749	0.5 MM SHIM IN STOCK	400407749 0.5 MM SHIM IN STOCK	$3.02	1
025	400407740	1.5 MM SHIM IN STOCK	400407740 1.5 MM SHIM IN STOCK	$3.83	1
026	400411175A	SPACER	400411175A SPACER	$127.97	2
027	400511035	STABILIZER BAR BRACKET	400511035 STABILIZER BAR BRACKET	$49.80	1
