Driveshafts and Propeller Shaft of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Driveshafts and Propeller Shaft

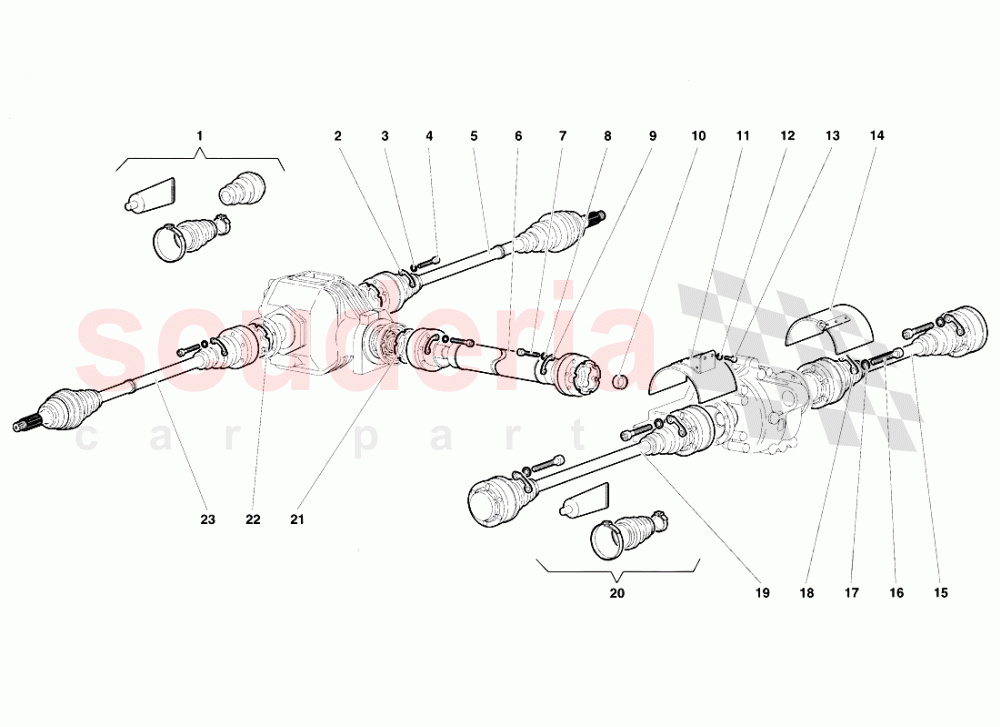

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	2534887	BOOT KIT	2534887 BOOT KIT KIT CUFFIA	$236.63	2
002	2534274	PLATE	2534274 PLATE PIASTRINA	$8.77	6
003	8410812	WASHER	8410812 WASHER RONDELLA	$1.52	12
004	8700802	SCREW	8700802 SCREW VITE	$0.91 MSRP: ~~7.23~~ (87.4% off)	12
005	2534283	RIGHT HALF SHAFT	2534283 RIGHT HALF SHAFT SEMIASSE DESTRO	$2,548.32 MSRP: ~~2,855.00~~ (10.7% off)	1
006	2234277	PROPELLER SHAFT	2234277 PROPELLER SHAFT ALBERO TRASMISSIONE	$3,020.23	1
007	8700802	SCREW	8700802 SCREW VITE	$0.91 MSRP: ~~7.23~~ (87.4% off)	12
008	8410812	WASHER	8410812 WASHER RONDELLA	$1.52	12
009	2234273	PLATE	2234273 PLATE PIASTRINA	$8.35 MSRP: ~~9.05~~ (7.7% off)	6
010	2434496	RUBBER PAD	2434496 RUBBER PAD TAMPONEGOMMA	$71.33	1
011	2530901	SHIELD	2530901 SHIELD PROTEZIONE	$169.30 MSRP: ~~183.50~~ (7.7% off)	1
012	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.07	2
013	8100613	SCREW	8100613 SCREW VITE	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
014	2530896	Shield	2530896 Shield PROTEZIONE	$638.96	1
015	2534285	RIGHT HALF SHAFT	2534285 RIGHT HALF SHAFT SEMIASSE DESTRO	$3,663.58 MSRP: ~~3,965.00~~ (7.6% off)	1
016	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 IN STOCK	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 VITE IN STOCK	$2.99	24
017	8411011	WASHER IN STOCK	8411011 WASHER RONDELLA IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	24
018	2533290	PLATE	2533290 PLATE PIASTRINA	$13.49	12
019	2534286	LEFT HALF SHAFT	2534286 LEFT HALF SHAFT SEMIASSE SINISTRO	$3,663.58 MSRP: ~~3,965.00~~ (7.6% off)	1
020	2512808	KIT SEMIASSE	2512808 KIT SEMIASSE use : 002537315	$173.23	4
021	2234523	GASKET	2234523 GASKET GUARNIZIONE	$38.03	2
022	2534666	GASKET	2534666 GASKET GUARNIZIONE	$63.23 MSRP: ~~68.40~~ (7.6% off)	2
023	2534284	LEFT HALF SHAFT	2534284 LEFT HALF SHAFT SEMIASSE SINISTRO	$762.77 MSRP: ~~826.00~~ (7.7% off)	1
