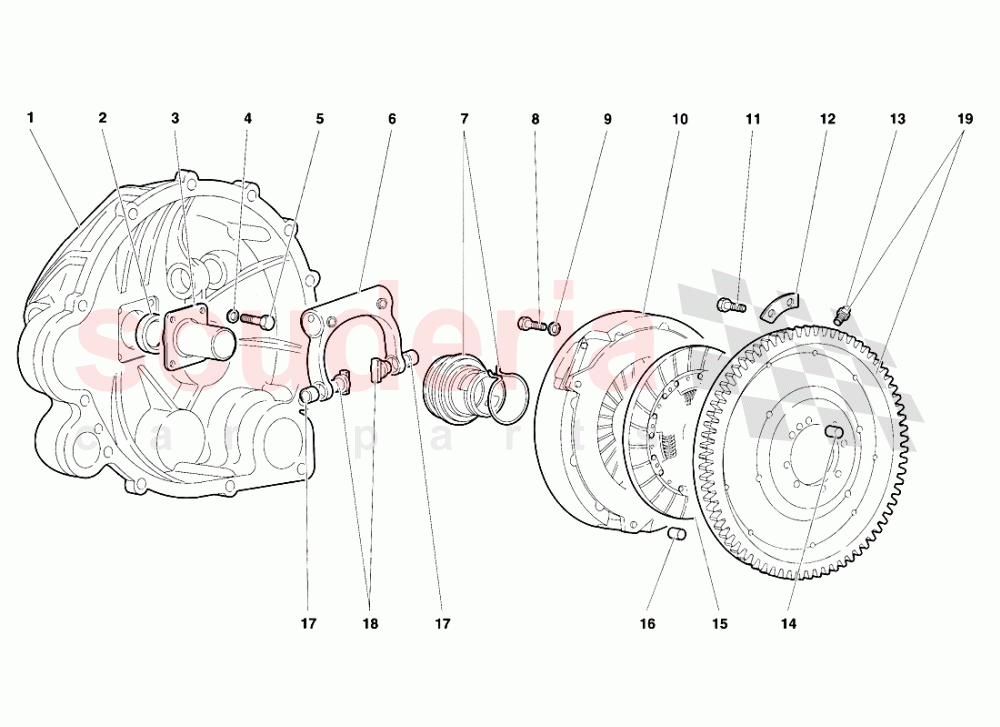

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2430772	BELL HOUSING	2430772 BELL HOUSING CAMPANA FRIZIONE	$2,433.34	1
002	8613206	SEAL IN STOCK	8613206 SEAL ANELLO TENUTA IN STOCK	$18.58 MSRP: ~~20.20~~ (8% off)	1
003	2428864	SUPPORT - SUPPORTO REGGISPINTA	2428864 SUPPORT - SUPPORTO REGGISPINTA O REGGISPINTA	$1,728.18	1
004	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.07	4
005	8100618	SCREW	8100618 SCREW VITE	$0.26 MSRP: ~~7.35~~ (96.5% off)	4
006	2121341	FORK	2121341 FORK FORCELLA COMANDO FRIZIONE	$1,248.48	1
007	2129353	SLEEVE T/OBEARING	2129353 SLEEVE T/OBEARING (Sachs)	$4,959.17	1
008	8100851	SCREW	8100851 SCREW VITE	$0.60	9
009	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.24 MSRP: ~~64.00~~ (63.7% off)	9
010	2132598	PRESSURE PLATE	2132598 PRESSURE PLATE (Sachs)	$1,335.15	1
011	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 VITE IN STOCK	$18.30	8
012	410141179	Retaining Plate	410141179 Retaining Plate	$59.61	4
013	7M105357	PIN	7M105357 PIN	$48.70	6
014	8850806	DOWEL	8850806 DOWEL GRANO	-	1	Enquire
015	2132599	CLUTCH DRIVEN	2132599 CLUTCH DRIVEN (Sachs)	$3,051.80	1
016	2132713	DOWEL	2132713 DOWEL GRANO	$51.21	3
017	8801206	BUSHING	8801206 BUSHING BOCCOLA	$4.57	2
018	2128866	PAWL	2128866 PAWL NOTTOLINO	$424.24	2
019	2132714	FLYWHEEL WITH PINS	2132714 FLYWHEEL WITH PINS VOLANO MOTORE CON PIOLI	$2,826.36	1
