Main Shaft of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

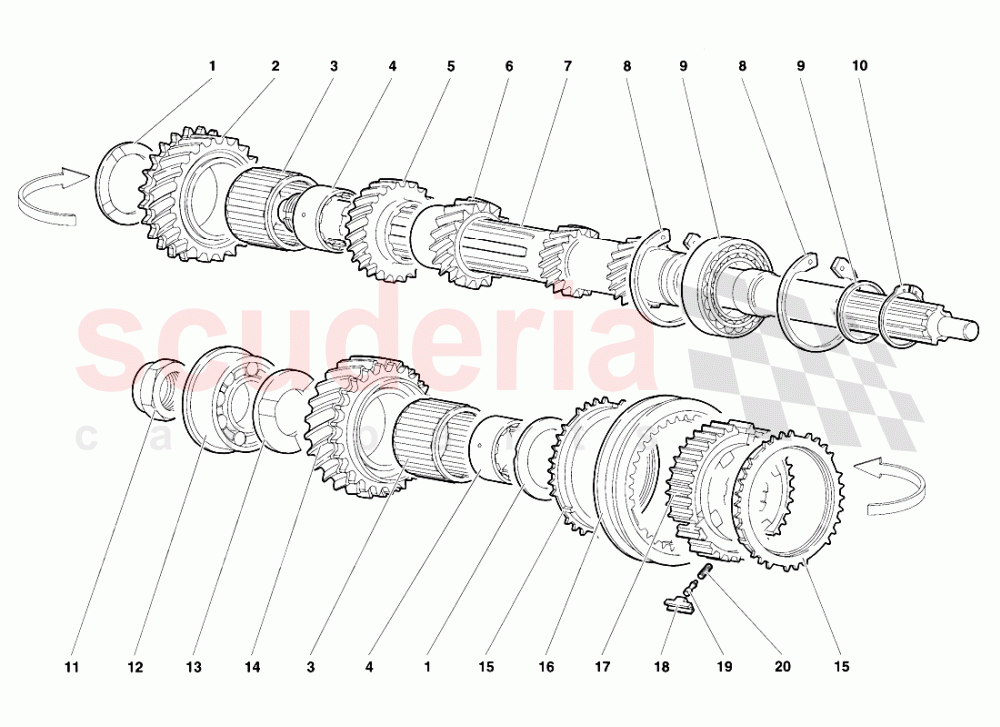

Lamborghini Diablo VT (1993-1998) - Main Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424864	WASHER	2424864 WASHER DISTANZIALE	$1,527.34	2
002	2424889	GEAR	2424889 GEAR INGRANAGGIO 4 - MARCIA	$380.01	1
003	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIAARULLI	$44.66 MSRP: ~~50.10~~ (10.9% off)	2
004	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$809.63	2
005	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$238.67 MSRP: ~~259.00~~ (7.8% off)	1
006	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$234.60 MSRP: ~~254.00~~ (7.6% off)	1
007	2430938	MAIN SHAFT	2430938 MAIN SHAFT ALBERO PRIMARIO	$991.71 MSRP: ~~1,075.00~~ (7.7% off)	1
008	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.17	2
009	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
010	2424859	RING	2424859 RING ANELLO	$22.09 MSRP: ~~23.90~~ (7.6% off)	1
011	2431824	NUT	2431824 NUT DADO	$251.42	1
012	8503006	BEARING	8503006 BEARING CUSCINETTO	$648.78	1
013	2424861	SPACER	2424861 SPACER DISTANZIALE	$137.20	1
014	2426702	GEAR	2426702 GEAR INGRANAGGIO 5 - MARCIA	$2,207.00	1
015	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,425.95	2
016	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO	$1,291.78 MSRP: ~~1,395.00~~ (7.4% off)	1
017	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	$304.70	1
018	2421420	BRAKE PAD	2421420 BRAKE PAD PATTINO	$27.73	3
019	2421419	PIN	2421419 PIN PERNO	$32.51	3
020	2421418	SPRING	2421418 SPRING MOLLA	$63.12	3
