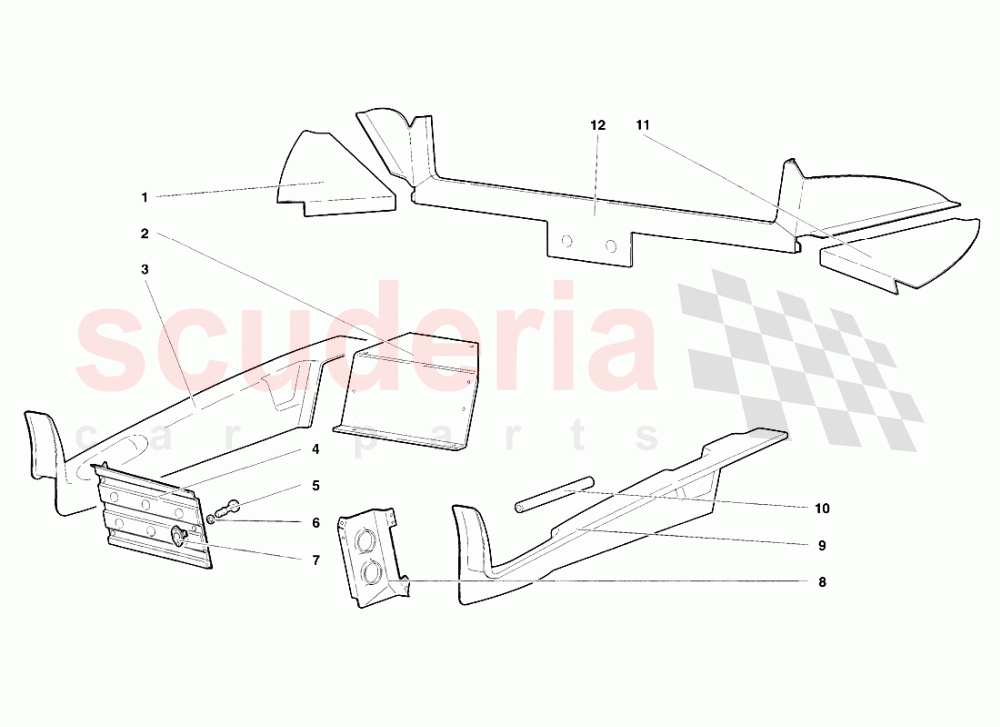

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9458233	RIGHT PANEL	9458233 RIGHT PANEL PANNELLO DX	$76.56 MSRP: ~~97.10~~ (21.2% off)	1
002	9458605	PANEL (E.C.U.)	9458605 PANEL (E.C.U.) PANNELLO (CENTRALINE)	$72.62	1
003	9458608	RIGHT PANEL	9458608 RIGHT PANEL COPRIBRANCARDO DX	$815.21	1
004	9458383	PLATE	9458383 PLATE PIASTRA POGGIAPIEDI	$112.22 MSRP: ~~121.50~~ (7.6% off)	1
005	9458391	PIN	9458391 PIN PERNO	$11.36 MSRP: ~~12.35~~ (8% off)	3
006	9458350	RUBBER RING	9458350 RUBBER RING ANELLO GOMMA	$0.82 MSRP: ~~7.22~~ (88.6% off)	3
007	9458349	CLIP	9458349 CLIP FERMAGLIO	$5.59 MSRP: ~~6.15~~ (9.1% off)	3
008	4131808	PLATE	4131808 PLATE PIASTRA	$222.32 MSRP: ~~248.50~~ (10.5% off)	1
009	9458609	LEFT PANEL	9458609 LEFT PANEL COPRIBRANCARDO SX	$815.21	1
010	9458601	SHIELD	9458601 SHIELD PROTEZIONE	-	1	Enquire
011	9458236	LEFT PANEL	9458236 LEFT PANEL PANNELLO SX	$61.85 MSRP: ~~66.50~~ (7% off)	1
012	9458239	PANEL	9458239 PANEL RIVESTIMENTO	$193.37	1
