Dashboard Instruments of Lamborghini Lamborghini Diablo SV (1998)

View All

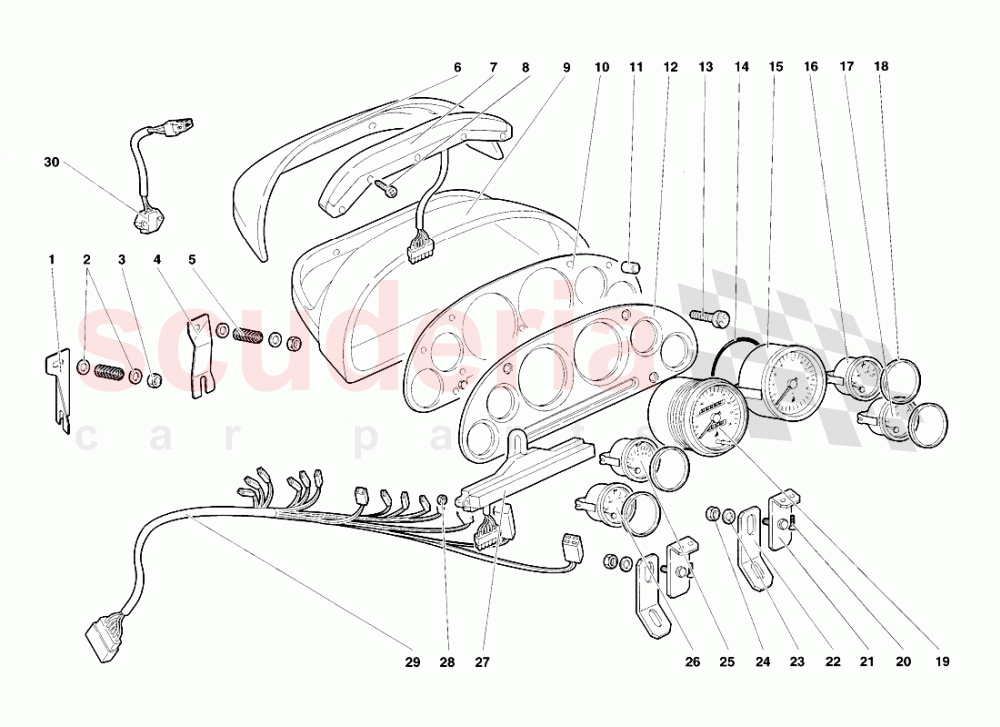

Lamborghini Diablo SV (1998) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9414422	LEFT BRACKET	9414422 LEFT BRACKET (Valid for GB - November 1998) STAFFA SX	$45.35	1
001	9414415	BRACKET	9414415 BRACKET STAFFA SX	$64.27	1
002	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
003	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	4
004	9414435	RIGHT BRACKET	9414435 RIGHT BRACKET (Valid for GB - November 1998) STAFFA DX	$31.40	1
004	9414414	BRACKET	9414414 BRACKET STAFFA DX	$41.14	1
005	9414416	SPRING	9414416 SPRING MOLLA	$17.42 MSRP: ~~19.60~~ (11.1% off)	2
006	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	$177.65	1
007	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	$373.78	1
008	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	5
009	9414437	FRONT DASHBOARD P.	9414437 FRONT DASHBOARD P. CRUSCOTTO ANT.	$549.11	1
010	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	$226.12	1
011	9414407	SPACER IN STOCK	9414407 SPACER DISTANZIALE IN STOCK	$30.52	5
012	9414429	PLATE	9414429 PLATE PIASTRA	$201.22	1
013	9414420	SCREW	9414420 SCREW VITE	$30.52	4
014	8609802	SEAL	8609802 SEAL ANELLO GOMMA	$0.58 MSRP: ~~7.28~~ (92% off)	1
015	6029656	REVOLUTION COUNT.	6029656 REVOLUTION COUNT. CONTAGIRI	$1,482.39	1
016	6029660	WATER TEMP. GAUGE	6029660 WATER TEMP. GAUGE INDICATORE TEMPERATURAACQUA	$372.62	1
017	6029657	FUEL LEVEL GAUGE	6029657 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$250.35	1
018	6030886	SPACER	6030886 SPACER DISTANZIALE	$51.16	4
019	6029655	SPEEDOMETER-KM	6029655 SPEEDOMETER-KM CONTACHILOMETRI	$1,237.93	1
019	6030773	SPEEDOMETER-MILES	6030773 SPEEDOMETER-MILES (Valid for U.K & USA model)	$1,352.30	1
020	8700457	SCREW	8700457 SCREW VITE	$0.07	4
021	9414433	BRACKET	9414433 BRACKET STAFFA	$58.61	2
022	9414432	BRACKET	9414432 BRACKET STAFFA	$30.06	2
023	8400509	WASHER	8400509 WASHER RONDELLA	$0.11 MSRP: ~~7.37~~ (98.5% off)	2
024	8200501	NUT	8200501 NUT DADO	$0.06	2
025	6029658	OIL PRESSURE GAUGE	6029658 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$372.62	1
026	6029659	OIL TEMPERATURE GA.	6029659 OIL TEMPERATURE GA. INDICATORE TEMPERATURA OLIO	$587.20	1
027	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPOSPIE	$590.72	1
028	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	2
029	6133198	ELECT CABLE	6133198 ELECT CABLE CABLAGGIO CRUSCOTTO	$186.36	1
030	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$218.66	1
