Seats And Safety Belts

Lamborghini Diablo SV (1998)

Find Your Part

Lamborghini Diablo SV (1998) - Seats and Safety Belts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

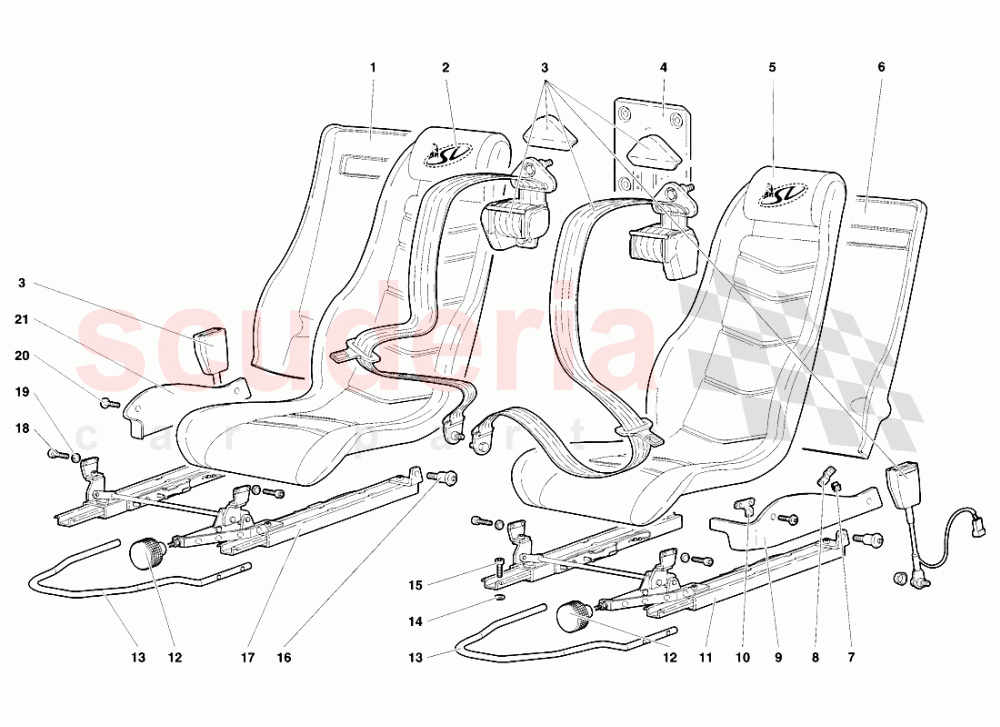

Seats and Safety Belts of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9435112
R. REAR PANEL SEAT
PANNELLO RETROSCHIENALE DX 		$213.12 (7.7% off) 1
002 9435039
RIGHT SEAT
SEDILE DX 		- 1 Enquire
003 9490310
SEATS BELTS
CINTURE Dl SICUREZZA 		- 1 Enquire
004 9490324
SUPPORT - SUPPORTO
O 		$63.21 1
005 9435040
LEFT SEAT
SEDILE SX 		- 1 Enquire
006 9435113
L. REAR PANEL SEAT
PANNELLO RETROSCHIENALE SX 		$213.12 (7.7% off) 1
007 8220503
CLIP
MOLLETTA 		$9.77 (10.4% off) 4
008 9435261
BRACKET
STAFFA 		$6.24 (8.9% off) 2
009 9435332
RIGHT SIDE PANEL
PANNELLO LATERALE SX 		$70.83 (7.7% off) 1
010 9435263
LEFT BRACKET
STAFFA SX 		$6.24 (8.9% off) 1
010 9435262
RIGHT BRACKET
STAFFA DX 		$6.24 (8.9% off) 1
011 9435019
LEFT SEAT GUIDE
GUIDA SEDILE SX 		$949.56 (7.8% off) 1
012 9435264
KNOB
POMELLO 		$6.07 (8% off) 2
013 9435207
LEVER
LEVA SEDILE 		- 2 Enquire
014 9435257
SPACER
DISTANZIALE 		$13.52 8
015 8700847
SCREW
VITE 		$1.73 (75.5% off) 8
016 9435232
PIN
PERNO 		$29.16 (10.8% off) 4
017 9435018
RIGHT SEAT GUIDE
GUIDA SEDILE DX 		$949.56 (7.8% off) 1
018 8700670
SCREW
VITE 		$0.26 (96.5% off) 8
019 8410601
WASHER
RONDELLA 		$0.04 (99.5% off) 8
020 8700544
SCREW
VITE 		$1.62 4
021 9435331
RIGHT SIDE PANEL
PANNELLO LATERALE DX 		$70.83 (7.7% off) 1
