Gearbox of Lamborghini Lamborghini Diablo SV (1998)

View All

Lamborghini Diablo SV (1998) - Gearbox

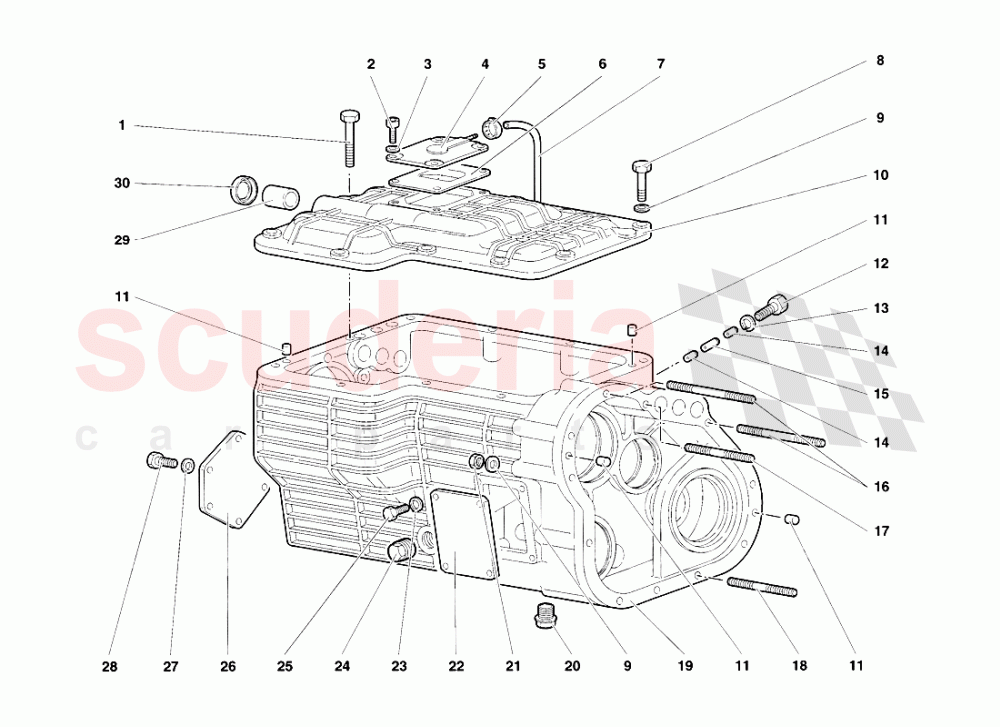

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
002	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	4
003	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	4
004	2428645	COVER	2428645 COVER COPERCHIO SFIATO	$118.68 MSRP: ~~128.50~~ (7.6% off)	1
005	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	1
006	2428643	PAN	2428643 PAN VASCHETTA	$19.35 MSRP: ~~20.95~~ (7.6% off)	1
007	2428649	VENT PIPE	2428649 VENT PIPE TUBO Dl SFIATO	-	1	Enquire
008	8100821	SCREW	8100821 SCREW VITE	$1.21	9
009	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	22
010	2424900	COVER	2424900 COVER COPERCHIO	$514.01 MSRP: ~~557.00~~ (7.7% off)	1
011	8850806	DOWEL	8850806 DOWEL GRAND	-	4	Enquire
012	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.26 MSRP: ~~7.23~~ (68.7% off)	1
013	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	1
014	2425223	ROD	2425223 ROD PUNTALINO	$26.12 MSRP: ~~28.30~~ (7.7% off)	2
015	2425224	ROD	2425224 ROD PUNTALINO	$26.78 MSRP: ~~29.00~~ (7.7% off)	1
016	8300895	STUD	8300895 STUD PRIGIONIERO	$7.53 MSRP: ~~8.40~~ (10.4% off)	2
017	8300897	STUD	8300897 STUD PRIGIONIERO	$13.92 MSRP: ~~15.50~~ (10.2% off)	1
018	8300916	STUD	8300916 STUD PRIGIONIERO	$4.85 MSRP: ~~5.30~~ (8.5% off)	9
019	2430746	GEAR BOX CASE	2430746 GEAR BOX CASE SCATOLA CAMBIO	$3,183.53 MSRP: ~~3,440.00~~ (7.5% off)	1
020	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$35.00	1
021	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	12
022	2435931	COVER	2435931 COVER COPERCHIO	$30.62 MSRP: ~~33.15~~ (7.6% off)	1
023	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	4
024	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$35.00	1
025	8100861	SCREW M8X90 IN STOCK	8100861 SCREW M8X90 VITE IN STOCK	$2.72 MSRP: ~~2.85~~ (4.6% off)	4
026	2425638	COVER	2425638 COVER COPERCHIO	$59.17	1
027	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	6
028	8100601	SCREW	8100601 SCREW VITE	$0.25	6
029	8801612	BUSHING	8801612 BUSHING BOCCOLA	-	1	Enquire
030	8611605	SEAL	8611605 SEAL ANELLOTENUTA	$14.89 MSRP: ~~16.60~~ (10.3% off)	1
