Gearbox Control Tower of Lamborghini Lamborghini Diablo SV (1998)

View All

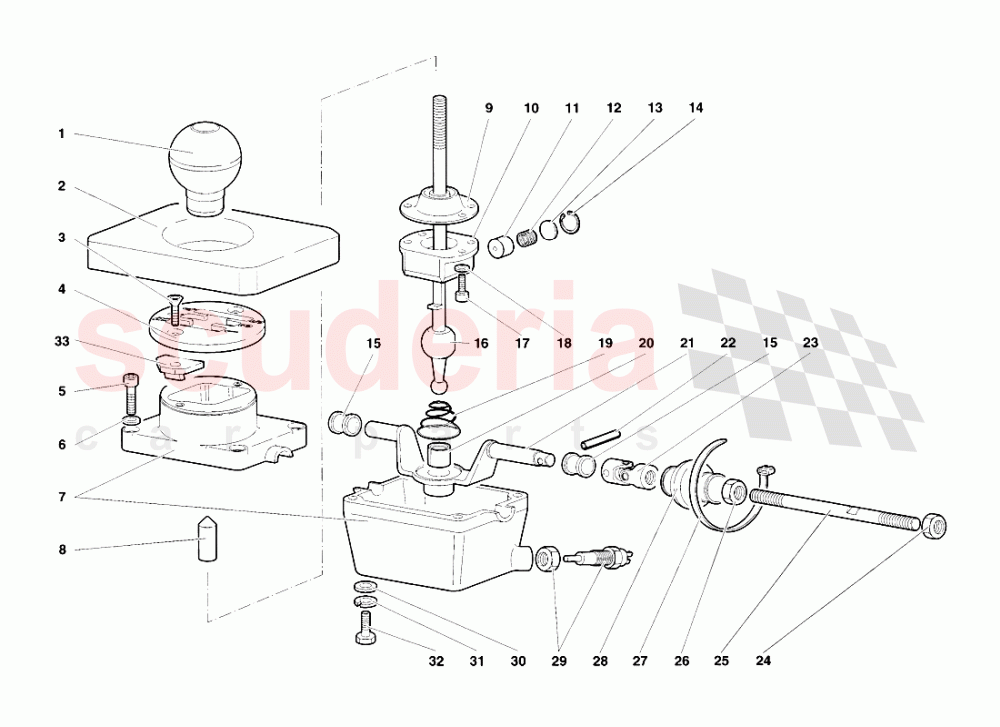

Lamborghini Diablo SV (1998) - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2437668	KNOB	2437668 KNOB POMELLO	-	1	Enquire
002	2431785	FLEX PAD	2431785 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
003	8700681	SCREW	8700681 SCREW VITE	$0.60	2
004	2433903	PLATE	2433903 PLATE PIASTRA Dl SELEZIONE	$269.35	1
005	8700804	SCREW IN STOCK	8700804 SCREW VITE IN STOCK	$1.53 MSRP: ~~7.33~~ (79.1% off)	4
006	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	4
007	240132003	CASE	240132003 CASE SCATOLA LAVORATA	$1,523.46 MSRP: ~~1,660.00~~ (8.2% off)	1
008	2437767	ADAPTER KNOB	2437767 ADAPTER KNOB ADATTATORE POMELLO	$33.21	1
009	2433043	BOOT	2433043 BOOT CUFFIA	$111.25	1
010	2434091	BALL SOCKFT	2434091 BALL SOCKFT SEDE SFERICA	$224.75 MSRP: ~~243.50~~ (7.7% off)	1
011	2427202	CYLINDER	2427202 CYLINDER CILINDRO	$79.37	1
012	2432167	SPRING	2432167 SPRING MOLLA	$11.36 MSRP: ~~12.70~~ (10.6% off)	1
013	2427204	PLUG	2427204 PLUG PIASTRINA	$9.63 MSRP: ~~10.40~~ (7.4% off)	1
014	8572201	RETAINER RING IN STOCK	8572201 RETAINER RING ANELLO RITEGNO IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
015	2433020	BUSHING	2433020 BUSHING BOCCOLA	$73.28	2
016	2437666	LEVER	2437666 LEVER LEVA	$1,164.33 MSRP: ~~1,300.00~~ (10.4% off)	1
017	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	4
018	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.90	4
019	2429160	SPRING	2429160 SPRING MOLLA	$160.17	1
020	2427207	BUSHING	2427207 BUSHING BOCCOLA	$300.07	1
021	2429161	SHAFT	2429161 SHAFT ALBERO	$284.43 MSRP: ~~308.00~~ (7.7% off)	1
022	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.25 MSRP: ~~7.35~~ (96.6% off)	1
023	410711615	RH JOINT	410711615 RH JOINT SNODO DX	$1,018.90	1
024	8201224	NUT	8201224 NUT DADO SX	-	1	Enquire
025	2434472	TIE ROD	2434472 TIE ROD TIRANTE	$36.50 MSRP: ~~39.45~~ (7.5% off)	1
026	8201223	NUT	8201223 NUT DADO DX	-	1	Enquire
027	8830305	CLAMP	8830305 CLAMP FASCETTA	$0.37 MSRP: ~~7.33~~ (95% off)	2
028	2434614	BOOT	2434614 BOOT CUFFIA	-	1	Enquire
029	2408637	SWITCH	2408637 SWITCH INTERRUTTORE RETROMARCIA	$109.49	1
030	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	4
031	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
032	8100827	SCREW M8X25	8100827 SCREW M8X25 VITE	$0.37 MSRP: ~~7.33~~ (95% off)	4
033	2433904	PLATE (REVERSE)	2433904 PLATE (REVERSE) PIASTRINO PER RETROMARCIA	$750.74	1
