Gearbox Oil Pump of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

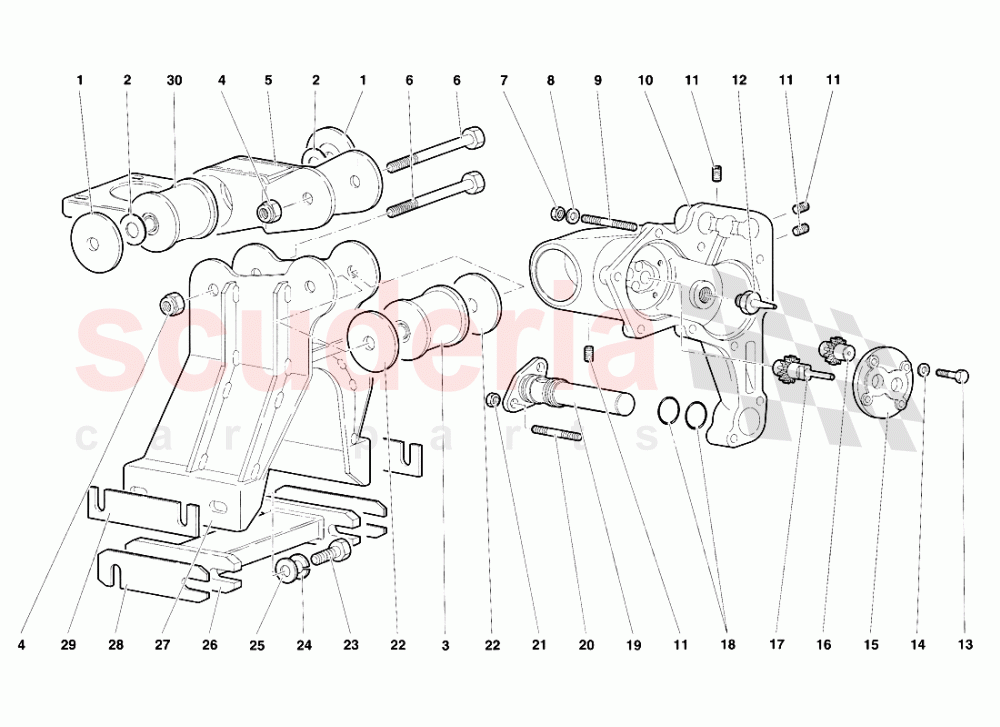

Lamborghini Diablo SV (1995-1997) - Gearbox Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2433939	SPACER	2433939 SPACER DISTANZIALE	$225.71	2
002	8401421	WASHER	8401421 WASHER RONDELLA	$0.50 MSRP: ~~7.29~~ (93.1% off)	2
003	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$187.48 MSRP: ~~190.50~~ (1.6% off)	1
004	8201414	NUT	8201414 NUT DADO	$19.21 MSRP: ~~20.90~~ (8.1% off)	2
005	2433937	SUPPORT - SUPPORTO	2433937 SUPPORT - SUPPORTO O	$387.77 MSRP: ~~421.00~~ (7.9% off)	1
006	8101411	SCREW	8101411 SCREW VITE	$6.08 MSRP: ~~6.75~~ (9.9% off)	2
007	8200806	NUT	8200806 NUT DADO	$0.35 MSRP: ~~7.33~~ (95.2% off)	8
008	8410805	WASHER	8410805 WASHER RONDELLA	$0.43	8
009	8300840	STUD	8300840 STUD PRIGIONIERO	$3.15 MSRP: ~~3.40~~ (7.4% off)	8
010	2431783	COVER	2431783 COVER COPERCHIO	$2,390.18	1
011	8701204	PLUG	8701204 PLUG TAPPO	$1.95 MSRP: ~~2.15~~ (9.3% off)	4
012	2425259	JET	2425259 JET UGELLO	$19.10 MSRP: ~~21.35~~ (10.5% off)	1
013	8100617	SCREW	8100617 SCREW VITE	$5.43 MSRP: ~~6.00~~ (9.5% off)	4
014	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.86	4
015	2431778	COVER	2431778 COVER COPERCHIO	$401.64 MSRP: ~~435.00~~ (7.7% off)	1
016	2425185	DRIVEN GEAR	2425185 DRIVEN GEAR INGRANAGGIO CONDOTTO	$1,040.35	1
017	2425184	GEAR	2425184 GEAR INGRANAGGIO	$924.82	1
018	8602301	SEAL	8602301 SEAL ANELLO TENUTA	$1.62 MSRP: ~~7.04~~ (77% off)	2
019	2425246	OIL FILTER	2425246 OIL FILTER FILTRO OLIO	$166.07	1
020	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$5.68 MSRP: ~~6.30~~ (9.8% off)	2
021	8200821	NUT	8200821 NUT DADO	$2.62 MSRP: ~~2.80~~ (6.4% off)	2
022	2434272	WASHER	2434272 WASHER RONDELLA	$46.72	2
023	8100862	SCREW	8100862 SCREW VITE	$0.60	4
024	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
025	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	4
026	2433990	CROSSRAIL	2433990 CROSSRAIL TRAVERSA	$42.89 MSRP: ~~46.35~~ (7.5% off)	1
027	2433346	SUPPORT - SUPPORTO	2433346 SUPPORT - SUPPORTO O	$405.12 MSRP: ~~439.00~~ (7.7% off)	1
028	2433991	SPACER	2433991 SPACER DISTANZIALE	$57.13	1
029	4126766	SPACER	4126766 SPACER DISTANZIALE	-	1	Enquire
030	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$187.48 MSRP: ~~190.50~~ (1.6% off)	1
