Clutch of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Clutch

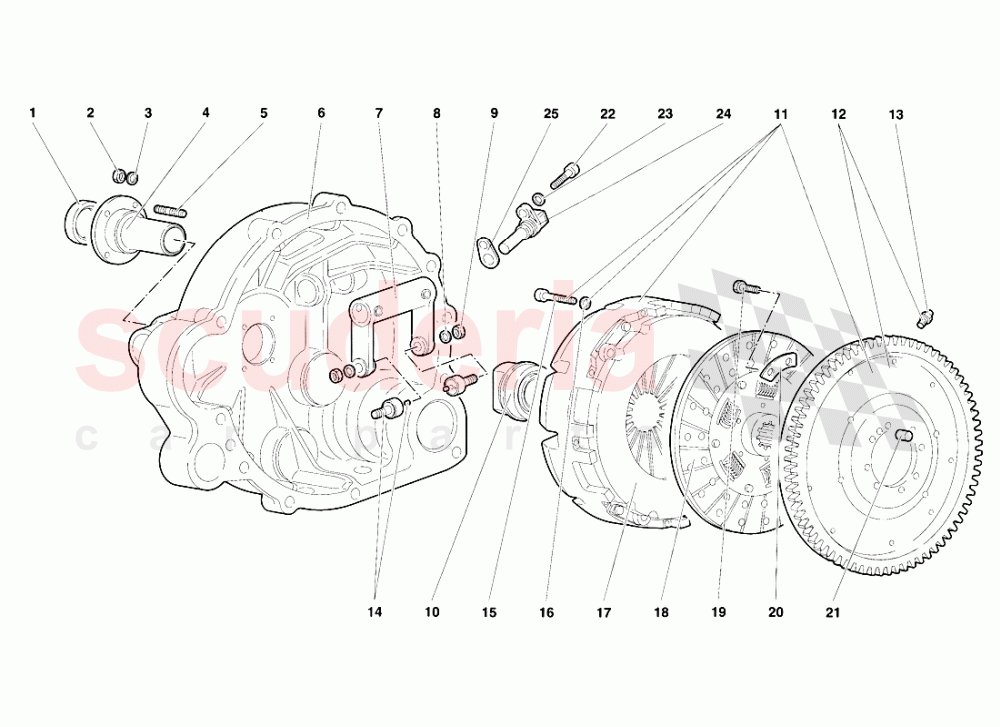

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8613206	SEAL IN STOCK	8613206 SEAL ANELLO TENUTA IN STOCK	$18.49 MSRP: ~~20.20~~ (8.5% off)	1
002	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	4
003	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.24 MSRP: ~~7.15~~ (82.7% off)	4
004	2435495	SUPPORT - SUPPORTO REGGISPINTA	2435495 SUPPORT - SUPPORTO REGGISPINTA O REGGISPINTA	$739.68	1
005	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.60 MSRP: ~~5.10~~ (9.8% off)	4
006	2437018	CLUTCH BELL HOUS.	2437018 CLUTCH BELL HOUS. CAMPANA FRIZIONE	$5,985.60	1
007	2129843	FORK	2129843 FORK FORCELLA COMANDO FRIZIONE	$5,314.55	1
008	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
009	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	2
010	2135367	SLEEVE T/OBEARING	2135367 SLEEVE T/OBEARING MANICOTTO DISINNESTO	$1,724.18	1
011	2137138	PRES. PLATE - FLYWH.	2137138 PRES. PLATE - FLYWH. SPINGIDISCO - VOLANO	$2,019.80	1
012	2134891	FLYWHEEL WITH PINS	2134891 FLYWHEEL WITH PINS VOLANO MOTORE CON PIOLI	$2,812.56	1
013	7M105357	PIN	7M105357 PIN	$48.46	6
014	2130016	PAWL	2130016 PAWL NOTTOLINO	$173.13	2
015	WHT002960	SCREW IN STOCK	WHT002960 SCREW VITE IN STOCK	$8.22	9
016	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.60	9
017	2135365	PRESSURE PLATE	2135365 PRESSURE PLATE	$764.97 MSRP: ~~832.00~~ (8.1% off)	1
018	7M141031A	Clutch Disc IN STOCK	7M141031A Clutch Disc (Valeo) IN STOCK	$990.94	1
019	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 VITE IN STOCK	$18.21	8
020	410141179	Retaining Plate	410141179 Retaining Plate	$59.32	4
021	8850806	DOWEL	8850806 DOWEL GRAND	-	1	Enquire
022	8700670	SCREW	8700670 SCREW VITE	$0.26 MSRP: ~~7.35~~ (96.5% off)	1
023	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.50 MSRP: ~~7.38~~ (52.6% off)	1
024	86927321	TIMING SENSOR	86927321 TIMING SENSOR TRASMETTITORE	$112.56 MSRP: ~~118.00~~ (4.6% off)	1
025	2437780	SHIM	2437780 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
