Water Cooling System of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

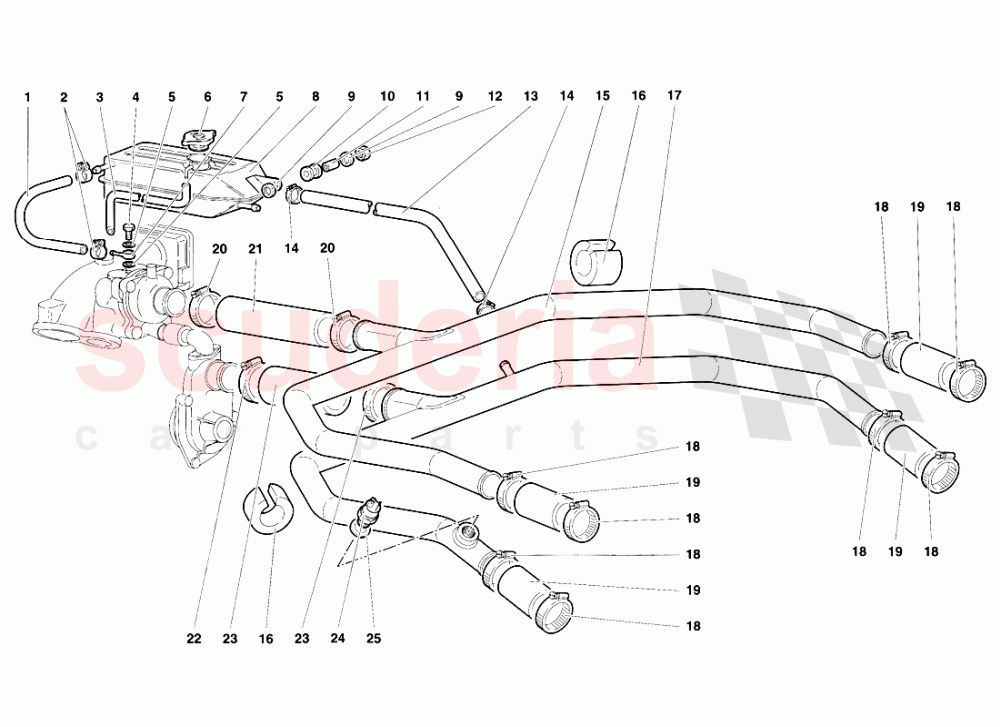

Lamborghini Diablo SV (1995-1997) - Water Cooling System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1735264	PIPE	1735264 PIPE TUBO	$15.49 MSRP: ~~16.90~~ (8.3% off)	1
002	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.04	2
003	1731993	PIPE IN STOCK	1731993 PIPE TUBO IN STOCK	$12.43 MSRP: ~~13.50~~ (7.9% off)	1
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.05	1
005	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
006	1734185	TANK CAP	1734185 TANK CAP TAPPO SERBATOIO	$128.79	1
007	1733714	CONNECTION	1733714 CONNECTION RACCORDO	$25.84 MSRP: ~~28.15~~ (8.2% off)	1
008	1733712	RESERVOIR	1733712 RESERVOIR SERBATOIO	$1,484.83 MSRP: ~~1,665.00~~ (10.8% off)	1
009	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
010	8610903	RUBBER BUSHING	8610903 RUBBER BUSHING BOCCOLA GOMMA	$15.27	1
011	8800602	BUSHING	8800602 BUSHING BOCCOLA	$29.94 MSRP: ~~33.60~~ (10.9% off)	1
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	1
013	1737088	PIPE	1737088 PIPE TUBO	$70.43 MSRP: ~~79.30~~ (11.2% off)	1
014	8831524	STRAP	8831524 STRAP FASCETTA	-	2	Enquire
015	1735106	PIPE	1735106 PIPE TUBO	$164.59 MSRP: ~~179.50~~ (8.3% off)	1
016	7L121199	PROTECTION	7L121199 PROTECTION PROTEZIONE	$18.72	4
017	1735037	PIPE	1735037 PIPE TUBO	$337.27	1
018	8833001	STRAP	8833001 STRAP FASCETTA	$9.35 MSRP: ~~10.40~~ (10.1% off)	8
019	1730574	PIPE	1730574 PIPE TUBO	-	4	Enquire
020	N0245022	CLAMP	N0245022 CLAMP FASCETTA	$5.25	2
021	1732812	PIPE	1732812 PIPE TUBO	$114.96	1
022	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
023	7M121057	PIPE	7M121057 PIPE	$92.63	1
024	1724565	Fan Switch	1724565 Fan Switch INTERRUTTORE TERMOMETRICO	$227.64	1
025	8402202	WASHER IN STOCK	8402202 WASHER RONDELLA IN STOCK	$3.98 MSRP: ~~4.45~~ (10.6% off)	1
