Engine Oil Breathing System

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Engine Oil Breathing System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

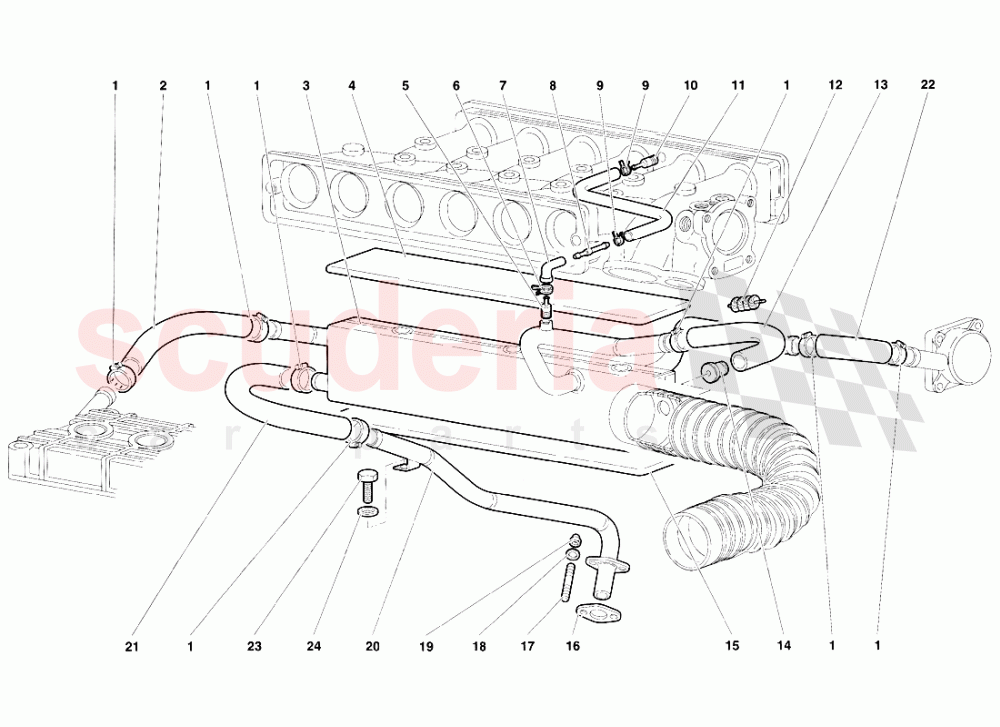

Engine Oil Breathing System of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8832003
CLAMP
FASCETTA
IN STOCK 		$41.04 7
002 1533391
PIPE
TUBO 		$108.87 1
003 1533385
TANK
SERBATOIO 		$541.61 1
004 1533448
INSULATOR
ISOLANTE 		$33.62 (7.8% off) 1
005 1328721
CONNECTION
RACCORDO 		$170.88 1
006 8830122
CLAMP
FASCETTA 		$0.32 (95.6% off) 1
007 7L131756
CONNECTOR
RACCORDO 90 - 		$26.61 1
008 1329319
ADAPTER
RACCORDO 		$1.09 (84.8% off) 1
009 8830128
CLAMP
FASCETTA 		$0.43 2
010 1328721
CONNECTION
RACCORDO 		$170.88 1
011 1333445
PIPE
TUBO 		$14.42 1
012 1532768
FLAME TRAP
SPEGNIFIAMMA 		$22.82 (8% off) 1
013 1533775
PIPE
TUBO 		$113.59 1
014 1333773
CONNECTION
RACCORDO 		$22.46 (8% off) 1
015 1533447
INSULATOR
ISOLANTE 		$73.08 (7.8% off) 1
016 1831058
GASKET
GUARNIZIONE 		$21.49 1
017 8300610
STUD BOLT
PRIGIONIERO 		$22.91 (10.7% off) 2
018 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
019 N01118312
HEXAGON NUT, SELF-LOCKING
DADO
IN STOCK 		$2.07 2
020 1532643
PIPE
TUBO 		$68.62 (7.8% off) 1
021 1532654
PIPE
TUBO 		$75.06 1
022 1533390
PIPE
TUBO 		$144.84 1
023 8100601
SCREW
VITE 		$0.25 1
024 WHT003052
WASHER 4,3
RONDELLA
IN STOCK 		$3.51 (52.4% off) 1
