Handbrake of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Handbrake

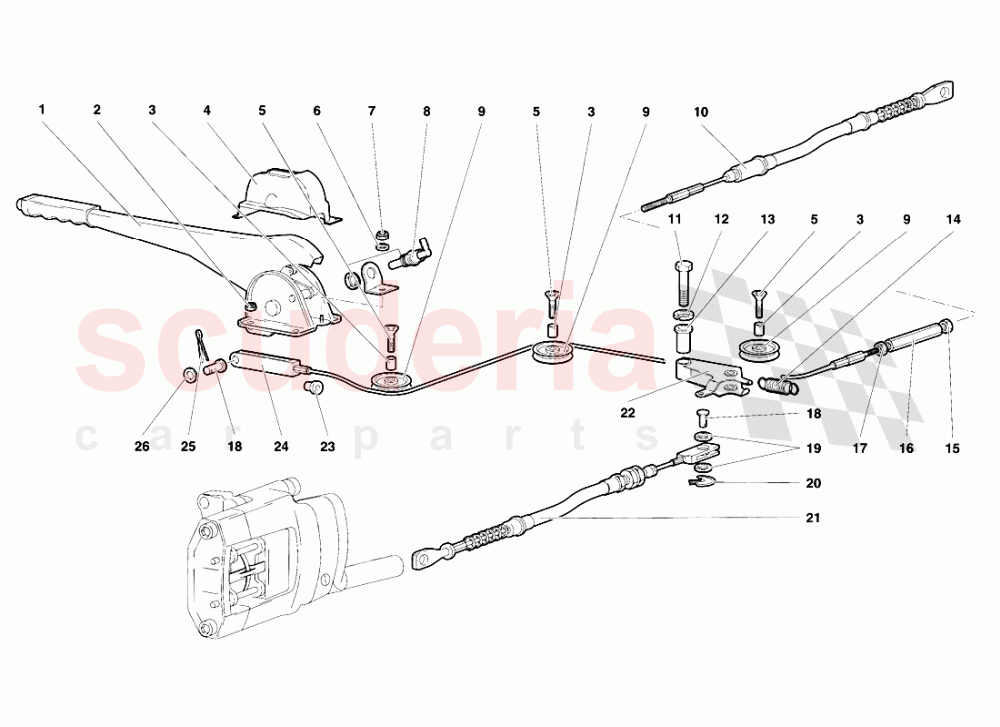

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410711301D	HAND BRAKE LEVER	410711301D HAND BRAKE LEVER	$3,638.70	1
002	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	4
003	3330827	BUSHING	3330827 BUSHING BOCCOLA	-	3	Enquire
004	9458374	CASE	9458374 CASE COPRI LEVA	$100.89	1
005	8700851	SCREW	8700851 SCREW VITE	$0.78 MSRP: ~~7.26~~ (89.3% off)	3
006	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	1
007	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	1
008	3319356	SWITCH	3319356 SWITCH INTERRUTTORE PER SPIA	$32.95	1
009	3332512	PULLEY	3332512 PULLEY CARRUCOLA	-	3	Enquire
010	3332762	RIGHT TIE ROD	3332762 RIGHT TIE ROD TIRANTE DX	$229.06	1
011	8101407	SCREW M14X55	8101407 SCREW M14X55 VITE	$4.98 MSRP: ~~5.45~~ (8.6% off)	1
012	8411502	WASHER	8411502 WASHER RONDELLA	$2.39	1
013	3330828	SPACER	3330828 SPACER DISTANZIALE	-	1	Enquire
014	3330829	SPRING	3330829 SPRING MOLLA	-	1	Enquire
015	8200607	NUT M6	8200607 NUT M6 DADO	$11.93 MSRP: ~~13.30~~ (10.3% off)	1
016	413609206	ADJUSTING SLEEVE	413609206 ADJUSTING SLEEVE REGISTRO	$61.41	1
017	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.22 MSRP: ~~7.33~~ (42.4% off)	1
018	410609789	JOURNAL	410609789 JOURNAL PERNO	$28.85	2
019	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
020	4207085	CLIP	4207085 CLIP FERMO	$80.00	1
021	3332751	LEFT TIE ROD	3332751 LEFT TIE ROD TIRANTE SX	$166.78	1
022	3333935	ROCKER	3333935 ROCKER BILANCIERE	-	1	Enquire
023	3330880	RUBBER BUSHING	3330880 RUBBER BUSHING BOCCOLA GOMMA	-	1	Enquire
024	3330816	TIE ROD	3330816 TIE ROD TIRANTE CENTRALE	$256.55	1
025	8820201	SPLIT PIN	8820201 SPLIT PIN COPIGLIA	$6.09 MSRP: ~~6.60~~ (7.7% off)	1
026	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
