Rear Brakes of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

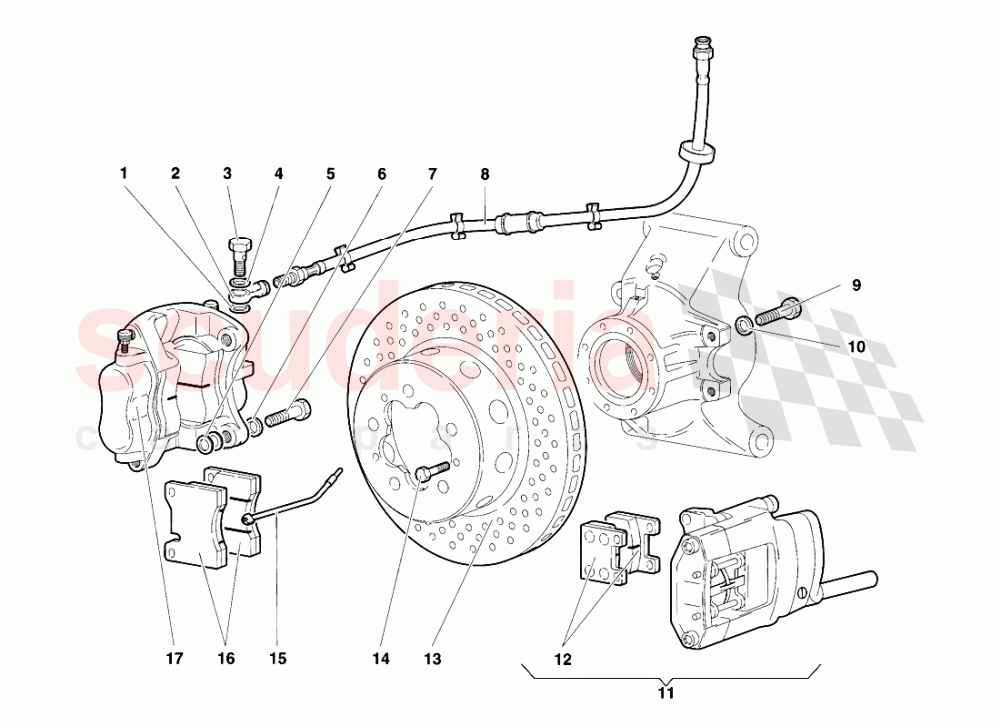

Lamborghini Diablo SE30 (1993-1995) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3113905	WASHER	3113905 WASHER RONDELLA	$2.10	2
002	3113904	CONNECTION	3113904 CONNECTION RACCORDO	$154.33	2
003	3113907	SCREW	3113907 SCREW VITE	$25.75	2
004	3113906	WASHER	3113906 WASHER RONDELLA	$19.56	2
005	3230725	SHIM	3230725 SHIM SPESSORE Dl REGISTRO 0,6 MM	$0.38	1
005	3230726	SHIM	3230726 SHIM SPESSORE Dl REGISTRO 0,8 MM	$0.38	1
005	3230724	SHIM	3230724 SHIM SPESSORE Dl REGISTRO 0,5 MM	$0.38	1
005	3230727	SHIM	3230727 SHIM SPESSORE Dl REGISTRO 1,0 MM	$3.06	1
005	3230719	SHIM	3230719 SHIM SPESSORE Dl REGISTRO 0,05 MM	$0.55	1
005	3230721	SHIM	3230721 SHIM SPESSORE Dl REGISTRO 0,2 MM	$0.38	1
005	3230720	SHIM	3230720 SHIM SPESSORE Dl REGISTRO 0,1 MM	$13.82	1
005	3230722	WASHER	3230722 WASHER SPESSORE Dl REGISTRO 0,3 MM	$1.05	1
005	3230723	SHIM	3230723 SHIM SPESSORE Dl REGISTRO 0,4 MM	$0.38	1
006	8401217	WASHER	8401217 WASHER RONDELLA	$5.50	4
007	8101247	SCREW	8101247 SCREW VITE	$6.56	4
008	3229882	PIPE IN STOCK	3229882 PIPE TUBO FRENI POSTERIORI IN STOCK	$162.63 MSRP: ~~174.50~~ (6.8% off)	2
009	8101246	SCREW	8101246 SCREW VITE	$57.70	4
010	8411302	WASHER	8411302 WASHER RONDELLA	-	4	Enquire
011	3333274	RIGHT BRAKE CALIPER	3333274 RIGHT BRAKE CALIPER PINZA FRENI DX	$2,411.49	1
011	3333273	LEFT BRAKE CALIPER	3333273 LEFT BRAKE CALIPER PINZA FRENI SX	$2,411.49	1
012	3331672	KIT BRAKE PADS IN STOCK	3331672 KIT BRAKE PADS KIT 4 PASTIGLIE FRENO A MANO - USE 108134 as alternative IN STOCK	$205.45	4
013	3234862	REAR BRAKE DISC	3234862 REAR BRAKE DISC DISCO FRENO POSTERIORE	$3,107.04	2
014	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.16 MSRP: ~~7.23~~ (70.1% off)	6
015	3135644	ELECT CABLE	3135644 ELECT CABLE CAVO USURA FRENI	$332.46	2
016	3235293	REAR BRAKE PADS	3235293 REAR BRAKE PADS	$996.99	1
017	3235601	LEFT BRAKE CALIPER	3235601 LEFT BRAKE CALIPER PINZA FRENI POSTERIORE SX	$2,007.63	1
017	3235600	RIGHT BRAKE CALIPER	3235600 RIGHT BRAKE CALIPER PINZA FRENI POSTERIORE DX	$2,007.63	1
