Front Brakes of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

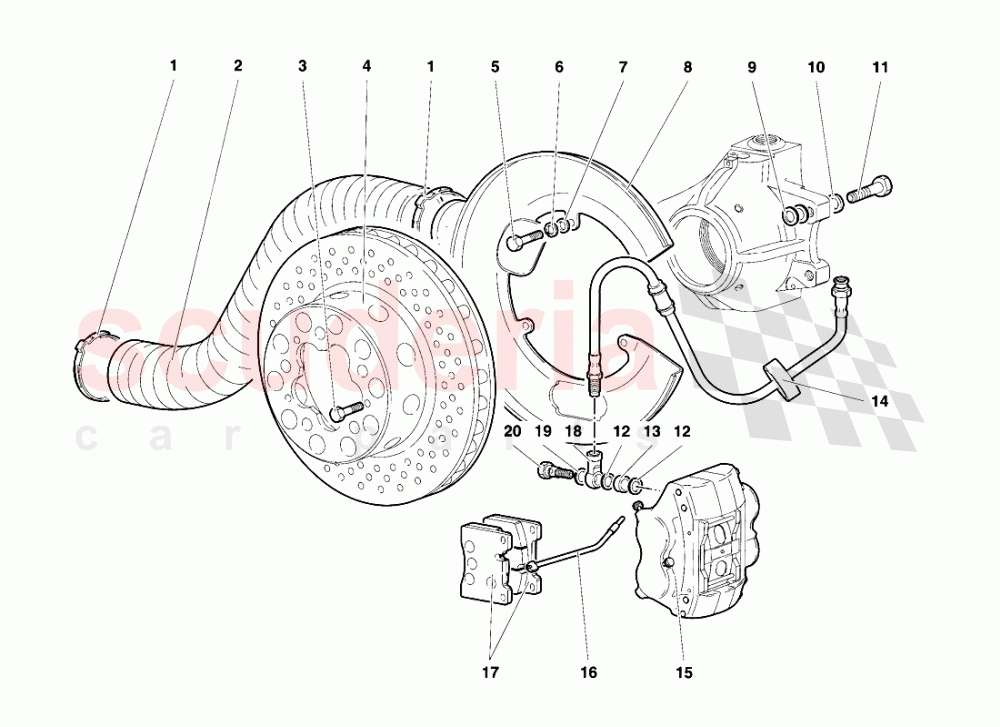

Lamborghini Diablo SE30 (1993-1995) - Front Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8836302	CLAMP	8836302 CLAMP FASCETTA	$10.56 MSRP: ~~11.75~~ (10.1% off)	4
002	9453133	PIPE	9453133 PIPE TUBO FLESSIBILE	$227.43	2
003	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.25 MSRP: ~~7.23~~ (68.9% off)	6
004	3134861	FRONT BRAKE DISC	3134861 FRONT BRAKE DISC DISCO FRENO ANTERIORE	$1,442.99	2
005	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	6
006	8410508	WASHER	8410508 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	6
007	8400509	WASHER	8400509 WASHER RONDELLA	$0.11 MSRP: ~~7.37~~ (98.5% off)	6
008	3135098	LEFT MUDGUARDS	3135098 LEFT MUDGUARDS PARASPRUZZI SX	$382.43	1
008	3135097	RIGHT MUDGUARDS	3135097 RIGHT MUDGUARDS PARASPRUZZI DX	$382.43	1
009	3230722	WASHER	3230722 WASHER RONDELLA SP = 0,3 MM	$1.04	1
009	3230719	SHIM	3230719 SHIM RONDELLA SP = 0,05 MM	$0.54	1
009	3230720	SHIM	3230720 SHIM RONDELLA SP = 0,1 MM	$13.63	1
009	3230723	SHIM	3230723 SHIM RONDELLA SP = 0,4 MM	$0.37	1
009	3230725	SHIM	3230725 SHIM RONDELLA SP = 0,6 MM	$0.37	1
009	3230726	SHIM	3230726 SHIM RONDELLA SP = 0,8 MM	$0.37	1
009	3230727	SHIM	3230727 SHIM RONDELLA SP = 1 MM	$3.01	1
009	3230724	SHIM	3230724 SHIM RONDELLA SP = 0,5 MM	$0.37	1
010	8401306	WASHER	8401306 WASHER RONDELLA	$2.13	4
010	3230721	SHIM	3230721 SHIM RONDELLA SP = 0,2 MM	$0.37	1
011	WHT003362	WASHER IN STOCK	WHT003362 WASHER RONDELLA IN STOCK	$1.33 MSRP: ~~7.17~~ (81.5% off)	4
012	3113906	WASHER	3113906 WASHER RONDELLA	$19.28	4
013	3129777	SPACER	3129777 SPACER DISTANZIALE	$55.54	2
014	3129881	FRONT BRAKES PIPE	3129881 FRONT BRAKES PIPE TUBO FRENI ANTERIORI	$109.62	2
015	3135598	RIGHT BRAKE CALIPER	3135598 RIGHT BRAKE CALIPER PINZA FRENI DX	$1,979.79	1
015	3135599	LEFT BRAKE CALIPER	3135599 LEFT BRAKE CALIPER PINZA FRENI SX	$5,160.15	1
016	3135644	ELECT CABLE	3135644 ELECT CABLE CAVO ELETTRICO	$327.85	2
017	3135292	FRONT BRAKE PADS	3135292 FRONT BRAKE PADS PRICE EACH PAD	$488.90	4
018	3113904	CONNECTION	3113904 CONNECTION RACCORDO	$152.19	2
019	3113905	WASHER	3113905 WASHER RONDELLA	$2.07	2
020	3129778	SCREW	3129778 SCREW VITE	$55.14	2
