Climate Control 4 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

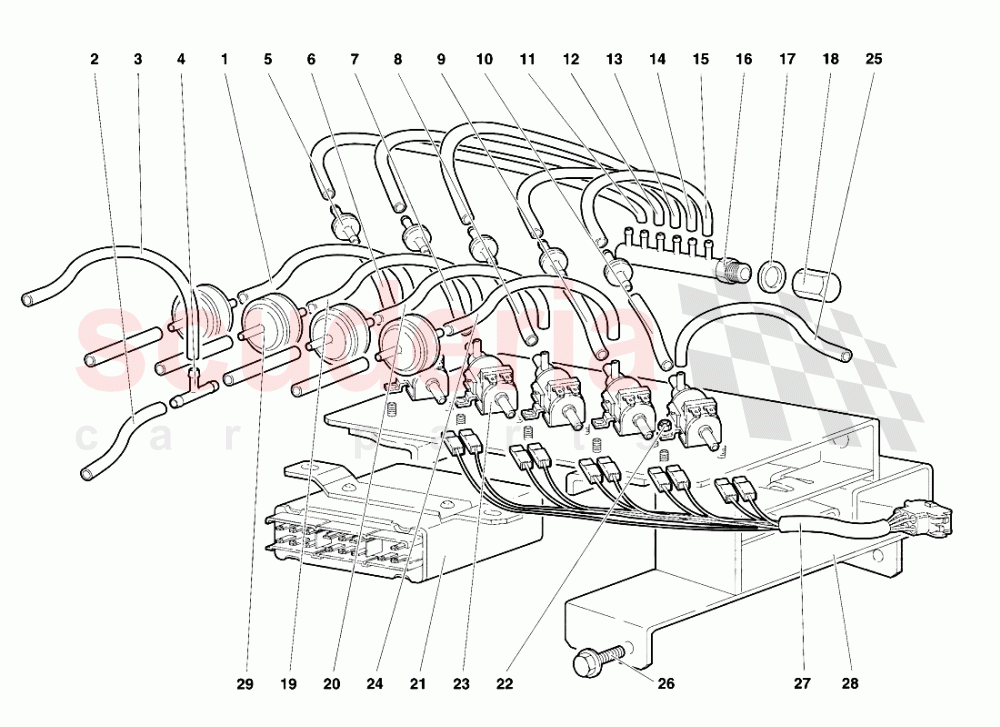

Lamborghini Diablo SE30 (1993-1995) - Climate Control 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414613	RED PIPE	9414613 RED PIPE TUBO ROSSO	$8.35	1
002	9414621	BLUE PIPE	9414621 BLUE PIPE TUBO BLU	$8.35	1
003	9414620	BLUE PIPE	9414620 BLUE PIPE TUBO BLU	$8.35	1
004	7014169	T UNION	7014169 T UNION RACCORDO	$22.94 MSRP: ~~25.65~~ (10.6% off)	1
005	4621574	VALVE	4621574 VALVE VALVOLA Dl NON RITORNO	$18.15	5
006	9414612	RED PIPE	9414612 RED PIPE TUBO ROSSO	$8.35	1
007	9414611	GREEN PIPE	9414611 GREEN PIPE TUBO VERDE	$8.35	1
008	9414610	BLUE PIPE	9414610 BLUE PIPE TUBO BLU	$8.35	1
009	9414609	WHITE PIPE	9414609 WHITE PIPE TUBO BIANCO	$8.35	1
010	9414608	BLACK PIPE	9414608 BLACK PIPE TUBO NERO	$8.35	1
011	9414601	RED PIPE	9414601 RED PIPE TUBO ROSSO	$8.35	1
012	9414602	GREEN PIPE	9414602 GREEN PIPE TUBO VERDE	$8.35	1
013	9414604	BLUE PIPE	9414604 BLUE PIPE TUBO BLU	$8.35	1
014	9414603	WHITE PIPE	9414603 WHITE PIPE TUBO BIANCO	$8.35	1
015	9414605	BLACK PIPE	9414605 BLACK PIPE TUBO NERO	$8.35	1
016	4621565	CONNECTION	4621565 CONNECTION RACCORDO	$74.79 MSRP: ~~81.00~~ (7.7% off)	1
017	8401008	WASHER	8401008 WASHER RONDELLA	-	1	Enquire
018	9414606	PLUG	9414606 PLUG TAPPO	$66.01 MSRP: ~~74.10~~ (10.9% off)	1
019	9414614	GREEN PIPE	9414614 GREEN PIPE TUBO VERDE	$8.35	1
020	9414615	BLUE PIPE	9414615 BLUE PIPE TUBO BLU	$8.35	1
021	4526659	ELECTRONIC CONT. U.	4526659 ELECTRONIC CONT. U. CENTRALINA CLIMATIZZAZIONE	$4,962.54	1
022	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	10	Enquire
023	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE ELETTROVALVOLA IN STOCK	$53.29	5
024	9414616	WHITE PIPE	9414616 WHITE PIPE TUBO BIANCO	$8.35	1
025	9414617	BLACK PIPE	9414617 BLACK PIPE TUBO NERO	$8.35	1
026	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	2
027	6130618	ELECT CABLE	6130618 ELECT CABLE CABLAGGIO ELETTROV.	$112.02 MSRP: ~~126.00~~ (11.1% off)	1
028	9414628	PLATE	9414628 PLATE PIASTRA SUPP.GRUPPO ELETT	$243.31 MSRP: ~~264.00~~ (7.8% off)	1
029	9414633	VALVE	9414633 VALVE VALVOLA	$152.58 MSRP: ~~170.50~~ (10.5% off)	4
