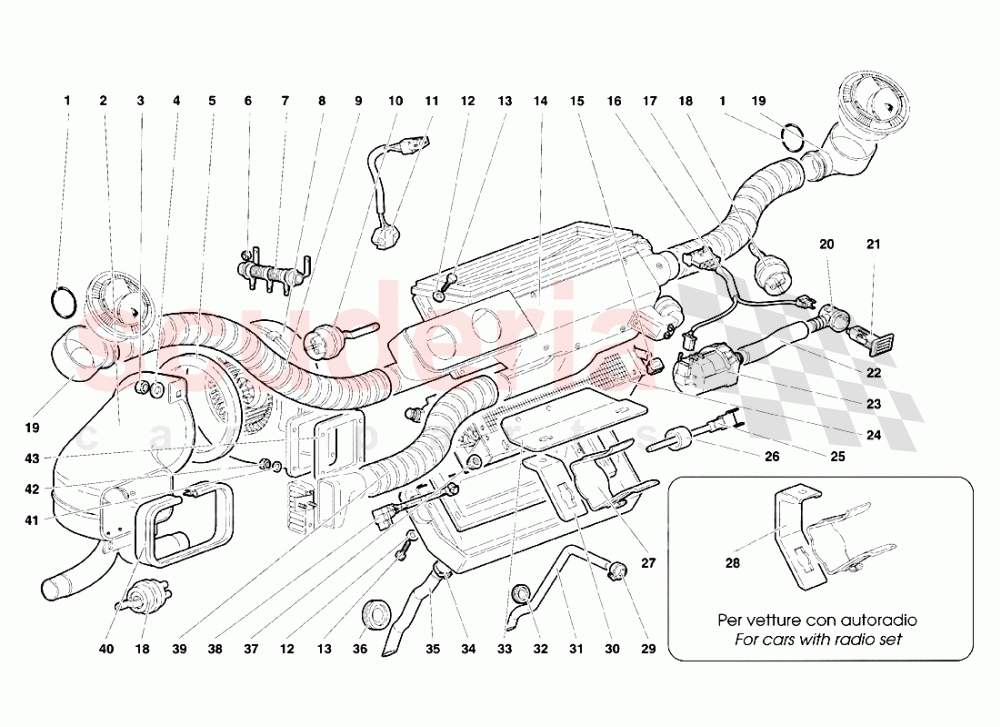

Lamborghini Diablo SE30 (1993-1995) - Climate Control 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8604401	SEAL IN STOCK	8604401 SEAL ANELLO TENUTA IN STOCK	$0.30 MSRP: ~~7.33~~ (95.9% off)	2
002	9453112	CONVEYOR	9453112 CONVEYOR CONVOGLIATORE	$693.74	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	3
004	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
005	9490202	GASKET	9490202 GASKET GUARNIZIONE	$9.78 MSRP: ~~10.60~~ (7.7% off)	1
006	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	2
007	1619328	RESISTANCE	1619328 RESISTANCE RESISTENZA	$142.32	1
008	4729405	ELECTROFAN	4729405 ELECTROFAN ELETTROVENTILATORE	$292.53	1
009	9414532	PIPE	9414532 PIPE TUBO FLESSIBILE	$79.32	1
010	9014529	CONTROL	9014529 CONTROL ATTUATORE	$101.48	1
011	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$219.16	1
012	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.08	8
013	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.15	2
014	9414003	CONVEYOR	9414003 CONVEYOR CONVOGLIATORE	$1,826.87	1
015	8220503	CLIP	8220503 CLIP MOLLETTA	$9.78 MSRP: ~~10.90~~ (10.3% off)	8
016	6130619	ELECT CABLE	6130619 ELECT CABLE CABLAGGIO	$50.61	1
017	9414531	PIPE	9414531 PIPE TUBO FLESSIBILE	$77.69	1
018	7014137	CONTROL	7014137 CONTROL ATTUATORE	$103.96	5
019	7014135	CONNECTION	7014135 CONNECTION RACCORDO	-	2	Enquire
020	4526666	CONNECTION	4526666 CONNECTION RACCORDO	$32.32 MSRP: ~~34.90~~ (7.4% off)	1
021	4526661	TEMPERATURE SENS.	4526661 TEMPERATURE SENS. SENSORE TEMPERATURA ABITACOLO	$158.41 MSRP: ~~172.00~~ (7.9% off)	1
022	6032223	PIPE	6032223 PIPE TUBO FLESSIBILE	$8.96 MSRP: ~~10.00~~ (10.4% off)	1
023	4526665	ELECTROFAN	4526665 ELECTROFAN ELETTROVENTOLA	$315.68 MSRP: ~~342.00~~ (7.7% off)	1
024	4530210	RADIATOR	4530210 RADIATOR EVAPORATORE RISCALDATORE	$9,618.01	1
025	4526663	TEMPERATURE SENS.	4526663 TEMPERATURE SENS. SENSORE TEMPERATURA	$1,834.57	1
026	4532839	PIPE	4532839 PIPE TUBO	$9.32 MSRP: ~~10.15~~ (8.2% off)	1
027	5931539	SUPPORT - SUPPORTO RADIO	5931539 SUPPORT - SUPPORTO RADIO SUPPORTO RADIO	$2.33 MSRP: ~~2.55~~ (8.6% off)	1
028	5935361	BRACKET	5935361 BRACKET STAFFA	$102.64	1
029	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$17.04	1
030	5935362	SUPPORT - (Valid for R.H.D. - March 1997) SUPPORTO	5935362 SUPPORT - (Valid for R.H.D. - March 1997) SUPPORTO STAFFA	$51.22	1
031	9414537	PIPE	9414537 PIPE TUBO SCARICO	$36.14 MSRP: ~~39.05~~ (7.5% off)	1
032	8612507	GASKET	8612507 GASKET GUARNIZIONE	$17.11	1
033	4535118	SUPPORT - SUPPORTO	4535118 SUPPORT - SUPPORTO O	$44.11	1
034	8832806	STRAP	8832806 STRAP FASCETTA	$2.85 MSRP: ~~3.00~~ (5% off)	1
035	9414540	PIPE	9414540 PIPE TUBO SCARICO	$59.32 MSRP: ~~64.20~~ (7.6% off)	1
036	8611606	GASKET	8611606 GASKET GUARNIZIONE	$1.62 MSRP: ~~7.04~~ (77% off)	1
037	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	2
038	4526664	TEMPERATURE SENS.	4526664 TEMPERATURE SENS. SENSORE	$36.76 MSRP: ~~39.85~~ (7.8% off)	1
039	9414536	PIPE	9414536 PIPE TUBO FLESSIBILE	$90.30	1
040	9490201	GASKET	9490201 GASKET GUARNIZIONE	$40.82 MSRP: ~~44.20~~ (7.6% off)	1
041	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	4
042	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.78 MSRP: ~~7.26~~ (89.3% off)	4
043	4731661	GASKET	4731661 GASKET GUARNIZIONE	$8.90 MSRP: ~~9.70~~ (8.2% off)	1
