Find Your Part

Climate Control 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

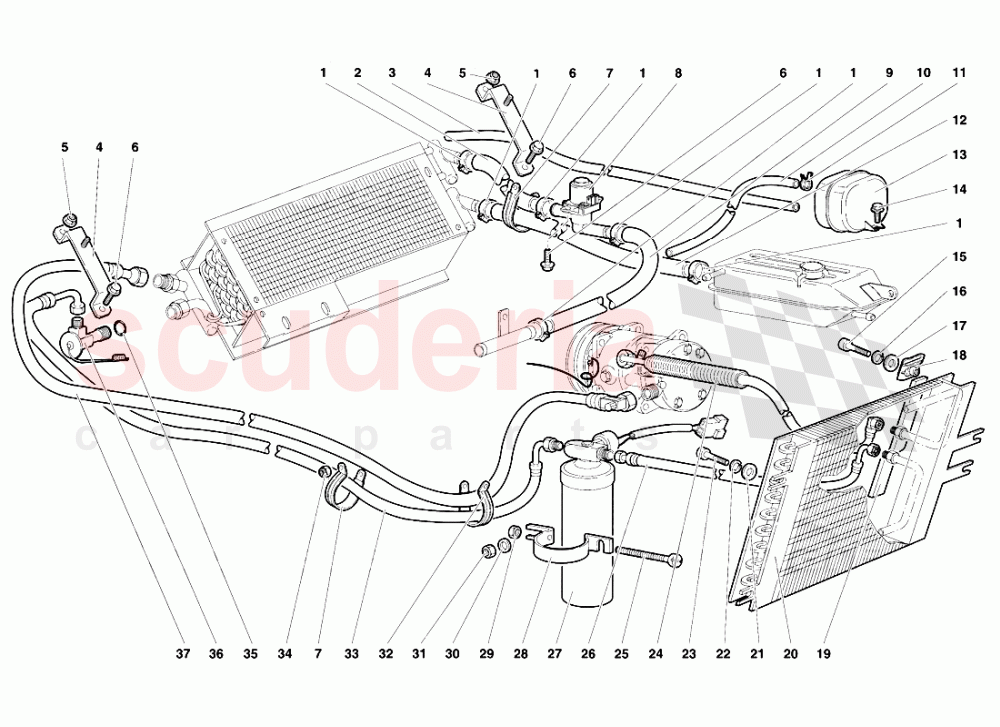

Lamborghini Diablo SE30 (1993-1995) - Climate Control 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$41.07	6
002	4734346	PIPE	4734346 PIPE TUBO FLESSIBILE	$189.39	1
003	9414600	PIPE	9414600 PIPE TUBO FLESSIBILE	$36.18 MSRP: ~~39.15~~ (7.6% off)	1
004	4131338	STRAP	4131338 STRAP FASCETTA	$38.61	2
005	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	2
006	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.08	2
007	8834003	CLAMP	8834003 CLAMP FASCETTA	$9.01	7
008	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$281.08	1
009	4734347	PIPE	4734347 PIPE TUBO FLESSIBILE	$185.36	1
010	6231411	PIPE	6231411 PIPE TUBO FLESSIBILE	$11.57 MSRP: ~~12.60~~ (8.2% off)	1
011	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
012	1733231	PIPE	1733231 PIPE TUBO FLESSIBILE	$196.86	1
013	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO A DEPRES-	$42.36 MSRP: ~~45.90~~ (7.7% off)	1
014	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.08	2
015	8700614	SCREW	8700614 SCREW VITE	$0.25	2
016	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
017	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
018	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	2
019	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.68 MSRP: ~~9.45~~ (8.1% off)	2
020	4531594	A/C CONDENSER	4531594 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$361.36	1
021	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
022	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	4
023	8700614	SCREW	8700614 SCREW VITE	$0.25	4
024	4530164	PIPE	4530164 PIPE TUBO FLESSIBILE	$725.38	1
025	8700542	SCREW	8700542 SCREW VITE	$0.64 MSRP: ~~7.26~~ (91.2% off)	1
026	4530165	PIPE	4530165 PIPE TUBO FLESSIBILE	$227.20	1
027	4534692	FILTER	4534692 FILTER FILTRO DEIDRATATORE	-	1	Enquire
028	4531395	STRAP	4531395 STRAP FASCETTA	$8.35 MSRP: ~~9.30~~ (10.2% off)	1
029	8200580	NUT	8200580 NUT DADO	-	1	Enquire
030	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
031	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
032	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.10 MSRP: ~~13.50~~ (10.4% off)	1
033	4530166	PIPE	4530166 PIPE TUBO FLESSIBILE	$380.23	1
034	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	7
035	8601103	SEAL	8601103 SEAL ANELLO TENUTA	$9.83	1
036	4530261	VALVE	4530261 VALVE VALVOLA Dl ESPANSIONE	$299.33	1
037	4530167	PIPE	4530167 PIPE TUBO FLESSIBILE	$353.63	1
