Crankase of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

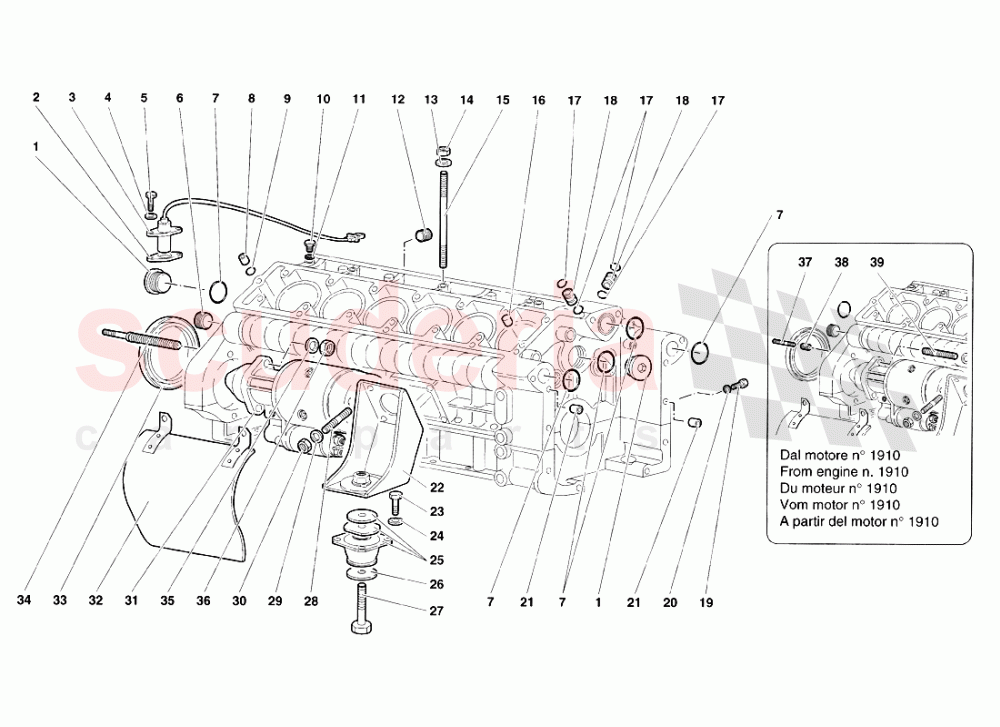

Lamborghini Diablo VT Roadster (1998-2000) - Crankase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1830023	PLUG	1830023 PLUG TAPPO	-	2	Enquire
002	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM SPESSORE Dl REGISTRO 0,2 MM	$5.13	1
002	1628602	SPACER	1628602 SPACER SPESSORE Dl REGISTRO 0,4 MM	-	1	Enquire
003	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$651.67	1
004	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
005	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	2
006	8933503	PLUG	8933503 PLUG TAPPO	-	2	Enquire
007	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$3.87	5
008	1832161	DOWEL	1832161 DOWEL GRAND	$360.08	2
009	WHT003059	SEAL RING IN STOCK	WHT003059 SEAL RING ANELLO TENUTA IN STOCK	$145.03	2
010	8101402	PLUG	8101402 PLUG TAPPO	$26.95 MSRP: ~~30.25~~ (10.9% off)	1
011	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
012	8931209	PLUG	8931209 PLUG TAPPO	-	1	Enquire
013	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	2
014	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	3
015	8300891	STUD	8300891 STUD PRIGIONIERO	$13.97 MSRP: ~~15.65~~ (10.7% off)	3
016	8850821	DOWEL	8850821 DOWEL GRANO	-	2	Enquire
017	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.07 MSRP: ~~7.29~~ (71.6% off)	4
018	1833995	DOWEL	1833995 DOWEL GRANO	$32.64	2
019	8100620	Bolt	8100620 Bolt VITE	$5.42 MSRP: ~~6.00~~ (9.7% off)	1
020	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
021	8851304	DOWEL	8851304 DOWEL GRANO	$58.64 MSRP: ~~65.90~~ (11% off)	2
022	1835941	SUPPORT - SUPPORTO	1835941 SUPPORT - SUPPORTO O	$289.66 MSRP: ~~315.00~~ (8% off)	2
023	8101031	SCREW	8101031 SCREW VITE	$0.86 MSRP: ~~7.24~~ (88.1% off)	8
024	8411014	WASHER	8411014 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	8
025	400199703A	Flexible Support	400199703A Flexible Support SUPPORTO ELASTICO	$408.08	2
026	N91089301	WASHER	N91089301 WASHER RONDELLA	$123.14	2
027	4131471	SCREW	4131471 SCREW VITE	$31.34 MSRP: ~~35.25~~ (11.1% off)	2
028	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	$6.12 MSRP: ~~6.85~~ (10.7% off)	8
029	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	8
030	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	8
031	7M911023	STARTER	7M911023 STARTER	$6,118.64	1
032	1635959	SHIELD	1635959 SHIELD PROTEZIONE	$1,218.51	1
033	7M103089	SEAL RING IN STOCK	7M103089 SEAL RING IN STOCK	$214.38	1
034	8301240	STUD	8301240 STUD PRIGIONIERO	$39.48	2
035	8411213	WASHER	8411213 WASHER RONDELLA	$1.91 MSRP: ~~2.10~~ (9% off)	2
036	1832869	NUT	1832869 NUT DADO	-	2	Enquire
037	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid from engine number 1910) PRIGIONIERO	$20.74	2
038	8210873	BUSHING	8210873 BUSHING (Valid from engine number 1910) BOCCOLA	-	2	Enquire
039	8301249	STUD BOLT	8301249 STUD BOLT (Valid from engine number 1910) PRIGIONIERO	$14.26 MSRP: ~~15.90~~ (10.3% off)	2
